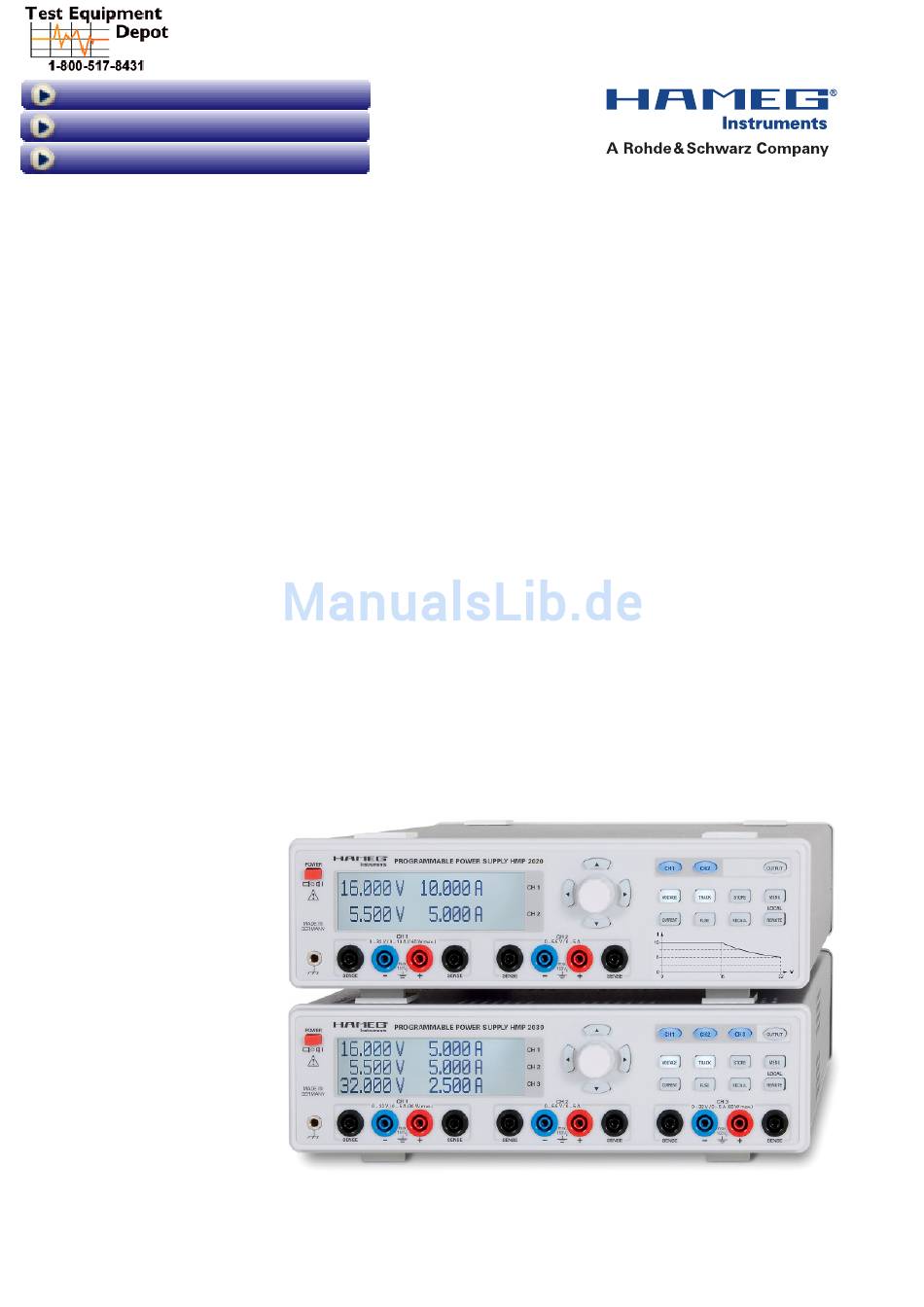

Melrose, MA 02176 Phone 781-665-1400 Toll Free 1-800-517-8431 Visit us at www.TestEquipmentDepot.com Back to the Hameg HMP2020 Page Back to the Hameg HMP2030 Page P o w e r s u p p l y H M P 2 0 2 0...
Die am Messgerät notwendigerweise angeschlossenen Mess- und Datenleitungen beeinflussen die Einhaltung der vorgegebenen Die HAMEG Instruments GmbH bescheinigt die Konformität für das Produkt Grenzwerte in erheblicher Weise. Die verwendeten Leitungen sind The HAMEG Instruments GmbH herewith declares conformity of the product HAMEG Instruments GmbH déclare la conformite du produit...
I n h a l t s v e r z e i c h n i s English Deutsch Konformitätserklärung Programmierbares Netzgerät HMP2020 / HMP2030 4 Technische Daten Wichtige Hinweise Auspacken Aufstellen des Gerätes Transport und Lagerung Sicherheitshinweise Bestimmungsgemäßer Betrieb Kühlung...
T e c h n i s c h e D a t e n Restwelligkeit (3Hz...100kHz): Programmierbares 2 Kanal Hochleistungsnetzgerät HMP2020 Spannung ‹ 150μV Programmierbares 3 Kanal Hochleistungsnetzgerät HMP2030 Strom ‹ 1mA Stabilisierung bei Last- Alle Angaben bei 23 °C nach einer Aufwärmzeit von 30 Minuten.
Schutzkleinspannung von 42 V überschrit- Bleiben die vorderen Gerätefüße eingeklappt (siehe Bild 2), ten werden. Beachten Sie, dass in diesem Fall das lässt sich das Gerät mit vielen weiteren HAMEG-Geräten sicher Berühren von spannungsführenden Teilen lebens- stapeln. gefährlich ist. Es wird vorausgesetzt, dass nur Personen, welche entsprechend ausgebildet und Werden mehrere Geräte aufeinander gestellt sitzen die einge-...
Tuch gereinigt werden. Kühlung Keinesfalls darf die Reinigungsfl üssigkeit in das Gerät gelangen. Die Anwendung anderer Reini- Die im HMP2020 / HMP2030 erzeugte Wärme wird durch ei- gungsmittel kann die Kunststoff- und Lackoberfl ä- STOP STOP nen temperaturgeregelten Lüfter nach außen geführt.
SENSE (4mm Sicherheitsbuchsen; 2 x pro Kanal) Kompensation der Zuleitungswiderstände Display (LCD) Anzeige der Parameter CH1 (4mm Sicherheitsbuchsen) Ausgänge Kanal 1; 0...32V / 5A (HMP2020 0...32V / 10A) Pfeiltasten (beleuchtet) Einstellen der Parameter CH2 (4mm Sicherheitsbuchsen) Ausgänge Kanal 2; 0...5,5V / 5A Drehgeber Drehknopf zum Einstellen und Bestätigen der Sollwerte...
32 V immer noch mit 2,5 A belastet werden können. Auf Kanal 2 werden 0 bis 5,5 V mit 5 A bereitgestellt. Wie das HMP2030 liefert das HMP2020 eine Leistung von 188 W, jedoch steht hier neben dem 5,5 V Kanal, zu Gunsten des doppelten Ausgangsstromes von bis zu 10 A, nur ein 32 V-Kanal zur Verfügung.
24 V Spannung ein maximaler Strom von 6,67 A beim HMP2020 bzw. 3,33 A beim HMP2030. Der jeweilige Kanal 2 (5,5 V / 5 A) ist sowohl beim HMP2020 als auch beim HMP2030 über den gesamten Spannungsbereich mit maximal 5 A belastbar.
Tasten STORE bzw. RECALL leuchten ihre LEDs weiß. Tracking-Funktion Aktivierung der Kanäle Mit Hilfe der Tracking-Funktion können mehrere Kanäle mit- Bei allen HAMEG-Netzgeräten lassen sich die Ausgangs- einander verknüpft werden. Man kann sowohl die Spannung als spannungen durch einen Tastdruck (OUTPUT ) ein- und auch die Strombegrenzung der einzelnen Kanäle gleichzeitig va-...
Arbitrary weiße LED. Diese Taste bleibt so lange aktiv, bis sie erneut be- Mit dem HMP2020 bzw. HMP2030 können frei programmierbare tätigt wird (kein automatisches Zurückspringen nach 5 sec). Signalformen erzeugt und innerhalb der vom Gerät vorgegeben Grenzwerte für Spannung und Strom des jeweiligen Kanals...
*STB? Read Status Byte Query (= gibt den Inhalt des Status der Gerätevorderseite bedient werden. Byte Register zurück) Zur externen Steuerung verwendetet das HMP2020 / 2030 die *TST? Self-Test Query (= Selbsttest-Abfrage: Fehlercode) Skriptsprache SCPI (= Standard Commands for Programmable Instruments).
R e m o t e - B e t r i e b Programmierbeispiele Arbitrary ARBitrary :STARt {1|2|3} Beispiel 1: Einstellen von Strom und Spannung :STOP {1|2|3} :TRANsfer {1|2|3} Um am Kanal 1 eine Spannung von 2 V und einen maximalen :SAVE {1|2|3} Strom von 0,5 A einzustellen, können Sie folgende Befehlsfolge :RESTore {1|2|3}...
Bedingung für diese Betriebsarten ist, dass die Netzgeräte für den Parallelbetrieb und/oder Serienbetrieb geeignet sind. Dies ist bei HAMEG-Netzgeräten der Fall. Die Ausgangsspannungen, welche kombiniert werden sollen, sind in der Regel voneinander unabhängig. Dabei können die Ausgänge eines oder mehrerer Netzgeräte miteinander verbunden werden.
G e n e r a l r e m a r k s r e g a r d i n g t h e C E m a r k i n g General remarks regarding the CE marking HAMEG measuring instruments comply with the EMI norms. Our tests for conformity are based upon the relevant norms. Whenever different maximum limits are optional HAMEG will select the most stringent ones.
Seite 19
T a b l e o f c o n t e n t Deutsch English Declaration of Conformity General remarks regarding the CE marking Programable Power Supply HMP2020 / HMP2030 Specifi cations Important hints Symbols Unpacking Positioning Transport Storage...

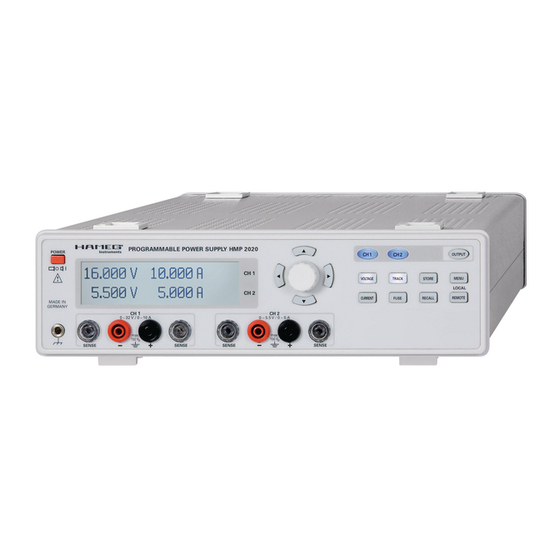

H i g h - P e r f o r m a n c e P o w e r S u p p l y H M P 2 0 2 0 / H M P 2 0 3 0 2 channel derivative HMP2020 HMP2020: 1 x 0...32V/0...10A 1 x 0...5.5V/0...5A HMP2030: 2 x 0...32V/0...5A 1 x 0...5.5V/0...5A 188W output power realized by intelligent power management Low residual ripple: ‹...
S p e c i f i c a t i o n s Residual ripple (3Hz...100kHz): Programmable 2 Channel High Performance Power Supply HMP2020 Voltage ‹ 150μV Programmable 3 Channel High Performance Power Supply HMP2030 Current ‹ 1mA Stabilisation at load All data valid at 23 °C after 30 minute warm-up...
If the feet are not used (picture 2) the instrument can be stacked – The line voltage of the instrument as shown on the type label safely with many other HAMEG instruments. must correspond to the line voltage used. –...
Only valid in EU countries In order to speed reclamations customers in EU countries may also contact HAMEG directly. Also, after the warranty expired, the HAMEG service will be at your disposal for any repairs (see RMA). Return material authorization (RMA): Prior to returning an instrument to HAMEG ask for a RMA number either by internet (http://www.hameg.com) or fax.
Cursor keys for shifting the cursor to the position to be CH1 (4 mm safety sockets) changed Output channel 1; 0...32V / 5A (HMP2020 0...32V / 10A) Rotary knob CH2 (4 mm safety sockets) Knob to adjust and activate the values Output channel 2;...
Short description HMP2020 / HMP2030 The programmable 2 resp. 3 channel high-performance po- wer supplies HMP2020 / HMP2030 are based on the classical transformer principle, utilising a high effi ciency electronic pre- The series HMP has a 2-lines (HMP2020) resp. 3-lines regulator and a secondary linear voltage regulator.
3rd digit from the right), the digits to right can be set to 10,000 V by pressing the knob. The HMP2020 can deliver a maximum power product V · I = 160 W per channel (CH1), the HMP2030 can deliver a maximum power STOP product of 80 W per channel (CH1 and CH3).
The same applies Only Critical Events to the currents if the CURRENT button was pressed. The HMP2020/2030 keeps the voltage resp. current differences –> Information between the channels constant unless any of the channels –>...
Seite 28
The option Beeper allows to switch the button sounds on/off. time are required, all standard waveforms like staircase, saw- Additionally, the HMP2020/2030 offers the possibility to emit tooth, sine wave etc. may be generated. sounds only in case of error; this signal can also be turned on/off.
*SAV {x} Save Command (= saves instrument setting {in x}) The HMP2020/2030 uses SCPI (= Standard Commands for Pro- *RCL {x} Recall Command (= recalls instrument settings {from grammable Instruments) for remote control. Remote control is possible via the built-in dual interface USB/RS-232 (options: Ethernet/USB, IEEE-488).
R e m o t e C o n t r o l Supported SCPI commands and data formats Arbitrary ARBitrary Selection of channel :STARt {1|2|3} (HMP2020: OUTPut3, OUT3 and :NSELect {3} not available) :STOP {1|2|3} :TRANsfer {1|2|3} INSTrument :SAVE {1|2|3} [:SELect] {OUTPut1 | OUTPut2 | OUTPut3 | OUT1 | OUT2 |OUT3}...
Example 3: Programming and outputting of a 3-step Arbitrary such operation; this is the case for all HAMEG power supplies. sequence Series resp. parallel connection increases the voltage resp. the current;...
