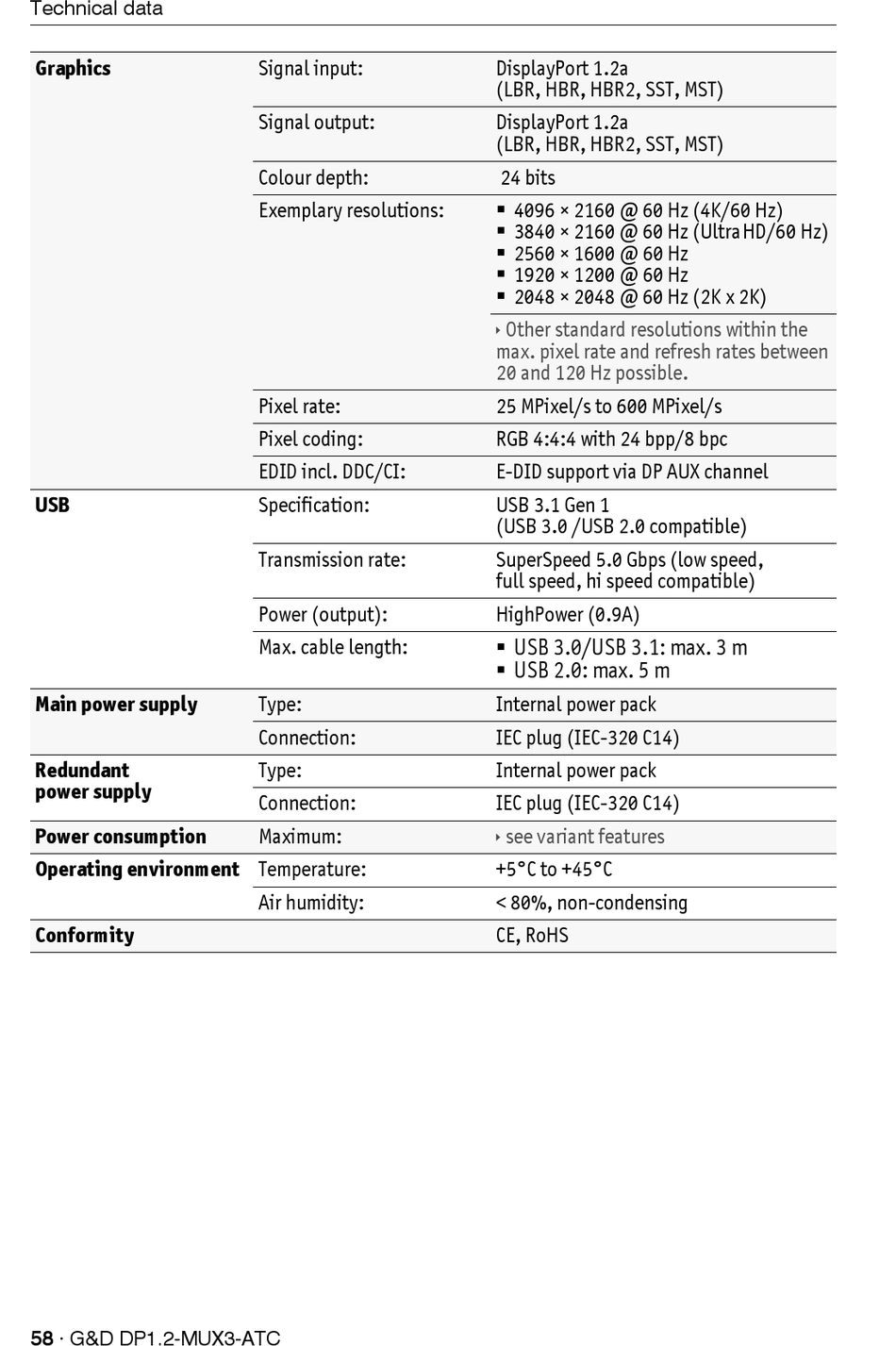

Technical data
Graphics
USB
Main power supply
Redundant
power supply
Power consumption
Operating environment Temperature:
Conformity
58 · G&D DP1.2-MUX3-ATC
Signal input:
Signal output:
Colour depth:
Exemplary resolutions:
Pixel rate:
Pixel coding:
EDID incl. DDC/CI:
Specification:
Transmission rate:
Power (output):
Max. cable length:
Type:
Connection:
Type:
Connection:
Maximum:
Air humidity:
DisplayPort 1.2a
(LBR, HBR, HBR2, SST, MST)
DisplayPort 1.2a
(LBR, HBR, HBR2, SST, MST)
24 bits
 4096 × 2160 @ 60 Hz (4K/60 Hz)
 3840 × 2160 @ 60 Hz (Ultra HD/60 Hz)
 2560 × 1600 @ 60 Hz
 1920 × 1200 @ 60 Hz
 2048 × 2048 @ 60 Hz (2K x 2K)
 Other standard resolutions within the
max. pixel rate and refresh rates between
20 and 120 Hz possible.
25 MPixel/s to 600 MPixel/s
RGB 4:4:4 with 24 bpp/8 bpc
E-DID support via DP AUX channel
USB 3.1 Gen 1
(USB 3.0 /USB 2.0 compatible)
SuperSpeed 5.0 Gbps (low speed,
full speed, hi speed compatible)
HighPower (0.9A)
 USB 3.0/USB 3.1: max. 3 m
 USB 2.0: max. 5 m
Internal power pack
IEC plug (IEC-320 C14)
Internal power pack
IEC plug (IEC-320 C14)
 see variant features
+5°C to +45°C
< 80%, non-condensing
CE, RoHS
