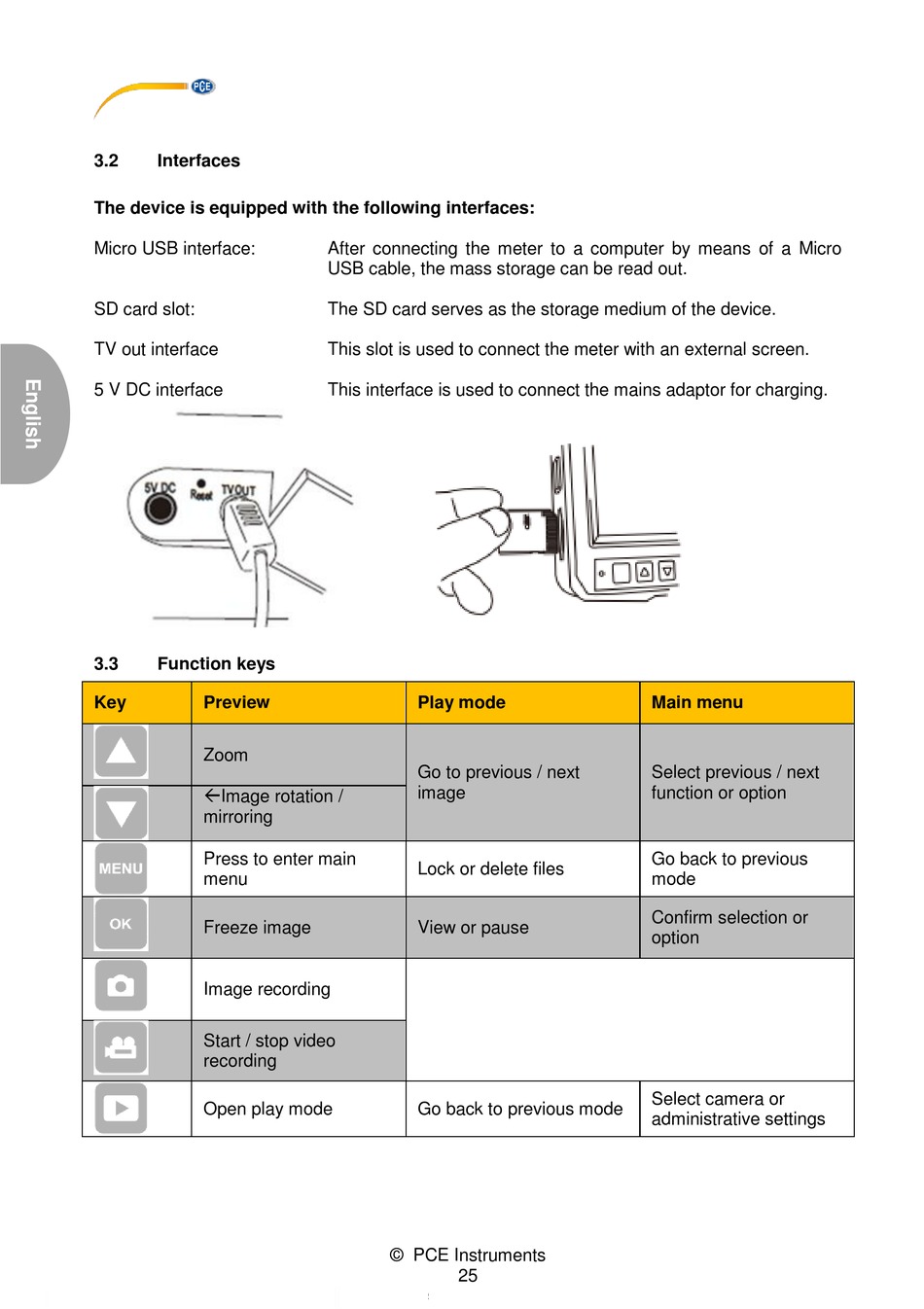

3.2

Interfaces

The device is equipped with the following interfaces:
Micro USB interface:
SD card slot:
TV out interface
5 V DC interface
3.3

Function keys

Key Preview
Zoom
Image rotation /
mirroring
Press to enter main
menu
Freeze image
Image recording
Start / stop video
recording
Open play mode
After connecting the meter to a computer by means of a Micro
USB cable, the mass storage can be read out.
The SD card serves as the storage medium of the device.
This slot is used to connect the meter with an external screen.
This interface is used to connect the mains adaptor for charging.
Play mode
Go to previous / next
Lock or delete files
View or pause
Go back to previous mode
© PCE Instruments
25
Main menu
Select previous / next
function or option
Go back to previous
mode
Confirm selection or
option
Select camera or
administrative settings
