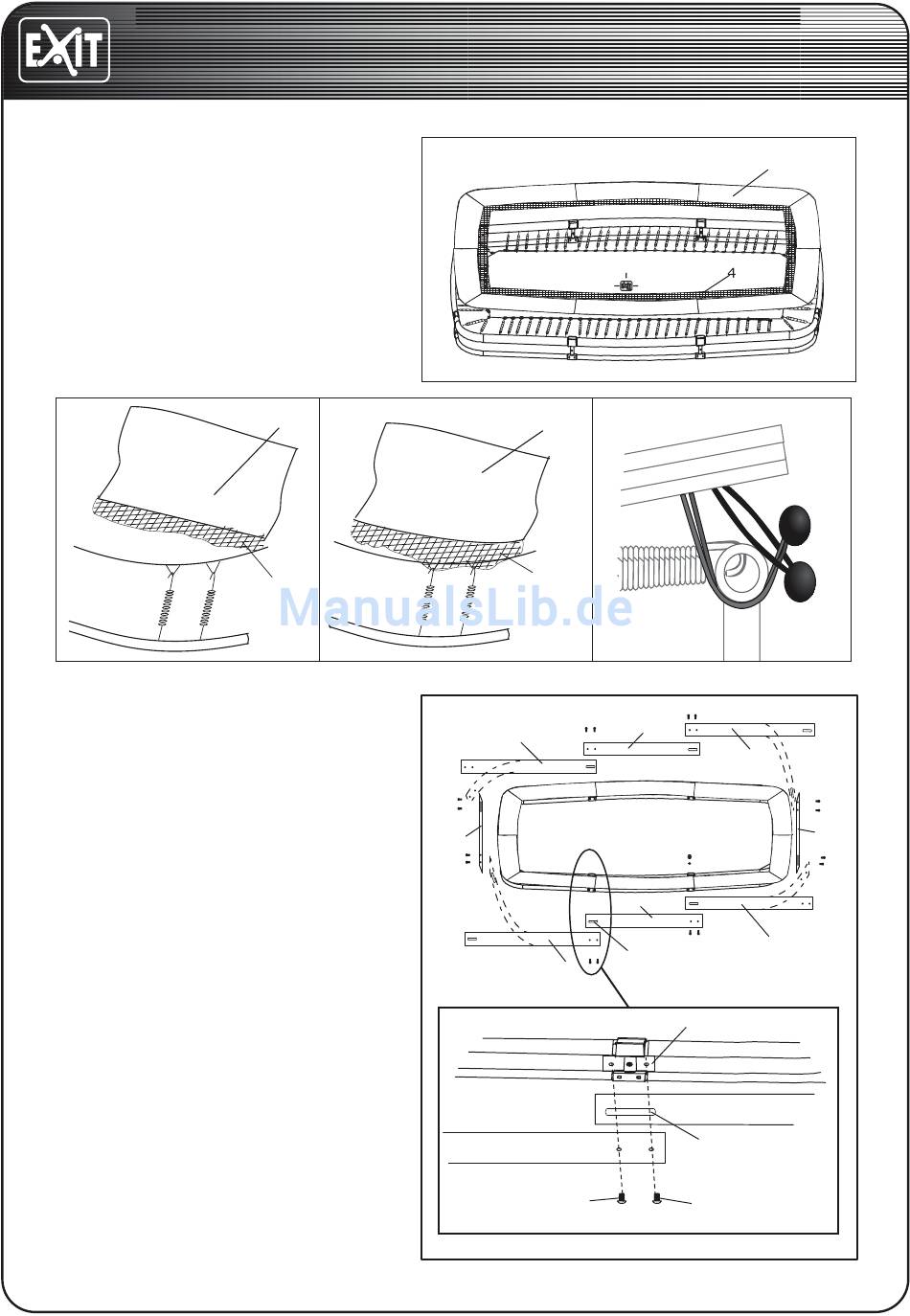

STEP 9
Lay the pad (8) on your trampoline.
Look from the underside of the pad.
The spring should be attached to
the net and pad as shown in inset
drawing A and B.
Attach pad to the frame using the
elastic straps with balls as shown in
inset drawing C.
drawing C.
A
STEP 10
Put the plastic plates (11) on the iron
plates (10) as shown.
Make sure that the long hole in
the plastic plate (11) is next to
the iron
plate (10).
Then secure with M8x20mm (14)
bolts as shown.
B
PAD back
net
9
PAD back
net
10
11-1
11-2
11-1
14
InTerra
Trampolines
8
C
11-2
11-1
11-2
11-1
Long hole
Langloch
Lange gat
Trou allongé
10
Long hole
Langloch
Lange gat
Trou allongé
14
11-2
