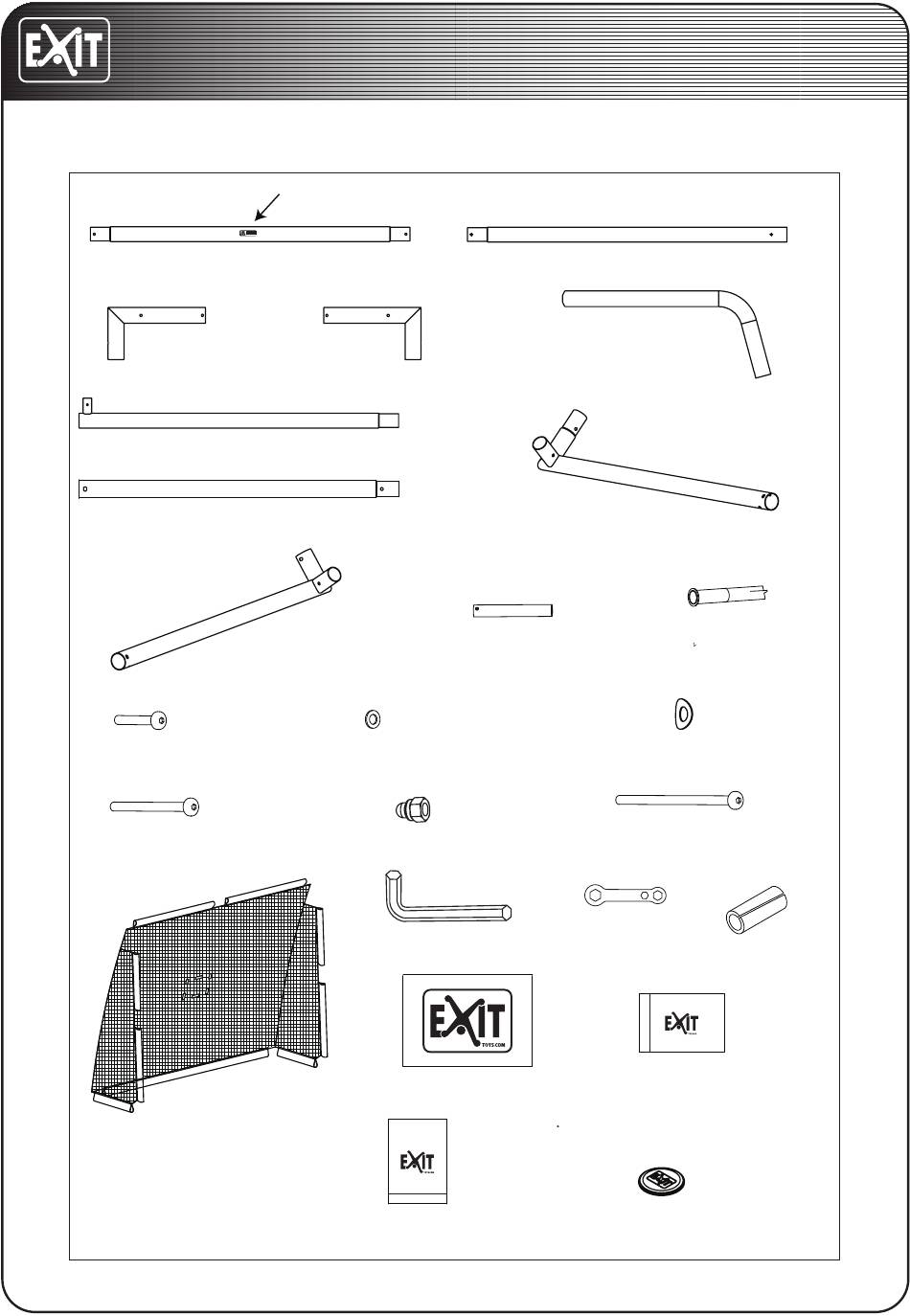

Components / Komponenten / Onderdelen / Composants
1 Top Cross beam A 1pc (Φ 76mm)
3 Upper Left L Tube 1pc
5 Front Side Tube 2pc
7 Back Side Tube 5pcs
9 Back Right Bottom Tube 1pc
12 M8x20mm Bolt 4pcs
16 M8x55mm Bolt 2pcs
15 Net 1pc
20
Serial nr. sticker
ITEM REFERENCE:
PO NUMBER:
PRODUCTION ID:
For questions and service, please
visit: www.dutchtoysgroup.com
MADE IN CHINA
4 Upper Right R Tube 1pc
( Φ 50mm)
13 M8 Spring Washer 4pcs
17 M8 Locknut 2pcs
19 Allen Wrench 1pc
23 Small Logo 1pc
2 Top Cross beam B 2pcs (Φ 76mm)
8 Back Left Bottom Tube 1pc
10 Anchor Tube 2pcs
20 Wrench
22 Big Logo 2pcs
Forza
Soccer goal
6 Back Top Bent Tube 2pcs
11 Ground Spike 2pcs
14 M8 Arc Washer 8pcs
18 M8x95mm Bolt 2pcs
1pc
21 Foam 3pcs
24 Small Logo 2pcs
25 Spare cap 2pcs
Werbung
Verwandte Anleitungen für EXIT Forza
Inhaltszusammenfassung für EXIT Forza
- Seite 1 Forza Soccer goal Components / Komponenten / Onderdelen / Composants Serial nr. sticker ITEM REFERENCE: PO NUMBER: PRODUCTION ID: For questions and service, please visit: www.dutchtoysgroup.com MADE IN CHINA 2 Top Cross beam B 2pcs (Φ 76mm) 1 Top Cross beam A 1pc (Φ 76mm)
- Seite 2 Forza Soccer goal Assembly steps / Montageschritte / Montage / Assemblée EN: Attach two Top Cross Beams B (2) to the Top Cross Beam A (1) with two M8X20mm Bolts (12), two Spring Washers (13) and two Arc Washers (14) as shown.
- Seite 3 Forza Soccer goal EN: Slip the step 2 assemblies into the side sleeves on the Net (15) as shown. DE: Schieben Sie die Bauteile aus Schritt 2 in die Seitenhüllen des Netzes (15) wie abgebildet. NL: Schuif de assemblages van stap 2 in de zijmoffen van het net (15) zoals weergegeven.
- Seite 4 Forza Soccer goal EN: Slip the Front Side Tube (5) into the side sleeves on the Net (15) as shown. Insert the Front Side Posts (5) into the Upper Left L Tube (3) and Upper Right L Tube (4) until the button snap into place as shown.
- Seite 5 Forza Soccer goal EN: Find the Back Bottom Left Corner (8) and Back Bottom Right Corner (9) marked with 8 and 9 respectively. Slip the Back Bottom Left Corner(8) into the Net (15) sleeve and press the Back Bottom Left Corner(8) onto the Front Side Post (5) until the button snaps into place as shown.
- Seite 6 Forza Soccer goal EN: Press the Back Side Tube(7) into two Back Side Tubes (7) until the push but- tons snap into place as shown. DE: Drücken Sie die unteren Kreuzstreben (7) in die zwei unteren Kreuzstreben (7) bis die Knöpfe einrasten, siehe Abildung.
- Seite 7 Forza Soccer goal EN: Insert the Back Top Bent Tube(6) into the Back Side Post(7) as shown. Make sure button snap into place. DE: Bauen Sie das gebogene Rohr hinten oben (6) in den rückwärtigen Seiten- pfosten (7) wie abgebildet. Vergewissern Sie sich, dass der Knopf einrastet.
- Seite 8 Forza Soccer goal Step 10 Schritt 10 Stap 10 l’Étape 10 - ‘Warning label’ outside! - ‘Warning label’ außen! - ‘Warning label’ buitenzijde! - ‘Warning label’ en dehors! 11. EN: Install three Foams (21) as shown. DE: Bringen Sie drei Schaumgummihülsen an (21) wie abgebildet.
- Seite 9 Forza Soccer goal 12. EN: Wrap the three Foams (21) with the Small Logos (23+24). Then apply Big Logo (22) on front and back side of Net (15). DE: Bringen Sie die drei Schaumstoffhülsen (21) mit die kleine Logos (23+ 24) an.
- Seite 10 Forza Soccer goal 13. EN: Insert Anchor Tube(10) into Front Bottom Corner(5) as shown. Make sure the button snap into place DE: Führen Sie das Ankerrohr (10) in die vordere untere Ecke ein (5) wie abge bildet. Vergewissern Sie sich, dass der Knopf einrastet.
- Seite 11 Forza Soccer goal 14. EN: Firstly select a flat surface of ground or grass , make sure the assembly unit is away at least 3m from other structures or obstructions. Then drive the two Ground Spikes(13) which match two Anchor Tubes(12) with steel or rub- ber mallet.
