STEP 6
STEP 6

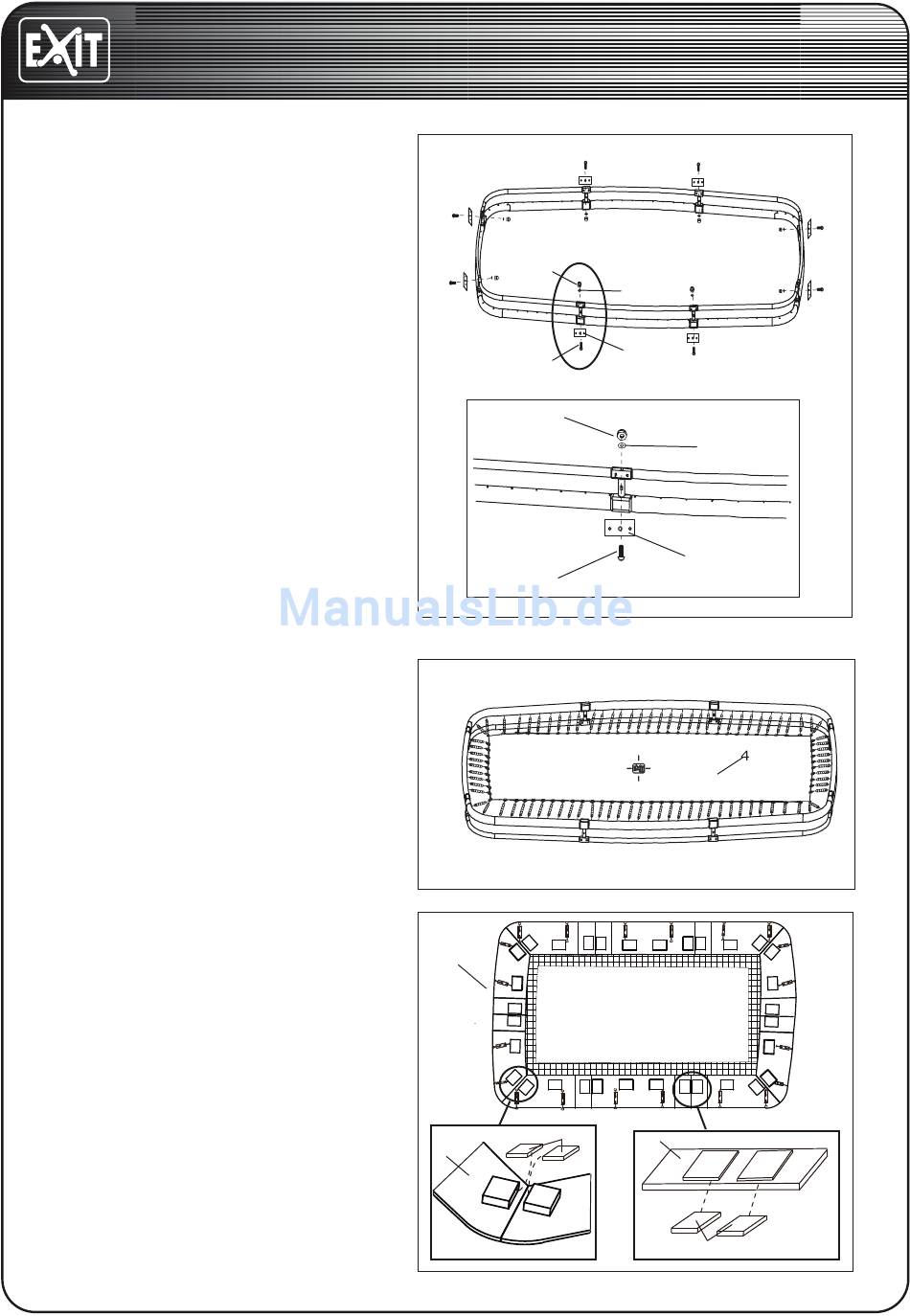

Put the iron plate (10) on the T-joints
Put the iron plate (10) on the T-joints
as shown.
as shown.
Secure the iron plate (10) with an
Secure the iron plate (10) with an
M8x50mm bolt (13), M8 washer (16)
M8x50mm bolt (13), M8 washer (16)
and M8 nut (15) as shown.
and M8 nut (15) as shown.
STEP 7
STEP 7
Reverse the trampoline so that the
Reverse the trampoline so that the
top side is facing up as shown.
top side is facing up as shown.
STEP 8
STEP 8
Insert the foam (9) into pad (8) as
Insert the foam (9) into pad (8) as
shown.
shown.
