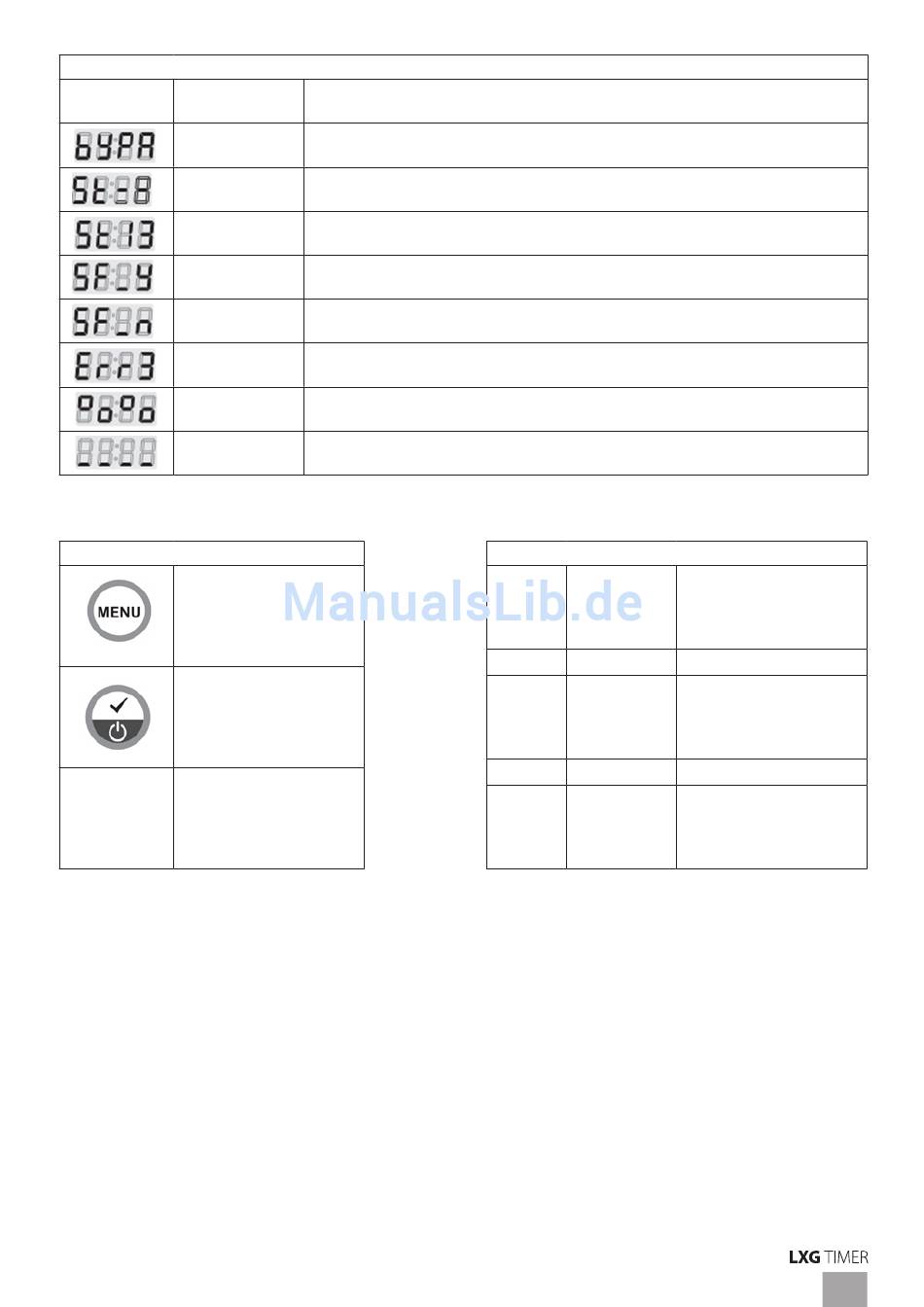

Table 1: Special Characters
Representative
Character
Letters
ByPA
ST--
ST13
SF_y
SF_n
Err3
Null
_ _ _ _
Table 2: Functions of Buttons and Knob
Press to enter the parame-
ter setting. Press to cancel
the modification of the
current item and enter next
item.
Press for parameter check.
Confirm setting and switch
to next item in the setting
state. Used as an ON or OFF
switch with long-press.
Adjusting knob Adjust the output wattage.
Adjust parameters in the
setting state.
Bypass
Keep the current Start Time.
Set the Start Time to be 13 hours after the current time.
There are 24 options from ST00 to ST23.
Sun Function – enable
Sun Function – disable
Error code. There are 6 error codes from Err3 to Err8.
Startup image after the ballast is powered on, or display after receiving remote
control signals.
Display in sequence, which indicates the ballast is automatically lighting again.
Meaning
Table 3: Functions of LED Indicator
ON RESET (Red)
(Green)
On
Blink
Off
Blink
Status
The HID lamp is ON.
The HID lamp is ON, and
the Sunrise or Sunset
phase of the Sun Function
is operating.
The HID lamp is OFF.
The Start Time is changed,
and the parameters of the
Timer should be reset.
