Bedienungs- und Installationsanleitung
Installation- and Operation Instruction
Messgaskühler / Sample Gas Coolers PKE-5xx

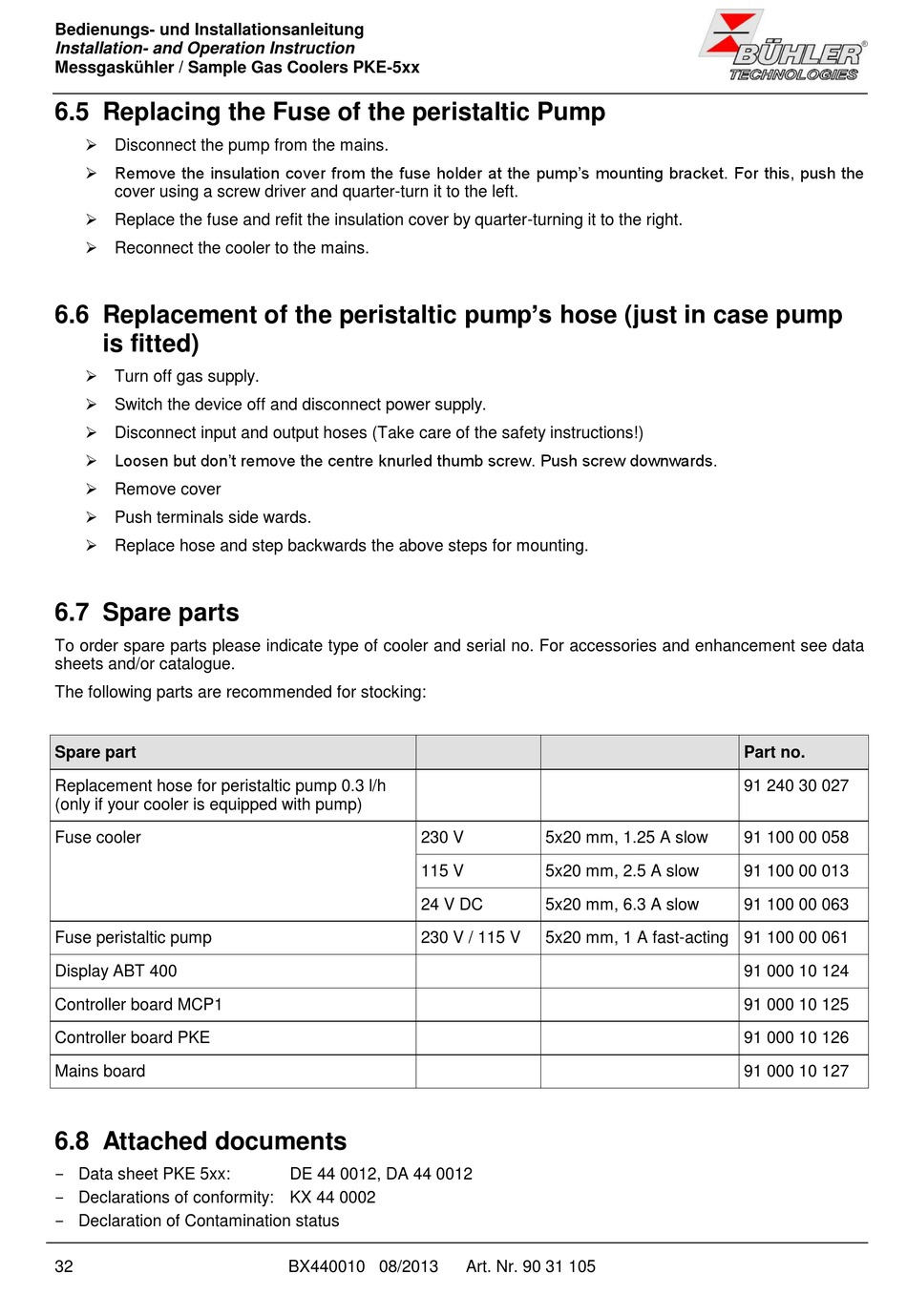

6.5 Replacing the Fuse of the peristaltic Pump

 Disconnect the pump from the mains.
 Remove the insulation cover from the fuse holder at the pump's mounting bracket. For this, push the
cover using a screw driver and quarter-turn it to the left.
 Replace the fuse and refit the insulation cover by quarter-turning it to the right.
 Reconnect the cooler to the mains.
6.6 Replacement of the peristaltic pump's hose (just in case pump
is fitted)
 Turn off gas supply.
 Switch the device off and disconnect power supply.
 Disconnect input and output hoses (Take care of the safety instructions!)
 Loosen but don't remove the centre knurled thumb screw. Push screw downwards.
 Remove cover
 Push terminals side wards.
 Replace hose and step backwards the above steps for mounting.

6.7 Spare parts

To order spare parts please indicate type of cooler and serial no. For accessories and enhancement see data
sheets and/or catalogue.
The following parts are recommended for stocking:
Spare part
Replacement hose for peristaltic pump 0.3 l/h
(only if your cooler is equipped with pump)
Fuse cooler
Fuse peristaltic pump
Display ABT 400
Controller board MCP1
Controller board PKE
Mains board

6.8 Attached documents

- Data sheet PKE 5xx:
- Declarations of conformity: KX 44 0002
- Declaration of Contamination status
32
230 V
115 V
24 V DC
230 V / 115 V
DE 44 0012, DA 44 0012
BX440010 08/2013
5x20 mm, 1.25 A slow
5x20 mm, 2.5 A slow
5x20 mm, 6.3 A slow
5x20 mm, 1 A fast-acting 91 100 00 061
Art. Nr. 90 31 105
Part no.
91 240 30 027
91 100 00 058
91 100 00 013
91 100 00 063
91 000 10 124
91 000 10 125
91 000 10 126
91 000 10 127
