4.2.1 Overview of the Menu Items

Display of current temperature and operating state
Current Temperature
Display: xxxx
Main Menu
j
Peltier Gas Cooler
Display:
j
Global Settings
Display:
Exit Main Menu
Display:

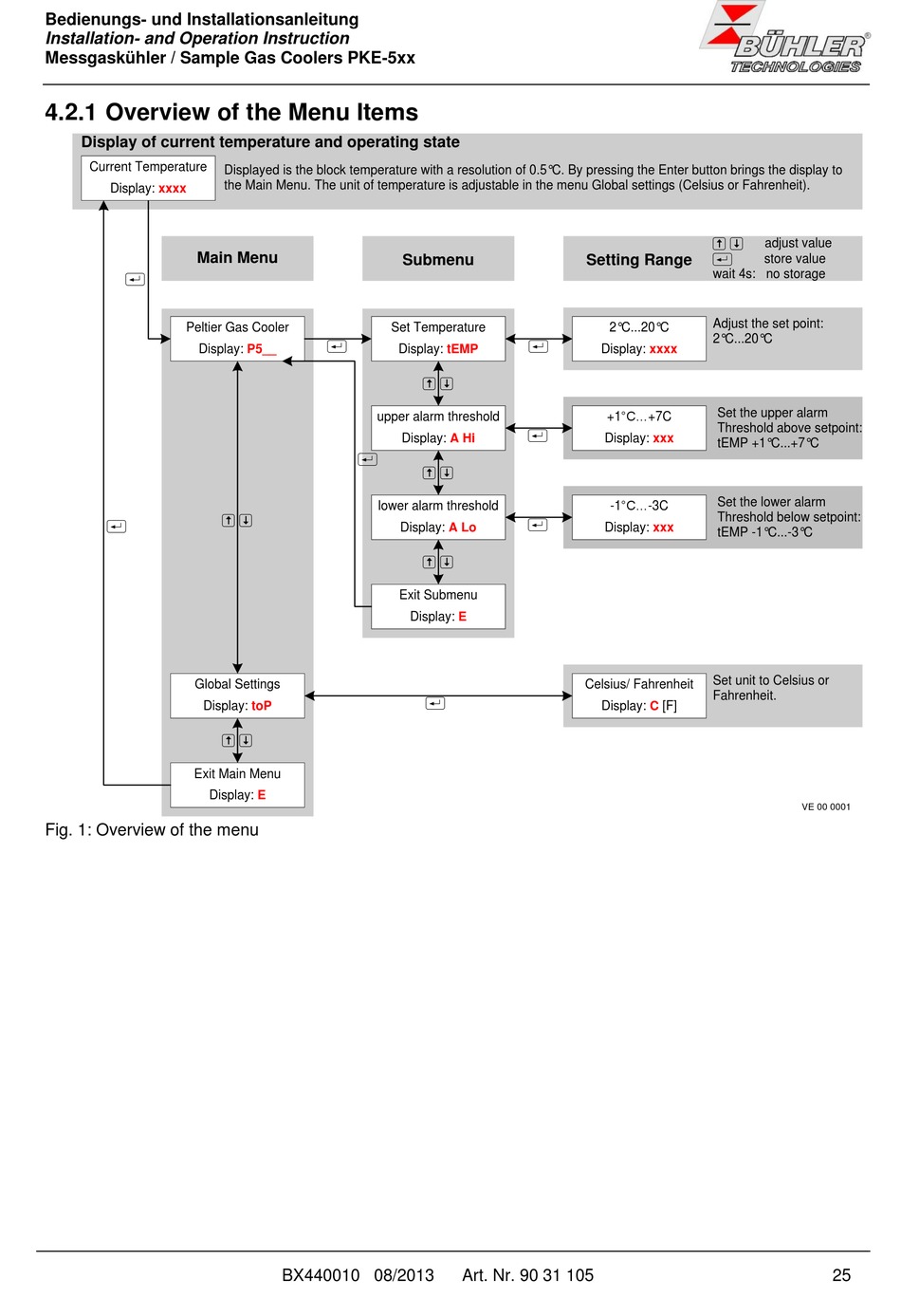

Fig. 1: Overview of the menu
Displayed is the block temperature with a resolution of 0.5°C. By pressing the Enter button brings the display to
the Main Menu. The unit of temperature is adjustable in the menu Global settings (Celsius or Fahrenheit).
Set Temperature
j
P5__
upper alarm threshold
j
lower alarm threshold
t b
toP
t b
E
BX440010 08/2013
Submenu
j
Display: tEMP
t b
j
Display: A Hi
t b
j
Display: A Lo
t b
Exit Submenu
Display: E
j
Art. Nr. 90 31 105
t b
j
Setting Range
wait 4s: no storage
Adjust the set point:
2°C...20°C
2°C...20°C
Display: xxxx
Set the upper alarm
+1°C...+7C
Threshold above setpoint:
Display: xxx
tEMP +1°C...+7°C
Set the lower alarm
-1°C...-3C
Threshold below setpoint:
Display: xxx
tEMP -1°C...-3°C
Set unit to Celsius or
Celsius/ Fahrenheit
Fahrenheit.
Display: C [F]
adjust value
store value
VE 00 0001
