Installation
The panel is supplied separately in a cardbox and fixed to a
wall with mounting
brackets
wall lengthwise or widthwise; mounting the panel on the ceiling is

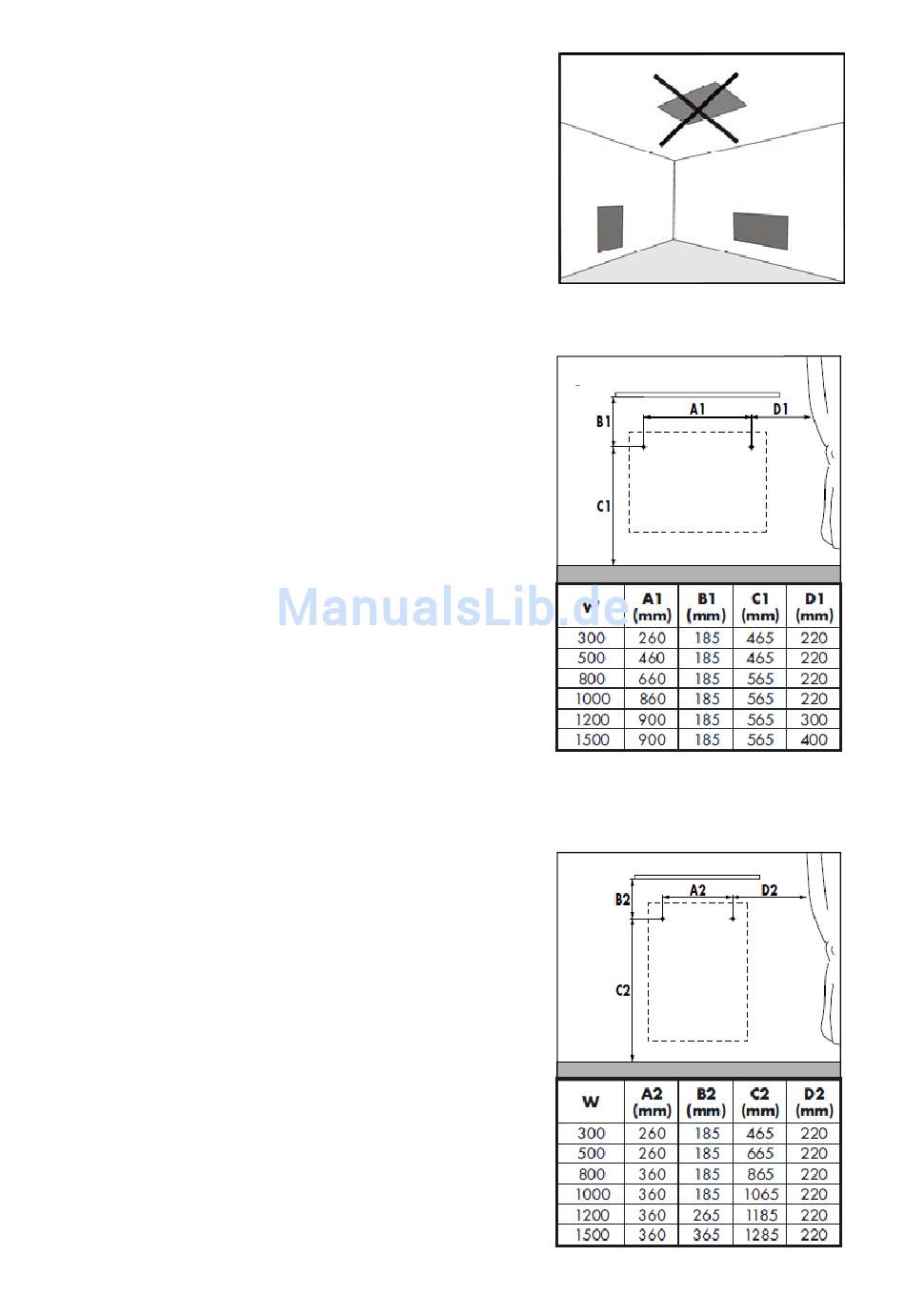

forbidden (fig. 4). Drill the holes for the mounting brackets ac-
cording to fig. 5 (lengthwise panel installation) or fig. 6
(widthwise installation).
Dimensions A are distances between the drilled holes and di-
mensions B, C and D are minimum distances of the holes from
surrounding objects.
Fasten the brackets with screws into dowels (not included). The
dowels should be selected in respect of a wall material type
and higher weight of panel. Hang the panel on the mounting
brackets with two upper screws (according to suspension) and
fasten firmly to the brackets with nuts with washer. For hori-
zontal suspension, nuts are screwed on two screws of the
panel.
Besides the mounting brackets, the panel includes adjustment
rests fastened to the lower screws of the panel and adjusting
the distance between the panel and the wall. Fig. 3 shows a
side view of the panel suspended on the wall.
Electric Installation
The panel is equipped with a two- core cable.
Power supply — 1/N 230 V / 50 Hz
Colour indication of wires: Phase —
(working) conductor —
The power supply cable is connected to the wall junction box,
see Fig. 3. If power supply cable is damaged, then it may only
be replaced by manufacturer or its service technician or similarly
qualified person in order to prevent dangerous situation.
Panel Control
The panel control by external room thermostat equipped with a
switch is recommended (e.g. Fenix Therm 100).
The room thermostat maintains set air temperature in a room.
Moreover, the panel is equipped with a limiting thermostat which
regulates the panel surface temperature not to exceed 110 °C.
8
The panel can be installed on the
.
brown
, Central
blue
.
fig. 4
fig. 5
fig. 6
