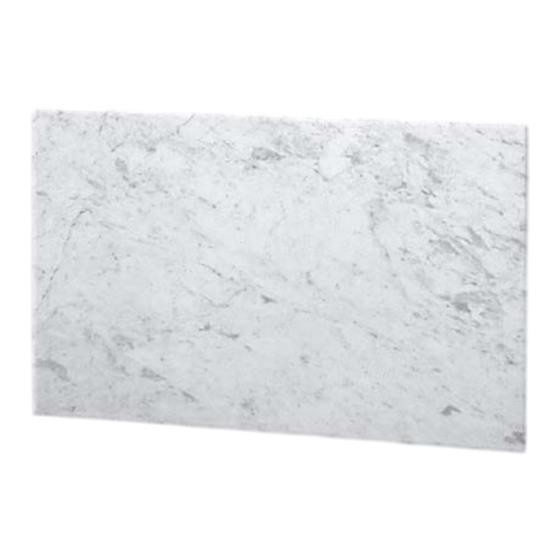

Fenix MR 300 Bedienungsanleitung

Fenix MR 300 Bedienungsanleitung

Vorschau ausblenden Andere Handbücher für MR 300:

Werbung

Verfügbare Sprachen

Verfügbare Sprachen

PANEL MR
MRAMOROVÉ/GRANITOVÉ PANELY
MARBLE/GRANITE PANELS
MARMORPLATTEN/GRANITPLATTEN
.
Návod k montáži a použití
Instructions for installation and use
Bedienungsanleitung
N069/R12 (05.03.15)
CZ
GB
D

Werbung

Inhaltsverzeichnis
loading

Inhaltszusammenfassung für Fenix MR 300

  • Seite 1 N069/R12 (05.03.15) PANEL MR MRAMOROVÉ/GRANITOVÉ PANELY MARBLE/GRANITE PANELS MARMORPLATTEN/GRANITPLATTEN Návod k montáži a použití Instructions for installation and use Bedienungsanleitung...
  • Seite 2: Důležitá Upozornění

    Důležitá upozornění Jakékoliv zásahy do panelu smí provádět pouze kvalifikovaná osoba. Před zahájením ta- • kové práce musí být panel vypnut od zdroje proudu. Jelikož se jedná o přírodní materiál, který je křehký, je nutné dbát zvýšené opatrnosti při přepravě, manipulaci a montáži. Mramorovou desku panelu je možné...
  • Seite 3 POZOR! Aby se zamezilo popraskání mramorové desky vlivem rychlého náběhu teploty, je nutno při prvním uvedení do provozu dodržet tento časový náběhový cyklus: 20 minut ZAPNUTO 30 minut VYPNUTO 30 minut ZAPNUTO 30 minut VYPNUTO Teprve po dokončení tohoto cyklu je možno panel provozovat v normálním teplotním režimu.
  • Seite 4: Návod K Montáži A Použití

    Návod k montáži a použití Montážní návod Instalace, elektrické připojení a první uvedení do provozu smí provádět obr.1 pracovník s odpovídající kvalifikací (dle vyhl. 50/78 Sb.). Odstupy Odstup spodní hrany spotřebiče od podlahy nesmí být menší než 50 mm. Odstup na stranu, např. k nábytku, musí být minimálně 100 mm a smě- Rozměry jsou v mm obr.2 rem nahoru minimálně...
  • Seite 5: Elektrická Instalace

    Montáž obr. 4 Panel je zabalen samostatně v kartonové krabici a k uchycení na stěnu slouží upevňovací konzoly.Panel lze na stěnu instalovat na délku nebo šířku, stropní montáž je zakázána (obr. 4). Otvory pro konzoly vyvrtejte dle obr. 5 (instalace na délku panelu) nebo dle obr.
  • Seite 6: Technické Údaje

    Technické údaje Max. Rozměr (mm) Hmotnost Výkon Proud Napětí Třída povrch. Krytí DxŠxH (kg) teplota MR 300 500x500x30 1,30 MR 500 700x500x30 2,17 MR 800 900x600x30 3,48 230 V 110 °C IP 44 MR 1000 1100x600x30 1000 4,35 MR 1200...
  • Seite 7: Záruční Podmínky

    Záruční podmínky Dodavatel poskytuje na výrobky záruku 24 měsíců od data prodeje. Záruka se nevztahuje na vady způsobené dopravou, nedbalou manipulací a neodbornou montáží. Záruka se rovněž nevztahu- je na neodborný zásah do panelu a na běžné opotřebení výrobku. Potvrzení o prodeji:......................... Datum prodeje:...........Výrobní...
  • Seite 8: Important Safety Instructions

    Important Safety Instructions Only a qualified person is allowed to work on the panel. The panel must be disconnected • from the power supply before starting any work. Because the natural marble is a material, it is necessary to be careful during transport, manipulation and montage. The marble slab may only be cleaned with detergents which will not impair the surface quality (polish).
  • Seite 9 ATTENTION! For first marble panel start-up is necessary to keep a starting temperature time as is mentioned in table below in order to prevent marble stone desk cracking by reason of very fast temperature increasing: 20 minutes Switch-ON 30 minutes Switch-OFF 30 minutes Switch-ON 30 minutes Switch-OFF fig.
  • Seite 10: Installation Instructions

    Instructions for installation and use Installation Instructions Installation, electrical connection and the first use should only be perfor- med by a qualified person. Fig.1 Distances The distance from the lower edge of the appliance to the floor should not be less than 50 mm. There should also be a distance of at least 100 mm at the sides, e.g.
  • Seite 11: Electric Installation

    Installation fig. 4 The panel is supplied separately in a cardbox and fixed to a wall with mounting brackets The panel can be installed on the wall lengthwise or widthwise; mount- ing the panel on the ceiling is forbidden (fig. 4). Drill the holes for the mounting brackets according to fig.
  • Seite 12: Panel Removal

    Technical Data Electric Max. Dimensions (mm) Weight Output TYPE current Voltage Class surface Protection LxWxD (kg) temp. MR 300 500x500x30 1,30 MR 500 700x500x30 2,17 MR 800 900x600x30 3,48 230 V 110 °C IP 44 MR 1000 1100x600x30 1000 4,35...
  • Seite 13: Guarantee Conditions

    Guarantee Conditions The guarantee is valid for 24 months from a date of sale. The guarantee does not cover any appliances which defects are due to transport, negligent manipulation and/or faulty instal- lation. Moreover, the guarantee does not cover any unskilled intervention in the panel and ordinary wear and tear of the product.
  • Seite 14: Wichtige Sicherheitsanweisungen

    Wichtige Sicherheitsanweisungen Jegliche Eingriffe in den Heizkörper dürfen nur von einer qualifizierten Person vorgenom- • men werden. Vor Beginn einer solchen Arbeit muss der Heizkörper von der Stromquelle abgeschaltet sein. Da es sich um natürliches Material handelt, das zerbrechlich ist, ist be- im Transport, bei der Handhabung und Montage auf größte Vorsicht zu achten.
  • Seite 15 BEMERKUNG – Einige Teile dieses Produkts können sehr heiß werden und Brandwun- den verursachen. Besondere Acht ist bei Anwesenheit von Kindern und Behinderten zu geben. ZUR BEACHTUNG! Es ist notwendig, nach dem schnellen Temperaturanstieg die Marmorrisse zu verhüten, beim ersten Inbetriebsetzung diesen Zyklus halten: 20 minuten EIN 30 minuten AUS 30 minuten EIN...
  • Seite 16 Bedienungsanleitung Montageanleitung Installation, Elektroanschluss und erste Inbetriebnahme darf nur ein Fachmann mit entsprechender Qualifikation vornehmen. Abb.1 Abstände Der Abstand der unteren Kante des Elektrogeräts zum Fußboden darf nicht geringer als 50 mm sein. Die Abstände in mm angeführt. Abb.2 Der Seitenabstand, z.B. zu Möbeln und der Abstand nach oben muss mindestens 100 mm betragen (siehe Abb.
  • Seite 17: Elektroinstallation

    Montage Der Heizkörper ist einzeln in einem Karton verpackt. Zu seiner Befesti- Abb. 4 gung an die Wand dienen Befestigungskonsolen Die Platte kann an die Wand längs- oder querliegend installiert werden, die Deckenmon- tage ist verboten (Abb. 4). Die Löcher für Konsolen sind gemäß der Abb.5 (längsliegende Platte) oder gemäß...
  • Seite 18: Demontage Des Heizkörpers

    Desweiteren ist das Versorgungskabel aus der Anschlussdose an der Wand zu entfernen. Technische Angaben Max. Abmessungen Gewicht Leistung Strom Spannung Klasse Oberflächen- Bedecknung (mm) (LxBxT) (Kg) temp. MR 300 500x500x30 1,30 MR 500 700x500x30 2,17 MR 800 900x600x30 3,48 230V 110°C IP44 MR 1000 1100x600x30...
  • Seite 19: Garantiebedingungen

    Garantiebedingungen Der Auftragnehmer gewährleistet für das Erzeugnis eine Garantie von 24 Monaten ab Verkaufsdatum. Die Garantie erstreckt sich nicht auf Mängel, die durch Transport, nachlässige Manipulation und nichtfachgemäße Montage verursacht wurden. Die Garantie bezieht sich auch nicht auf nicht-fachgemäße Eingriffe in den Heizkörper und auf normale Abnutzung des Erzeugnis- ses.
  • Seite 20 Fenix Trading s.r.o. Slezska 2 790 01 Jesenik Czech Republic tel.: +420 584 495 302 fax: +420 584 495 303 e-mail: fenix@fenixgroup.cz www.fenixgroup.cz...
