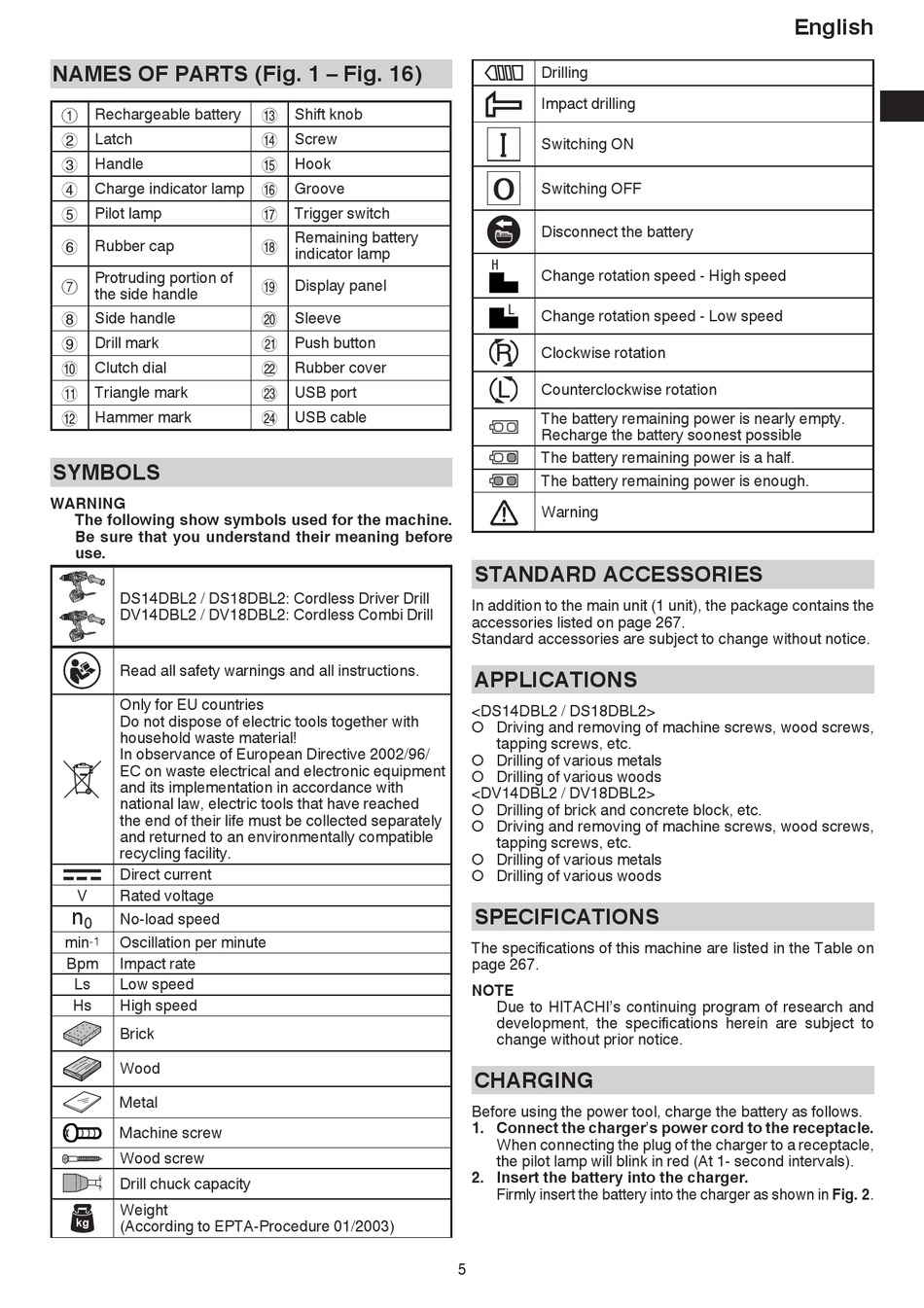

NAMES OF PARTS (Fig. 1 – Fig. 16)
Rechargeable battery
1
Latch
2
Handle
3
Charge indicator lamp
4
Pilot lamp
5
Rubber cap
6
Protruding portion of
7
the side handle
Side handle
8
Drill mark
9
Clutch dial
0
Triangle mark
!
Hammer mark
@
SYMBOLS
WARNING
The following show symbols used for the machine.
Be sure that you understand their meaning before
use.
DS14DBL2 / DS18DBL2: Cordless Driver Drill
DV14DBL2 / DV18DBL2: Cordless Combi Drill
Read all safety warnings and all instructions.
Only for EU countries
Do not dispose of electric tools together with
household waste material!
In observance of European Directive 2002/96/
EC on waste electrical and electronic equipment
and its implementation in accordance with
national law, electric tools that have reached
the end of their life must be collected separately
and returned to an environmentally compatible
recycling facility.
Direct current
V Rated voltage
n
No-load speed
0
min Oscillation per minute
-1
Bpm Impact rate
Ls Low speed
Hs High speed
Brick
Wood
Metal
Machine screw
Wood screw
Drill chuck capacity
Weight
(According to EPTA-Procedure 01/2003)
kg
Shift knob
#
Screw
$
Hook
%
Groove
^
Trigger switch
&
Remaining battery
*
indicator lamp
Display panel
(
Sleeve
)
Push button
q
Rubber cover
w
USB port
e
USB cable
r
Drilling
Impact drilling
Switching ON
Switching OFF
Disconnect the battery
Change rotation speed - High speed
Change rotation speed - Low speed
Clockwise rotation
Counterclockwise rotation
The battery remaining power is nearly empty.
Recharge the battery soonest possible
The battery remaining power is a half.
The battery remaining power is enough.
Warning

STANDARD ACCESSORIES

In addition to the main unit (1 unit), the package contains the
accessories listed on page 267.
Standard accessories are subject to change without notice.
APPLICATIONS
<DS14DBL2 / DS18DBL2>
○ Driving and removing of machine screws, wood screws,
tapping screws, etc.
○ Drilling of various metals
○ Drilling of various woods
<DV14DBL2 / DV18DBL2>
○ Drilling of brick and concrete block, etc.
○ Driving and removing of machine screws, wood screws,
tapping screws, etc.
○ Drilling of various metals
○ Drilling of various woods
SPECIFICATIONS
The specifi cations of this machine are listed in the Table on
page 267.
NOTE
Due to HITACHI's continuing program of research and
development, the specifi cations herein are subject to
change without prior notice.
CHARGING
Before using the power tool, charge the battery as follows.
1. Connect the charger's power cord to the receptacle.
When connecting the plug of the charger to a receptacle,
the pilot lamp will blink in red (At 1- second intervals).
2. Insert the battery into the charger.
Firmly insert the battery into the charger as shown in Fig. 2.
5
English
