2.3 Assembly instructions of the control box

2.3.1 Find a place inside the vehicle that is easily accessible to the user, preferably near
the TV or inside a cupboard.
2.3.2 Position and fasten the wall box inside this accessible and ventilated area so that

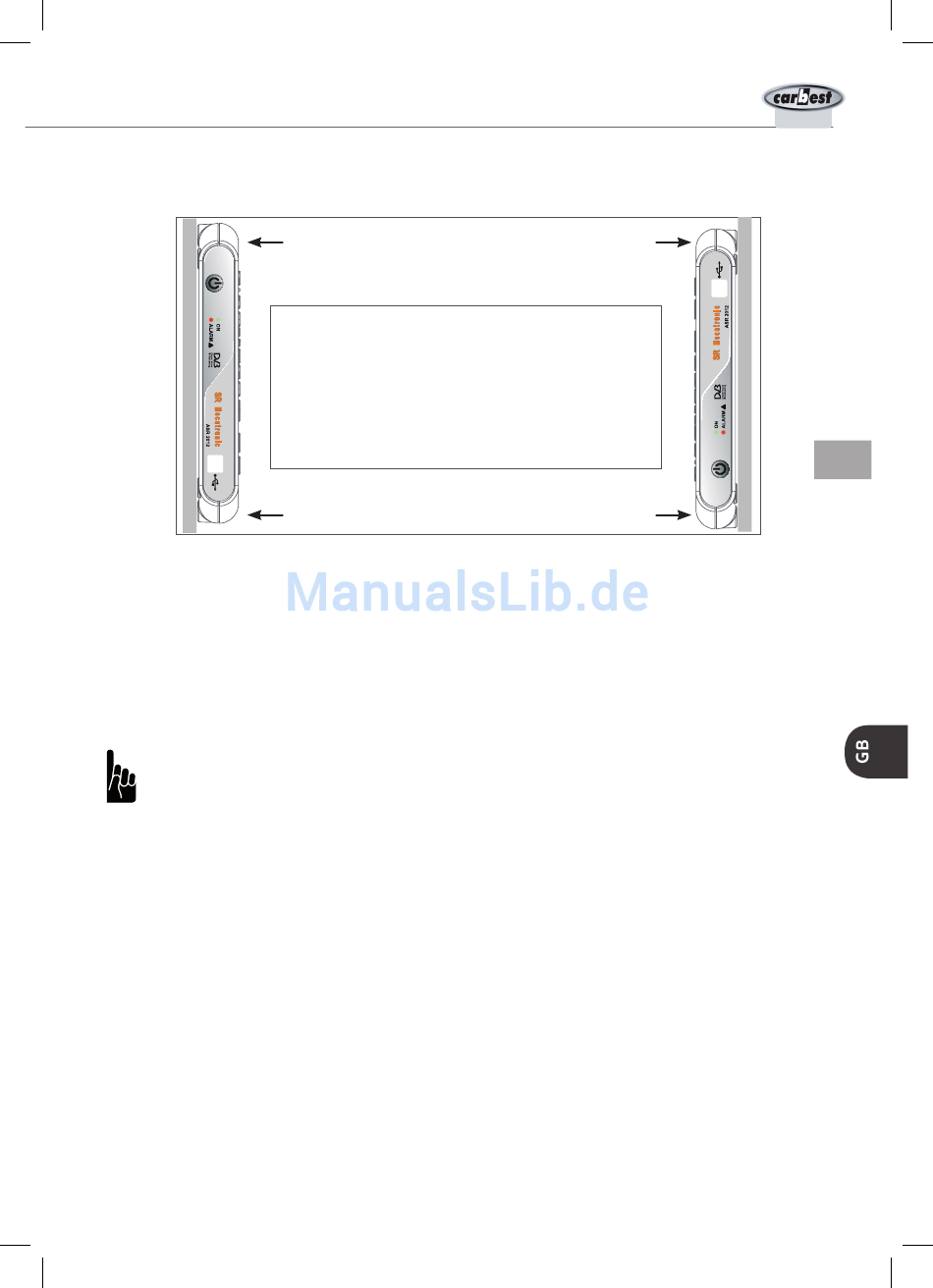

any service operations can be performed easily and quickly (see picture 5).
CAUTION! The ventilation of the device is important because it avoids overheating
of the components.
2.4 Assembly instructions of the internal control unit for LED and Plus versions
2.4.1 Find an area inside the vehicle that is easily accessible and visible from a distance
less than 2 metres from the control box (i.e. the length of the connection cable between
the box and control panel).
2.4.2 Use a hole cutter with a 15mm diameter to make a through hole at the point se-
lected for the assembly (see drawing 6).
2.4.3 Run the RJ45 patch cat6 connection cable supplied with the satellite dish and
connect the box to the internal control unit (see drawing7/7.1).
It is advisable to fasten the box
onto the wall with two screws. It
should be fastened vertically and
positioned either to the right or
left of the TV.
