i A

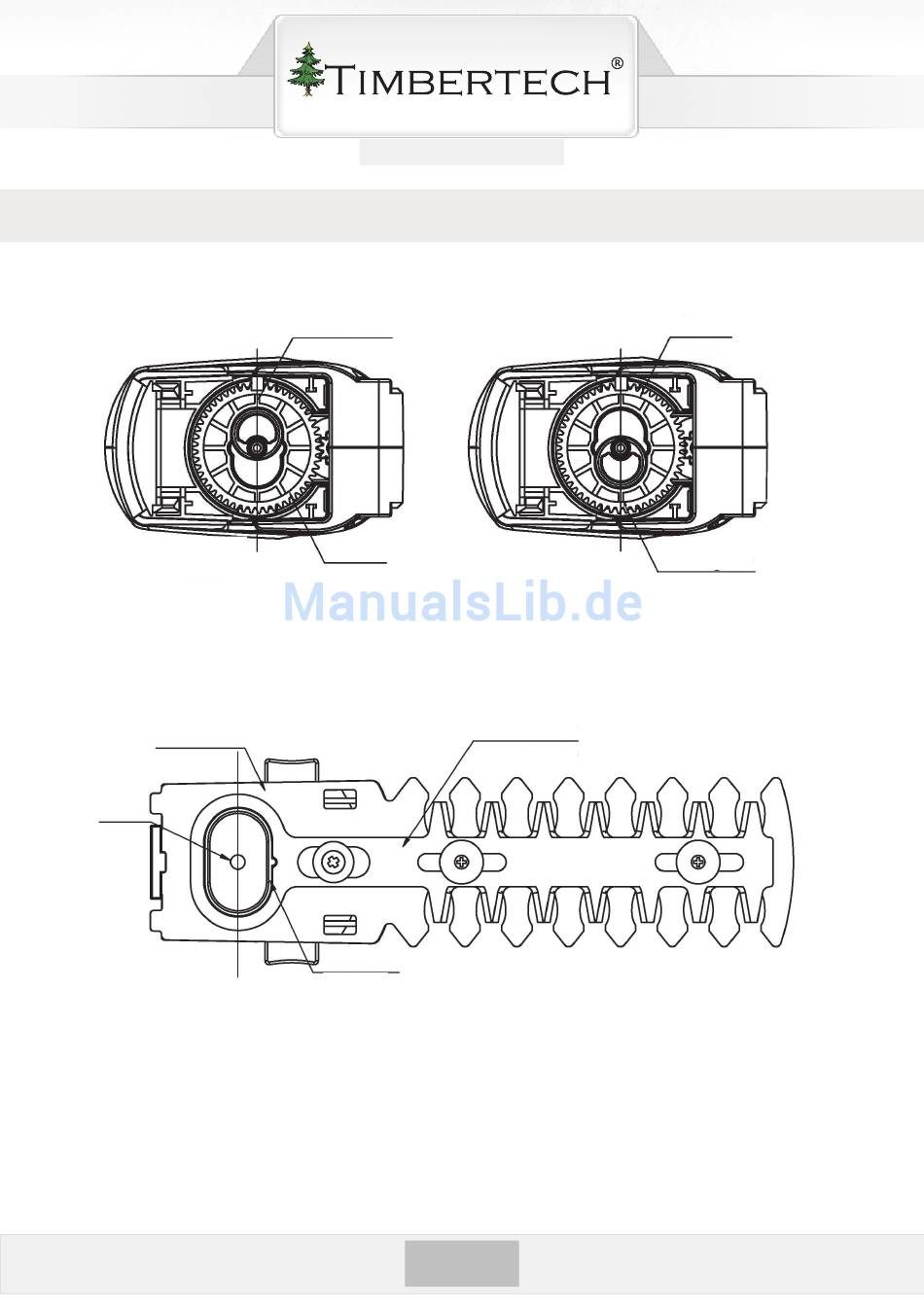

nstAlling the BlAde ssemBly
Gearwheel
Gearwheel
Marking rib
Marking rib
Middle line
Middle line
Turn the gearwheel so that the metal cam of the gear unit is orientated in line with the middle
line. (See the above figures).
Upper blade
Bottom blade
Hole
Middle line
Metal ring
Move the upper blade of the blade assembly so that the middle line of the metal ring aligns exactly
with the centre of the hole. (see the above figure)
Guide the bottom edge of the blade assembly into the corresponding locking holes of the gear
unit. Then press the two protrusions of the gear unit into the locking holes of the blade assembly.
Make sure that the cam of the gearwheel snaps into the metal ring entirely.
