PERATING AND AINTENANCE NSTRUCTION ANUAL

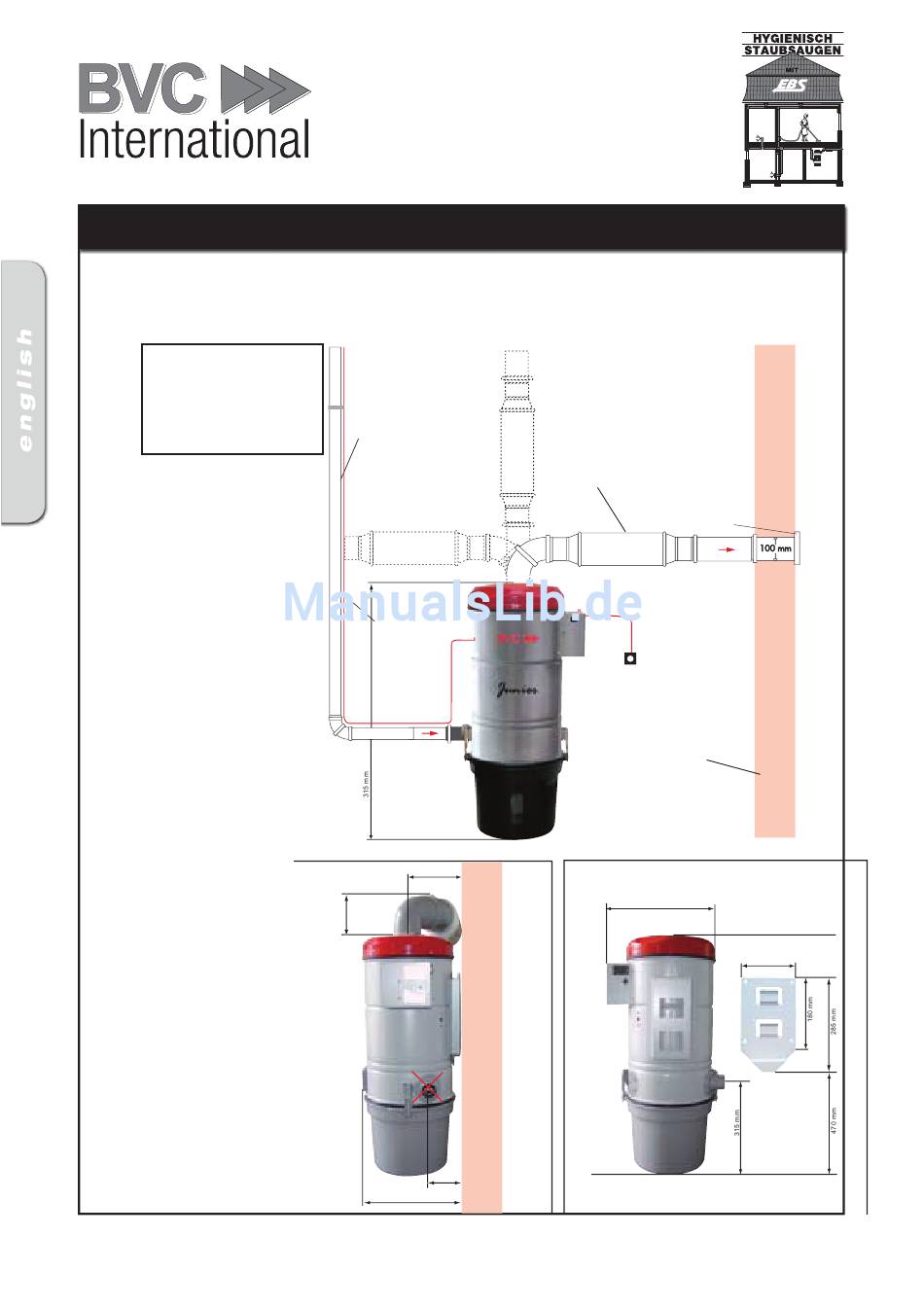

Installation of the BVC exhaust air muffler
ATTENTION: Water must not get in-
to the waste air outlet in the ounter
wall. For safety reasons water
must be prevented from entering
the room where the motor is. A life-
threatening electric shock could
suction pipe
be the result.
Muffler
Exhausting pipe 100 mm
Exhaust air grating
220 - 240 Volt
24 Volt Control lead
outer wall
170 mm
410 mm
ca. 180-230 mm
180 mm
Mounting panel
105 mm
330 mm
