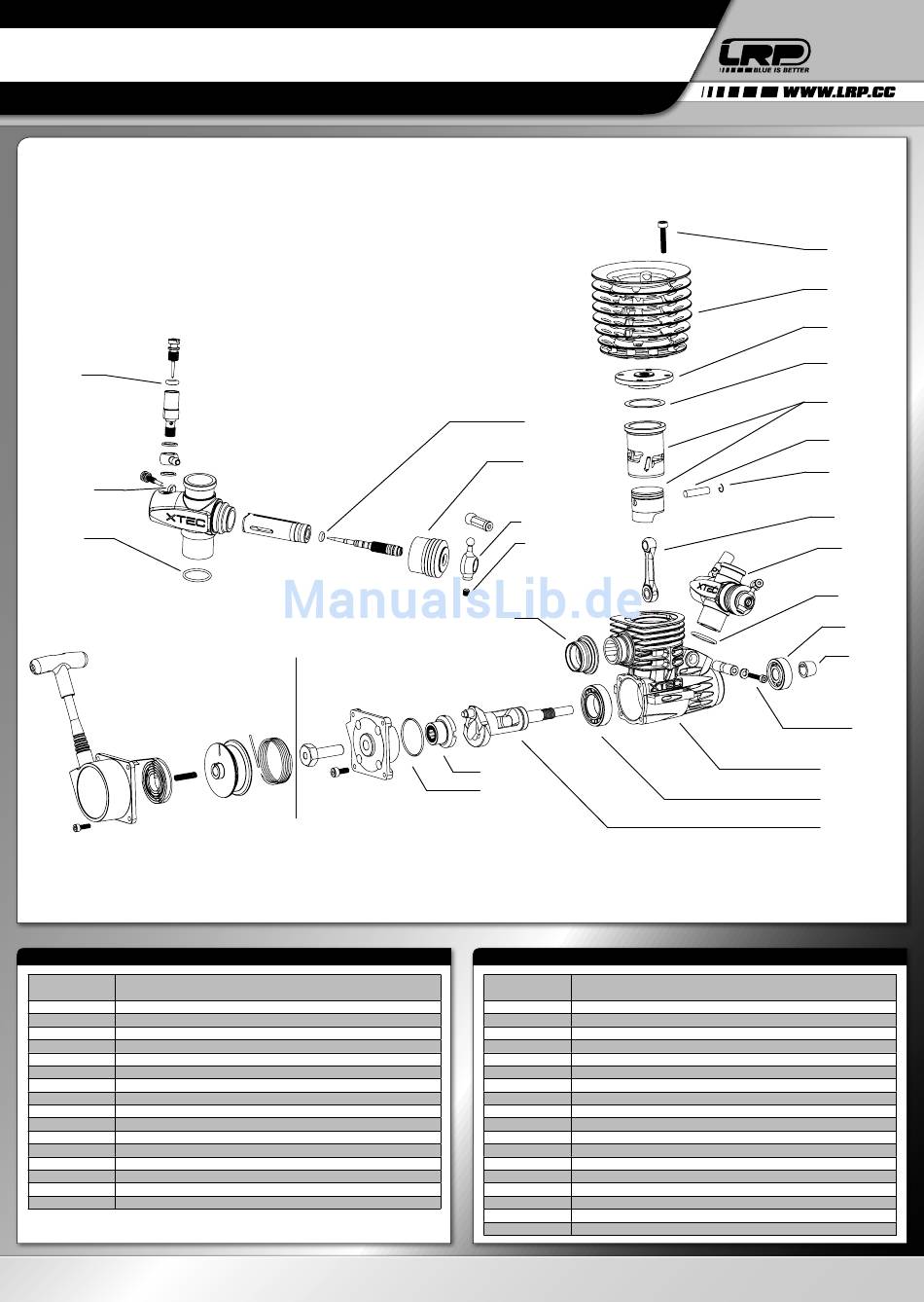

Explosion Drawing - LRP ZR.30 SPEC.4 PULLSTART Gebrauchsanweisung

EXPLOSION DRAWING

38592
38592
38592
PULLSTARTER FRONT PARTS
(Linkage) No. 38556
ERSATZTEILE / SPARE PARTS
Best Nr. Artikelbezeichnung
Order No. spare part description
38535 ZR.30 Spec.4 Pullstart - Crankcase
38530 ZR.30 Spec.4 Pullstart - Cylinder Head incl. Screws
38532 ZR.30 Spec.4 Pullstart - 9mm Slide Carburetor
38556 ZR.30 Spec.4 Pullstart - Pullstarter Front Parts (Linkage)
38557 ZR.30 Spec.4 Pullstart - Pullstarter Rear Parts (Backplate)
38570 ZR.30 Spec.4 Pullstart - Burn Room
38572 ZR.30 Spec.4 Pullstart - 5+1 Port Piston & Sleeve Set
38573 ZR.30 Spec.4 Pullstart - Conrod
38574 ZR.30 Spec.4 Pullstart - Wrist Pin & Clips
38575 ZR.30 Spec.4 Pullstart - Crankshaft
38576 ZR.30 Spec.4 Pullstart - Ball Bearing Front (7x19x6mm)
38577 ZR.30 Spec.4 Pullstart - Ball Bearing Rear (14x25.4x6mm)
38590 ZR.30 Spec.4 Pullstart - Headshims (4 pcs.)
38591 ZR.30 Spec.4 Pullstart - Various Parts Bag
38592 ZR.30 Spec.4 Pullstart - O-Ring Set
38491 ZR.30 Spec.4 Pullstart - Pullstart One-Way Bearing
MA00266 © LRP electronic GmbH 2016
CARBURETOR
38532 contains
complete carburetor
PULLSTARTER REAR PARTS
(Backplate) No. 38557
38592
38592
38591
38591
38592
38491
38592
TUNINGTEILE / OPTION PARTS
Best Nr. Artikelbezeichnung
Order No. spare part description
36565 LRP High-Flow 2-Stage Oval airfilter set
36590 LRP Highflow airfilter oil
37910 LRP After-Run oil
35031 LRP Platinum / Iridium glow plug, Standard R3
35041 LRP Platinum / Iridium glow plug, Standard R4
35051 LRP Platinum / Iridium glow plug, Standard R5
35061 LRP Platinum / Iridium glow plug, Standard R6
36255 LRP Screamer-93 1/8 Offroad exhaust system
37501 LRP Competition Buggy Clutch Set .21 Off-Road
37101 LRP Competition Starterbox Spec. 2
430350 LRP VTEC LiPo 2200 RX-Pack small Hump - RX-only - 7.4V
430351 LRP VTEC LiPo 2500 RX-Pack 2/3A Straight - RX-only - 7.4V
430352 LRP VTEC LiPo 2700 RX-Pack 2/3A Hump - RX-only - 7.4V
45010 Heavy-Duty BEC 6V/10A (LiPo RX-Regulator)
430300 LRP VTEC LiFePo 1700 RX-Pack 2/3A Straight - RX-only - 6.6V
430301 LRP VTEC LiFePo 2000 RX-Pack 2/3A Hump - RX-only - 6.6V
430600 LRP XTEC RX-pack Hump 2/3A NiMH - BEC - 6.0V - 1600mAh
430602 LRP XTEC RX-pack Straight 2/3A NiMH - BEC - 6.0V - 1600mAh
LRP electronic GmbH
Hanfwiesenstraße 15
73614 Schorndorf
Deutschland
38530
38530
38570
38590
38572
38574
38574
38573
38532
38592
38576
38591
38591
38535
38577
38575
