Explosionszeichnung / Explosion Drawing; Ersatzteile / Spare Parts - LRP ZR.32 SPEC.2 Gebrauchsanweisung

MA00259

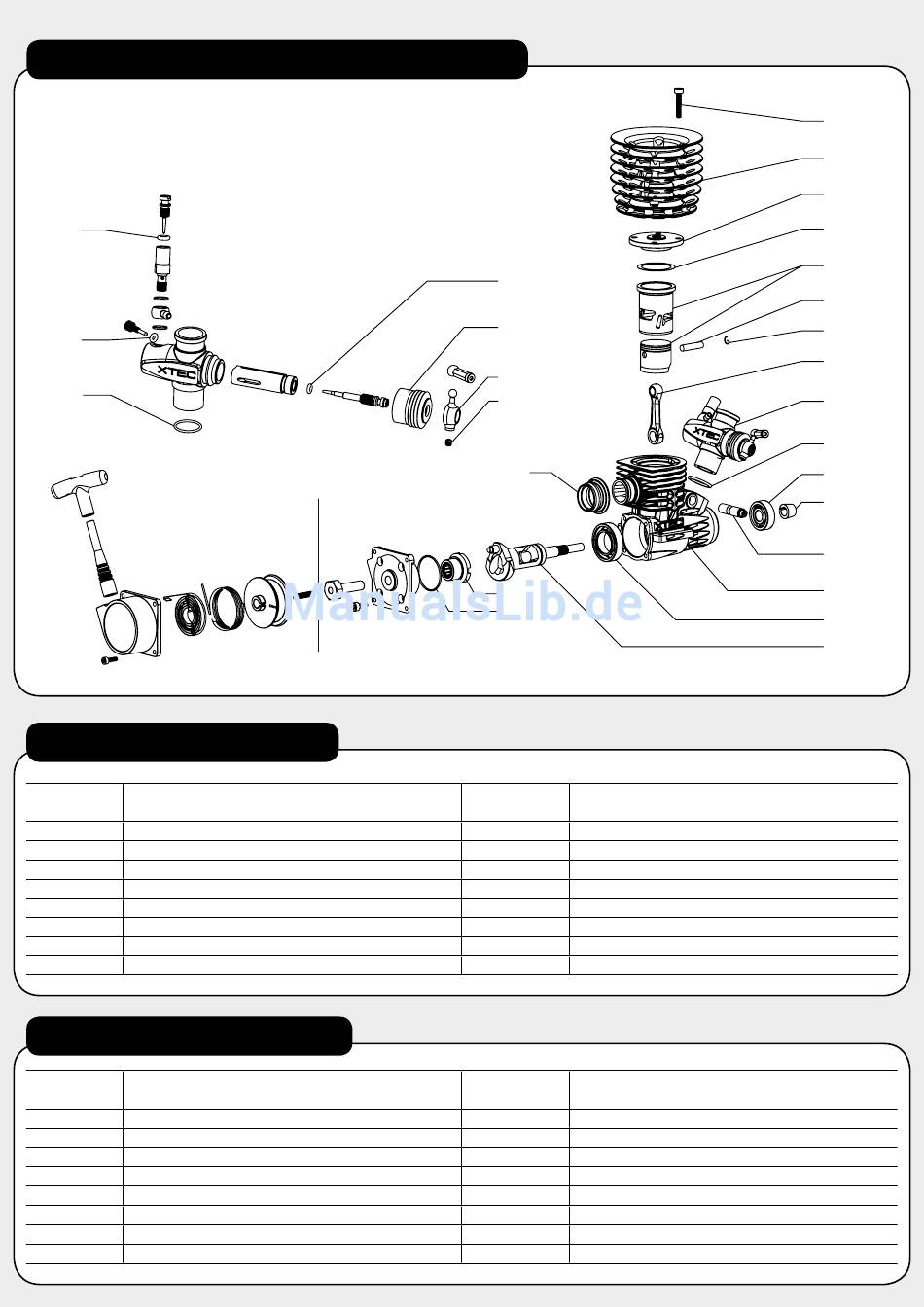

1. EXPLOSIONSZEICHNUNG / EXPLOSION DRAWING

No. 32820
LRP ZR.32 Spec.2 Pullstart
38592
38592
38592
PULLSTARTER FRONT PARTS
(Linkage) No. 38556

2. ERSATZTEILE / SPARE PARTS

BEST. NR. Artikelbezeichnung
ORDER NO. spare part description
38558 ZR.32 Spec.2 - Crankcase
38559 ZR.32 Spec.2 - Cylinder Head incl. Screws
38554 ZR.32 Spec.2 - 9mm Slide Carburetor
38556 ZR.32 Spec.2 - Pullstarter Front Parts (Linkage)
38557 ZR.32 Spec.2 - Pullstarter Rear Parts (Backplate)
38578 ZR.32 Spec.2 - Burn Room
38579 ZR.32 Spec.2 - 5+1 Port Piston & Sleeve Set
38573 ZR.32 Spec.2 - Conrod
3. TUNINGTEILE / OPTION PARTS
BEST. NR. Artikelbezeichnung
ORDER NO. spare part description
36565 LRP High-Flow 2-Stage Oval airfilter set
36590 LRP Highflow airfilter oil
37910 LRP After-Run oil
35051 LRP Platinum / Iridium Glowplug Std. R5 Med/Cold
35061 LRP Platinum / Iridium Glowplug Std. R6 Cold
36261 LRP Monstertruck Hi-Performance pipe set
37506 LRP Competition Truggy Clutch Set .32 Off-Road
37101 LRP Competition Starterbox Spec. 2
CARBURETOR
38554 contains
complete carburetor
PULLSTARTER REAR PARTS
(Backplate) No. 38557
38592
38592
38591
38591
38592
38491
38592
BEST. NR. Artikelbezeichnung
ORDER NO. spare part description
38574 ZR.32 Spec.2 - Wrist Pin & Clips
38575 ZR.32 Spec.2 - Crankshaft
38576 ZR.32 Spec.2 - Ball Bearing Front (7x19x6mm)
38577 ZR.32 Spec.2 - Ball Bearing Rear (14x25.4x6mm)
38593 ZR.32 Spec.2 - Headshims (4 pcs.)
38591 ZR.32 Spec.2 - Various Parts Bag
38592 ZR.32 Spec.2 - O-Ring Set
38491 ZR 32 Spec.2 - Pullstart One-Way Bearing
BEST. NR. Artikelbezeichnung
ORDER NO. spare part description
79911 LiPo Receiver Battery 1700 | 7.4V - AAA Hump
79921 LiPo Receiver Battery 2400 | 7.4V - 2/3A Straight
79926 LiPo Receiver Battery 2500 | 7.4V - 2/3A Hump
45010 Heavy-Duty BEC 6V/10A (LiPo RX-Regulator)
79950 LiFePo Receiver Battery 1600 | 6.6V - 2/3A Straight
79955 LiFePo Receiver Battery 2000 | 6.6V - 2/3A Hump
65860 HiVolt+ RX-Pack 1600 - Hump
65861 HiVolt+ RX-Pack 1600 - Straight
