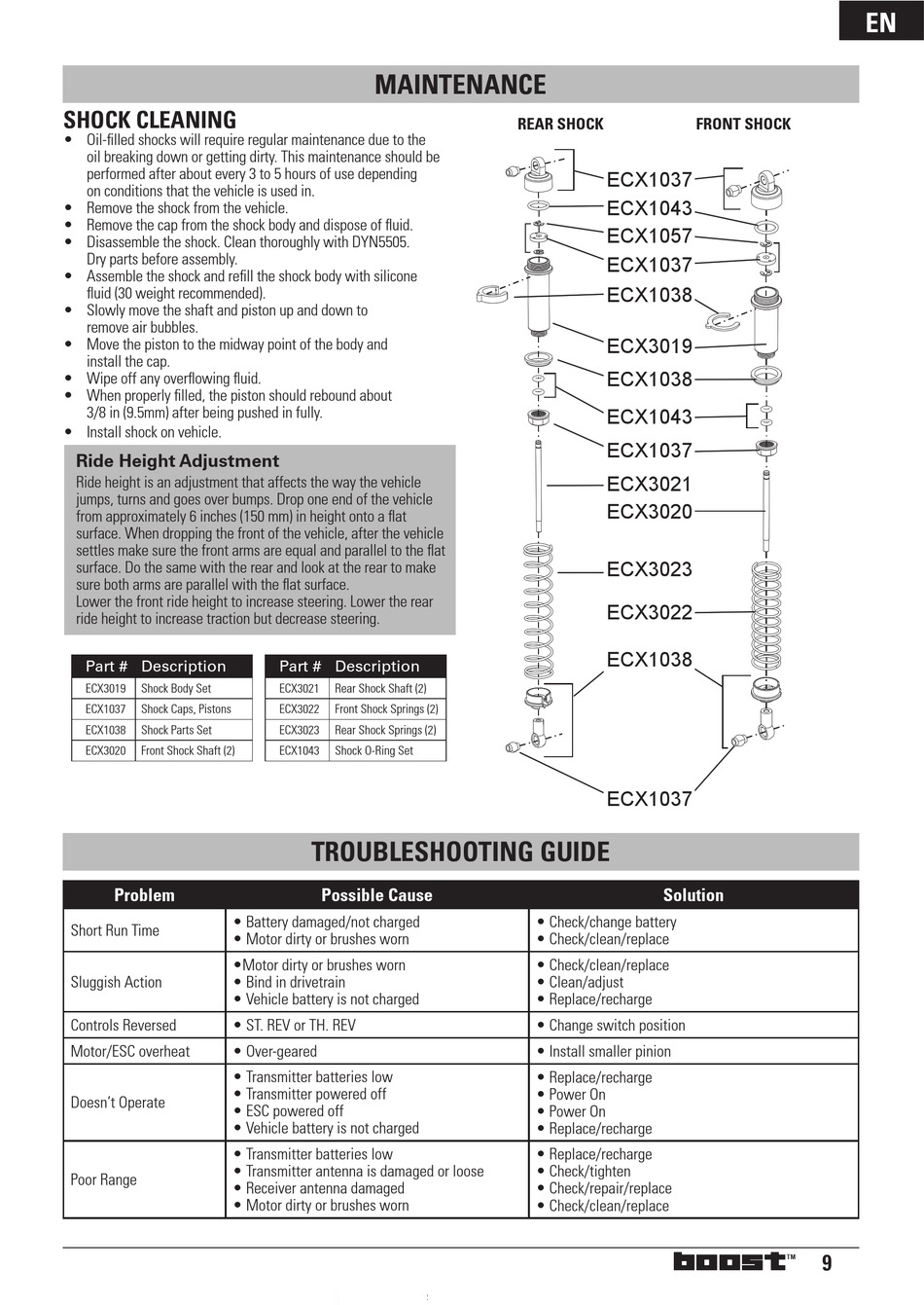

ShOCk CLEANING
•
Oil-filled shocks will require regular maintenance due to the
oil breaking down or getting dirty. This maintenance should be
performed after about every 3 to 5 hours of use depending
on conditions that the vehicle is used in.
•
Remove the shock from the vehicle.
•
Remove the cap from the shock body and dispose of fluid.
•
Disassemble the shock. Clean thoroughly with DYN5505.
Dry parts before assembly.
•
Assemble the shock and refill the shock body with silicone
fluid (30 weight recommended).
•
Slowly move the shaft and piston up and down to
remove air bubbles.
•
Move the piston to the midway point of the body and
install the cap.
•
Wipe off any overflowing fluid.
•
When properly filled, the piston should rebound about
3/8 in (9.5mm) after being pushed in fully.
•
Install shock on vehicle.
ride height adjustment
Ride height is an adjustment that affects the way the vehicle
jumps, turns and goes over bumps. Drop one end of the vehicle
from approximately 6 inches (150 mm) in height onto a flat
surface. When dropping the front of the vehicle, after the vehicle
settles make sure the front arms are equal and parallel to the flat
surface. Do the same with the rear and look at the rear to make
sure both arms are parallel with the flat surface.
Lower the front ride height to increase steering. Lower the rear
ride height to increase traction but decrease steering.
Part # Description
ECX3019
Shock Body Set
ECX1037
Shock Caps, Pistons
ECX1038
Shock Parts Set
ECX3020
Front Shock Shaft (2)
Problem
• Battery damaged/not charged
Short Run Time
• Motor dirty or brushes worn
•Motor dirty or brushes worn
Sluggish Action
• Bind in drivetrain
• Vehicle battery is not charged
Controls Reversed
• ST. REV or TH. REV
Motor/ESC overheat
• Over-geared
• Transmitter batteries low
• Transmitter powered off
Doesn't Operate
• ESC powered off
• Vehicle battery is not charged
• Transmitter batteries low
• Transmitter antenna is damaged or loose
Poor Range
• Receiver antenna damaged
• Motor dirty or brushes worn
MAINTENANCE
Rear Shock
Part # Description
ECX3021
Rear Shock Shaft (2)
ECX3022
Front Shock Springs (2)
ECX3023
Rear Shock Springs (2)
ECX1043
Shock O-Ring Set
TROUbLEShOOTING GUIdE
Possible Cause
REAR ShOCk
ECX1037
ECX1043
ECX1057
ECX1037
ECX1038
ECX3019
ECX1038
ECX1043
ECX1037
ECX3021
ECX3020
ECX3023
ECX3022
ECX1038
ECX1037
Solution
• Check/change battery
• Check/clean/replace
• Check/clean/replace
• Clean/adjust
• Replace/recharge
• Change switch position
• Install smaller pinion
• Replace/recharge
• Power On
• Power On
• Replace/recharge
• Replace/recharge
• Check/tighten
• Check/repair/replace
• Check/clean/replace
