EN

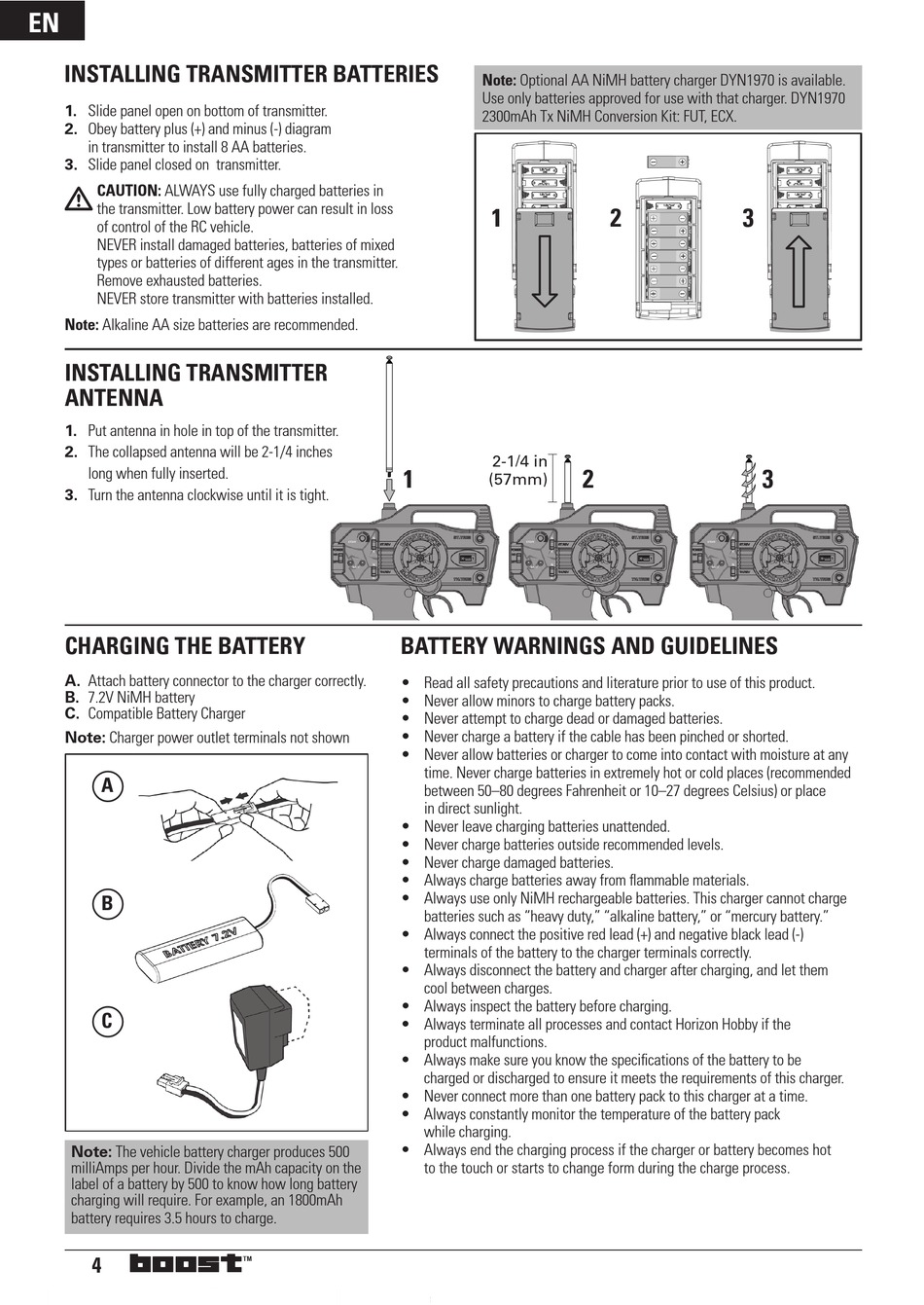

INSTALLING TRANSMITTER bATTERIES
1. Slide panel open on bottom of transmitter.
2. Obey battery plus (+) and minus (-) diagram
in transmitter to install 8 AA batteries.
3. Slide panel closed on transmitter.
CAUTION: ALWAYS use fully charged batteries in
the transmitter. Low battery power can result in loss
of control of the RC vehicle.
NEVER install damaged batteries, batteries of mixed
types or batteries of different ages in the transmitter.
Remove exhausted batteries.
NEVER store transmitter with batteries installed.
Note: Alkaline AA size batteries are recommended.
INSTALLING TRANSMITTER
ANTENNA
1. Put antenna in hole in top of the transmitter.
2. The collapsed antenna will be 2-1/4 inches
long when fully inserted.
3. Turn the antenna clockwise until it is tight.
ChARGING ThE bATTERy
a. Attach battery connector to the charger correctly.
B. 7.2V NiMH battery
c. Compatible Battery Charger
note: Charger power outlet terminals not shown
A
b
C
note: The vehicle battery charger produces 500
milliAmps per hour. Divide the mAh capacity on the
label of a battery by 500 to know how long battery
charging will require. For example, an 1800mAh
battery requires 3.5 hours to charge.
boost
4
1
bATTERy WARNINGS ANd GUIdELINES
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
TM
Note: Optional AA NiMH battery charger DYN1970 is available.
Use only batteries approved for use with that charger. DYN1970
2300mAh Tx NiMH Conversion Kit: FUT, ECX.
1
2-1/4 in
2
(57mm)
Read all safety precautions and literature prior to use of this product.
Never allow minors to charge battery packs.
Never attempt to charge dead or damaged batteries.
Never charge a battery if the cable has been pinched or shorted.
Never allow batteries or charger to come into contact with moisture at any
time. Never charge batteries in extremely hot or cold places (recommended
between 50–80 degrees Fahrenheit or 10–27 degrees Celsius) or place
in direct sunlight.
Never leave charging batteries unattended.
Never charge batteries outside recommended levels.
Never charge damaged batteries.
Always charge batteries away from flammable materials.
Always use only NiMH rechargeable batteries. This charger cannot charge
batteries such as "heavy duty," "alkaline battery," or "mercury battery."
Always connect the positive red lead (+) and negative black lead (-)
terminals of the battery to the charger terminals correctly.
Always disconnect the battery and charger after charging, and let them
cool between charges.
Always inspect the battery before charging.
Always terminate all processes and contact Horizon Hobby if the
product malfunctions.
Always make sure you know the specifications of the battery to be
charged or discharged to ensure it meets the requirements of this charger.
Never connect more than one battery pack to this charger at a time.
Always constantly monitor the temperature of the battery pack
while charging.
Always end the charging process if the charger or battery becomes hot
to the touch or starts to change form during the charge process.
2
3
3
