EN

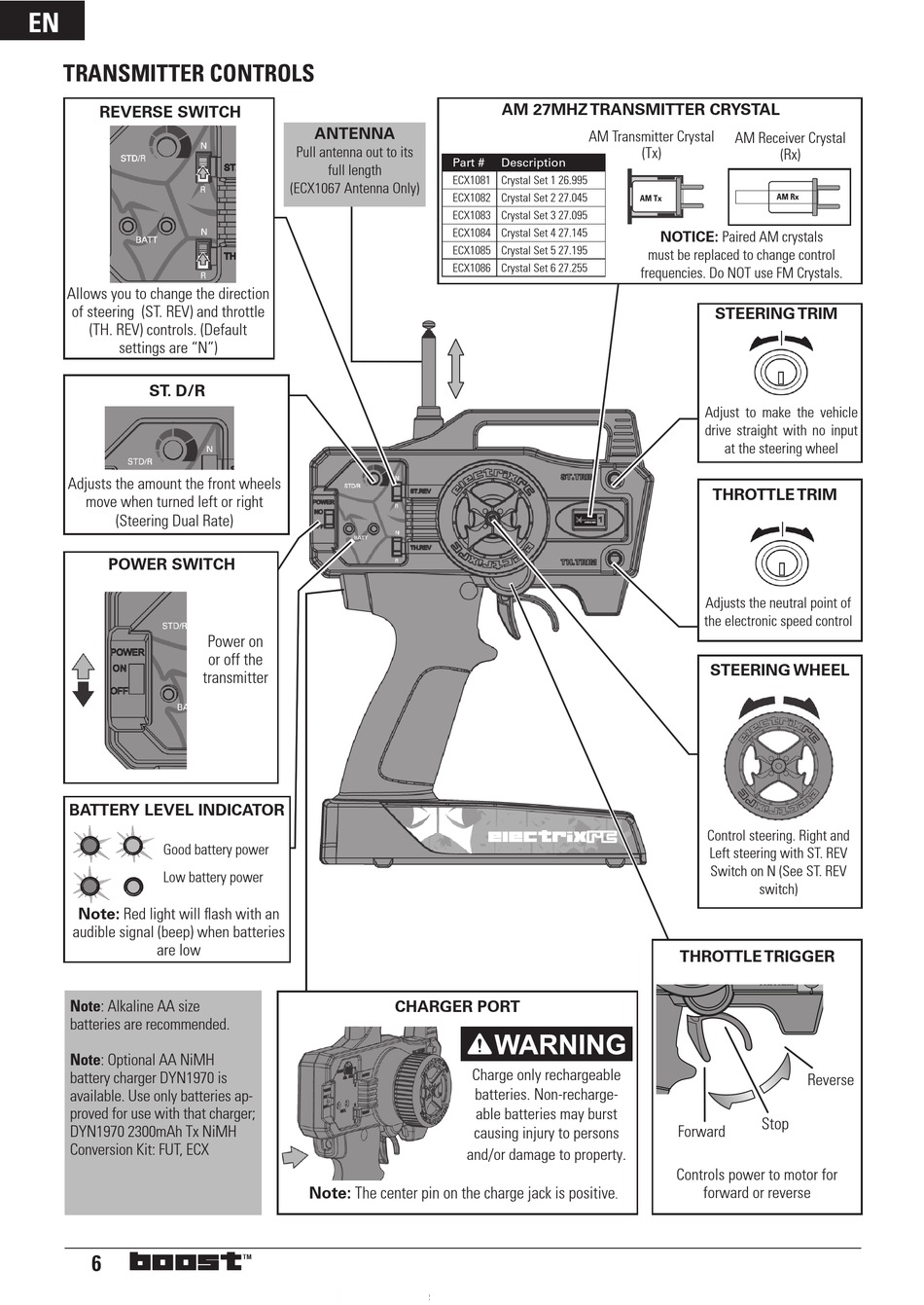

TRANSMITTER CONTROLS
reverse sWItch
Allows you to change the direction
of steering (ST. REV) and throttle
(TH. REV) controls. (Default
settings are "N")
st. d/r
Adjusts the amount the front wheels
move when turned left or right
(Steering Dual Rate)
PoWer sWItch
Battery level IndIcator
Good battery power
Low battery power
note: Red light will flash with an
audible signal (beep) when batteries
are low
Note: Alkaline AA size
batteries are recommended.
Note: Optional AA NiMH
battery charger DYN1970 is
available. Use only batteries ap-
proved for use with that charger;
DYN1970 2300mAh Tx NiMH
Conversion Kit: FUT, ECX
boost
6
antenna
Pull antenna out to its
full length
(ECX1067 Antenna Only)
Power on
or off the
transmitter
note: The center pin on the charge jack is positive
TM
aM 27Mhz transMItter crystal
Part #
Description
ECX1081 Crystal Set 1 26.995
ECX1082 Crystal Set 2 27.045
ECX1083 Crystal Set 3 27.095
ECX1084 Crystal Set 4 27.145
ECX1085 Crystal Set 5 27.195
ECX1086 Crystal Set 6 27.255
charger Port
Charge only rechargeable
batteries. Non-recharge-
able batteries may burst
causing injury to persons
and/or damage to property .
AM Transmitter Crystal
AM Receiver Crystal
(Tx)
AM Tx
notIce: Paired AM crystals
must be replaced to change control
frequencies. Do NOT use FM Crystals.
steerIng trIM
Adjust to make the vehicle
drive straight with no input
at the steering wheel
throttle trIM
Adjusts the neutral point of
the electronic speed control
steerIng Wheel
Control steering. Right and
Left steering with ST. REV
Switch on N (See ST. REV
switch)
throttle trIgger
Stop
Forward
Controls power to motor for
forward or reverse
.
(Rx)
AM Rx
Reverse
