Transmitter
Frequency
Modulation
Pulse Proportional Modulation (PPM)
Battery
Current Consumption
Size
Weight
Servo
Power Supply
Output Torque
Operating Speed
Size
TM
TM
1. Electrix RC
Boost
1/10 Buggy
2. Transmitter
3. Antenna Tube (ECX1087)
Included Items
4. AA (8)
5. ECX3013 Battery Charger
Note: Charger power outlet
terminals not shown.
6. 7.2V NiMH battery (DYN1050)
7. Alternate Crystal Set (not shown)
INSTALLING ANTENNA TUbE ANd bOdy
1. Remove the Body Clips (ECX1048).
2. Remove the body.
3. Put the receiver antenna in the antenna tube (ECX1087).
4. Put the antenna tube in the chassis with loose antenna
wire extended above the tube.
5. Put the cap on the antenna tube.
6. Put the body and body clips back on the vehicle.

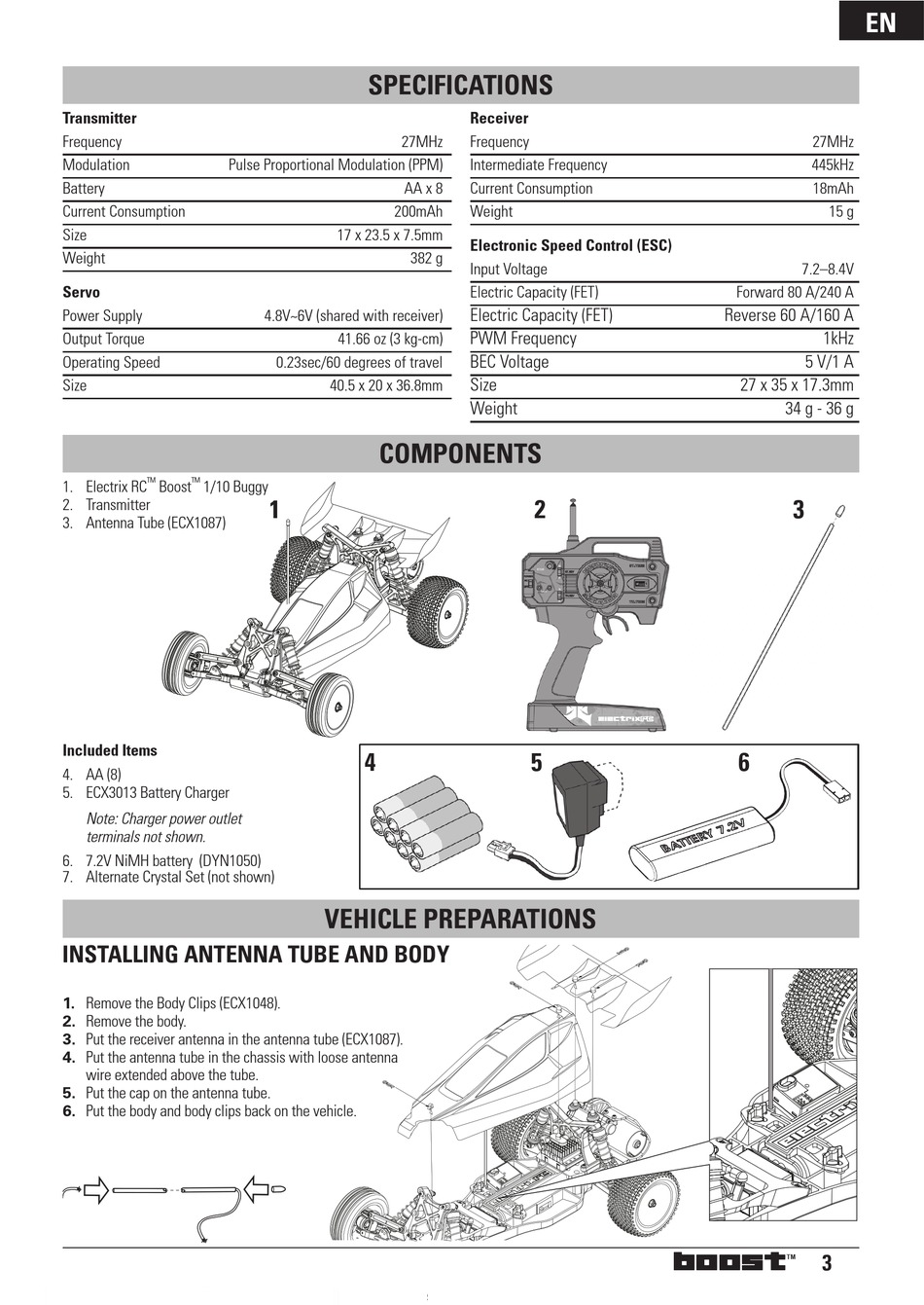

SPECIfICATIONS
27MHz
AA x 8
200mAh
17 x 23.5 x 7.5mm
382 g
4.8V~6V (shared with receiver)
41.66 oz (3 kg-cm)
0.23sec/60 degrees of travel
40.5 x 20 x 36.8mm
COMPONENTS
1
4
VEhICLE PREPARATIONS
Receiver
Frequency
Intermediate Frequency
Current Consumption
Weight
Electronic Speed Control (ESC)
Input Voltage
Electric Capacity (FET)
Electric Capacity (FET)
PWM Frequency
BEC Voltage
Size
Weight
2
5
27MHz
445kHz
18mAh
15 g
7.2–8.4V
Forward 80 A/240 A
Reverse 60 A/160 A
1kHz
5 V/1 A
27 x 35 x 17.3mm
34 g - 36 g
3
6
boost
3
