introdUction:
antenna designed for digital terrestrial tV broadcasting reception. this is an active antenna that can
be used with tV or set-top-box which supports coaxial cable powering, or using a power adaptor for
external powering is supported.
technical data:
• Frequency range: VHF: 174-230 mHz; uHF: 470-790 mHz
• gain: 30 dB
• max. output level: 100 dBµV
• Impedance: 75 Ω
• noise factor: ≤3 db
• Power supply: via separate aC/dC adapter (dC 6 V, 100 ma) or via dtV set-top box (dC 5 V,
40 ma)

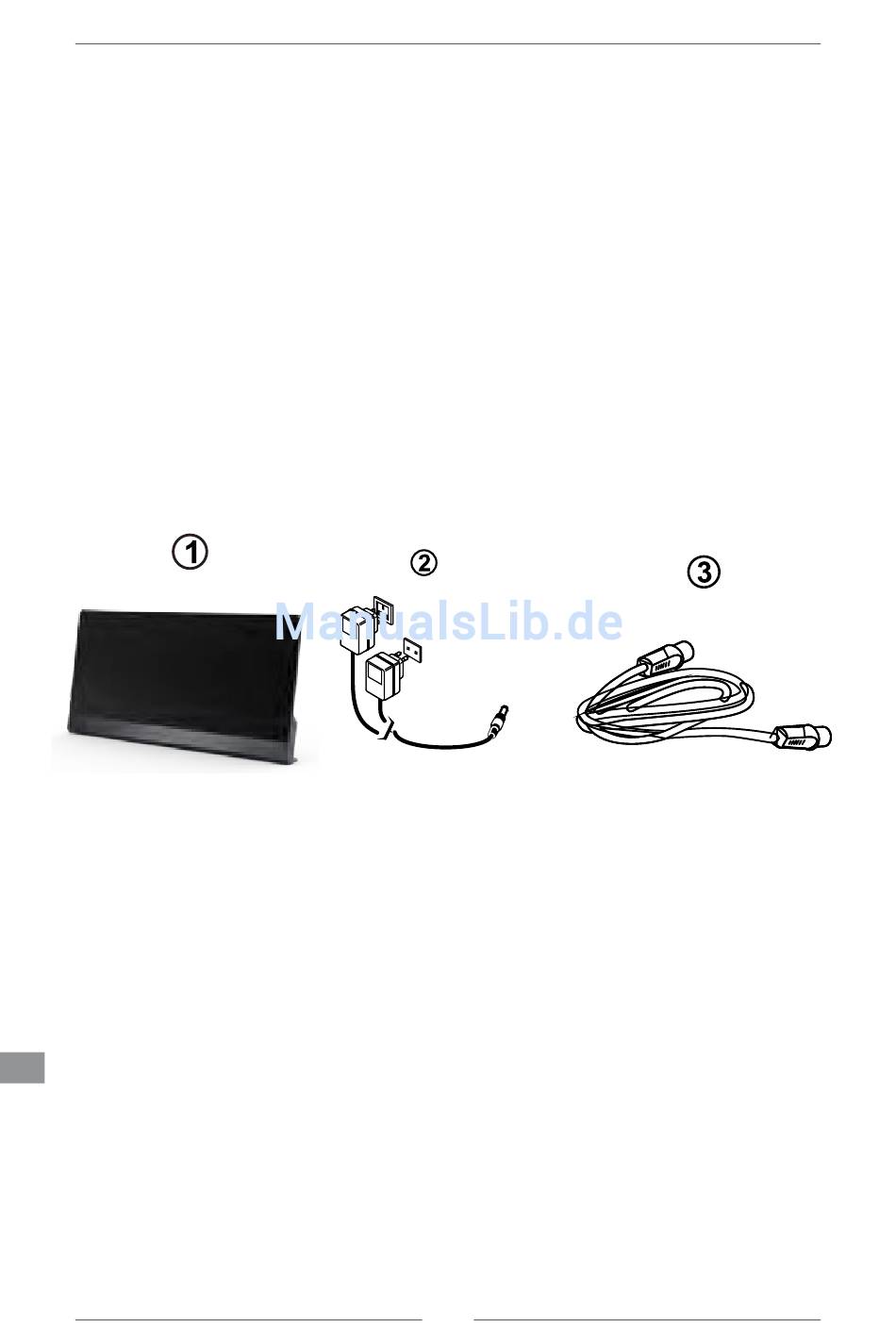

in set:
Before installation, please check the contents:
1. antenna main unit
2. aC/dC power adapter
3. Coaxial cable
featUres:
• smd circuit technology design
• shielded for minimum interference
• built-in high gain and low noise amplifier
• stylish and compact size design with shiny black process
• Powered by dtV set-bop box or included separate power adapter
ENi
• Compatible with dVB-t2, isdB-t, dmB-t/H, atsC and daB radios
• built-in LtE filter
installation:
note: For the best reception, please check the following conditions
1. Keep the antenna away from the sources of interference: keep the antenna away from those big
power consumption devices, such as air conditioner, elevator, hair dryer and microwave oven,
ect.
2. if possible, please place the antenna near windows, in order to catch the strong signal with
