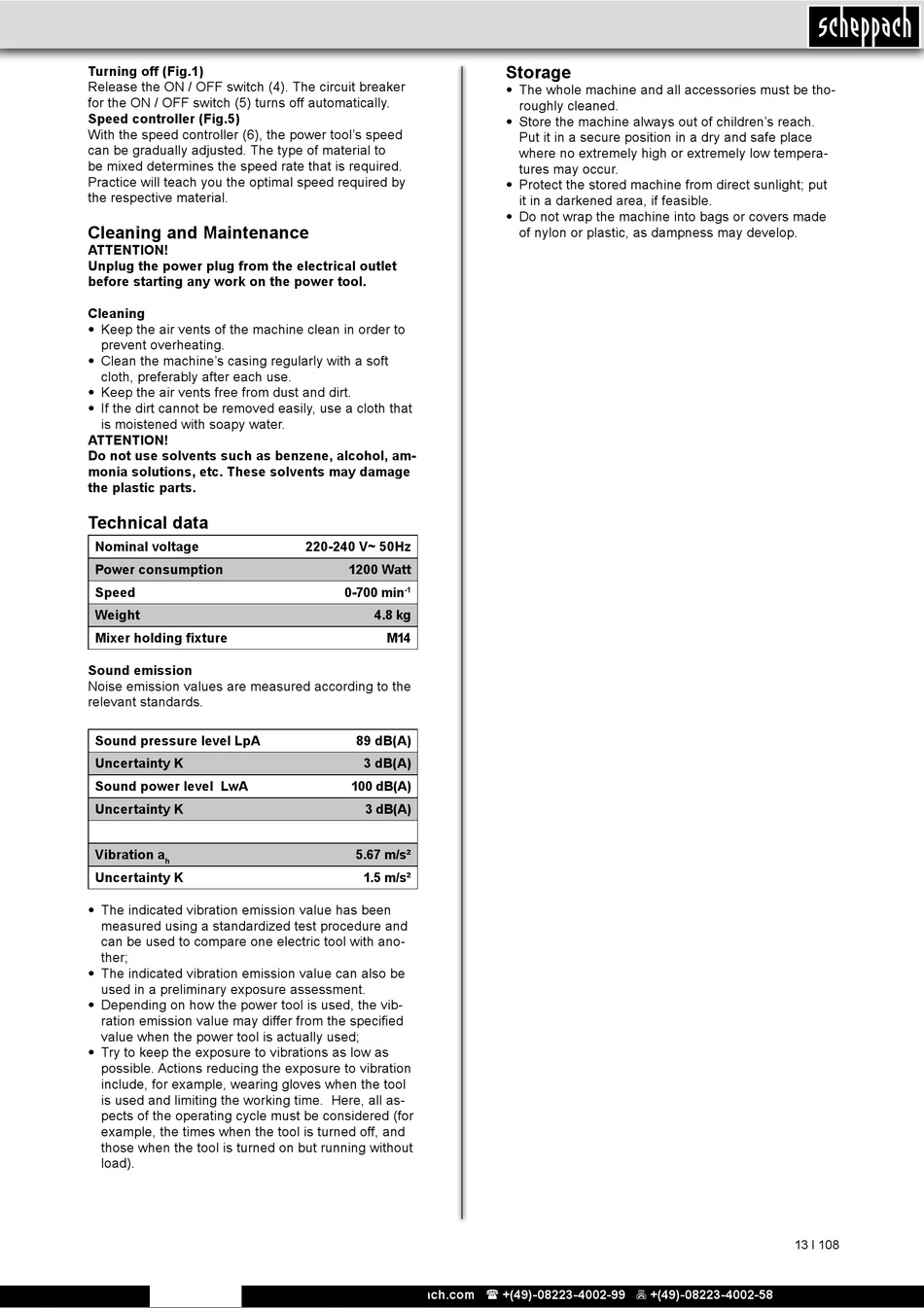

Cleaning And Maintenance; Technical Data - Scheppach PM1200 Originalbetriebsanleitung

Turning off (Fig.1)
Release the ON / OFF switch (4). The circuit breaker
for the ON / OFF switch (5) turns off automatically.
Speed controller (Fig.5)
With the speed controller (6), the power tool's speed
can be gradually adjusted. The type of material to
be mixed determines the speed rate that is required.
Practice will teach you the optimal speed required by
the respective material.

Cleaning and Maintenance

ATTENTION!
Unplug the power plug from the electrical outlet
before starting any work on the power tool.
Cleaning
• Keep the air vents of the machine clean in order to
prevent overheating.
• Clean the machine's casing regularly with a soft
cloth, preferably after each use.
• Keep the air vents free from dust and dirt.
• If the dirt cannot be removed easily, use a cloth that
is moistened with soapy water.
ATTENTION!
Do not use solvents such as benzene, alcohol, am-
monia solutions, etc. These solvents may damage
the plastic parts.

Technical data

Nominal voltage
Power consumption
Speed
Weight
Mixer holding fixture
Sound emission
Noise emission values are measured according to the
relevant standards.
Sound pressure level LpA
Uncertainty K
Sound power level LwA
Uncertainty K
Vibration a
h
Uncertainty K
• The indicated vibration emission value has been
measured using a standardized test procedure and
can be used to compare one electric tool with ano-
ther;
• The indicated vibration emission value can also be
used in a preliminary exposure assessment.
• Depending on how the power tool is used, the vib-
ration emission value may differ from the specified
value when the power tool is actually used;
• Try to keep the exposure to vibrations as low as
possible. Actions reducing the exposure to vibration
include, for example, wearing gloves when the tool
is used and limiting the working time. Here, all as-
pects of the operating cycle must be considered (for
example, the times when the tool is turned off, and
those when the tool is turned on but running without
load).
 www.scheppach.com  service@scheppach.com  +(49)-08223-4002-99  +(49)-08223-4002-58
220-240 V~ 50Hz
1200 Watt
0-700 min
-1
4.8 kg
M14
89 dB(A)
3 dB(A)
100 dB(A)
3 dB(A)
5.67 m/s²
1.5 m/s²
Storage
• The whole machine and all accessories must be tho-
roughly cleaned.
• Store the machine always out of children's reach.
Put it in a secure position in a dry and safe place
where no extremely high or extremely low tempera-
tures may occur.
• Protect the stored machine from direct sunlight; put
it in a darkened area, if feasible.
• Do not wrap the machine into bags or covers made
of nylon or plastic, as dampness may develop.
13 І 108
