ASRock Front USB 3.1 Panel Installation Guide

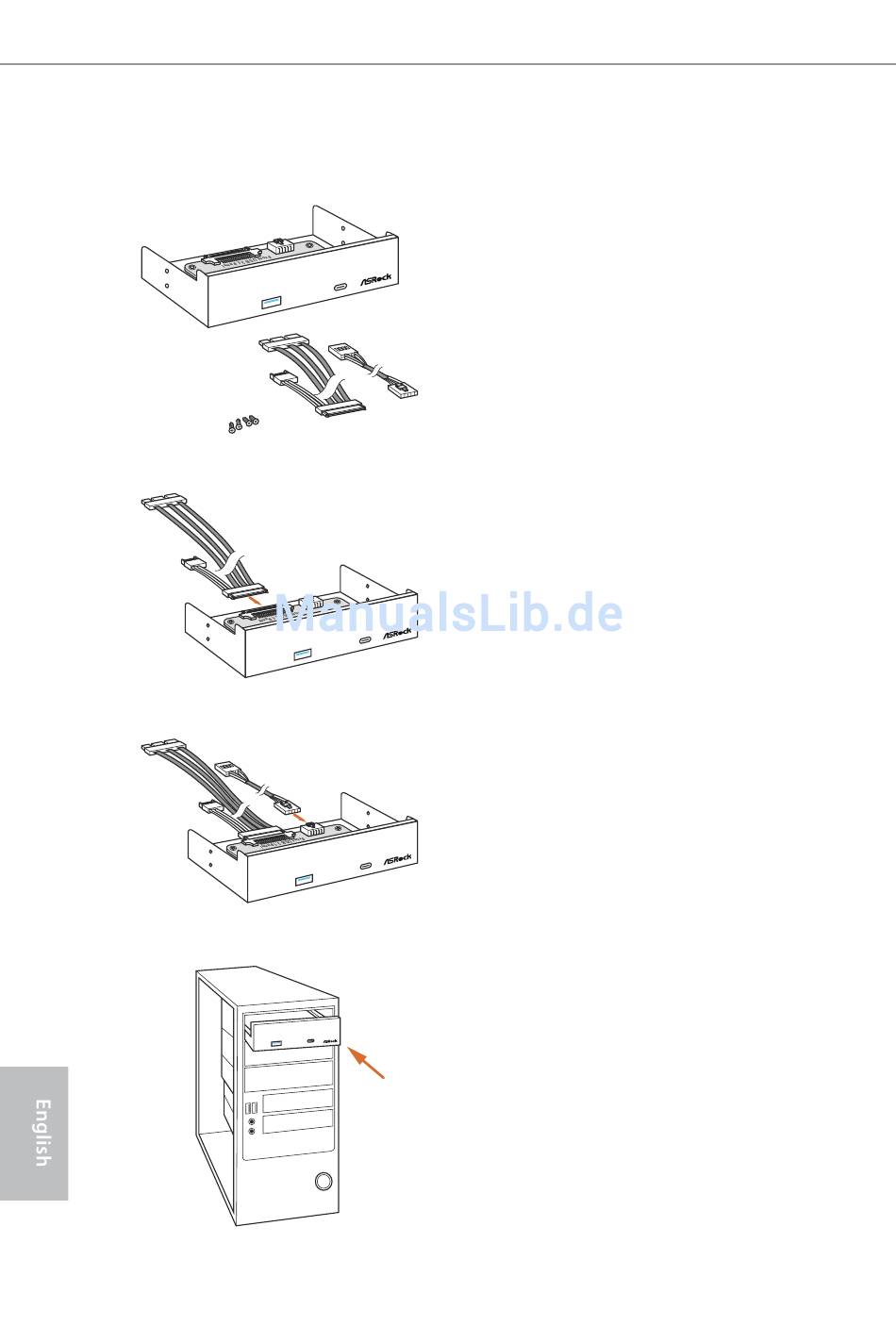

Step 1
Prepare the bundled ASRock Front USB 3.1 Panel,
SATA Express Cable, USB Power Cable and screws.
Step 2
Connect one end of the SATA Express Cable to the
SATA Express Connector on the ASRock Front USB
3.1 Panel.
Step 3
Connect one end of the USB Power Cable to the
USB Power Connector on the ASRock Front USB 3.1
Panel.
Step4
Install ASRock Front USB 3.1 Panel into the drive
bay of the chassis.
