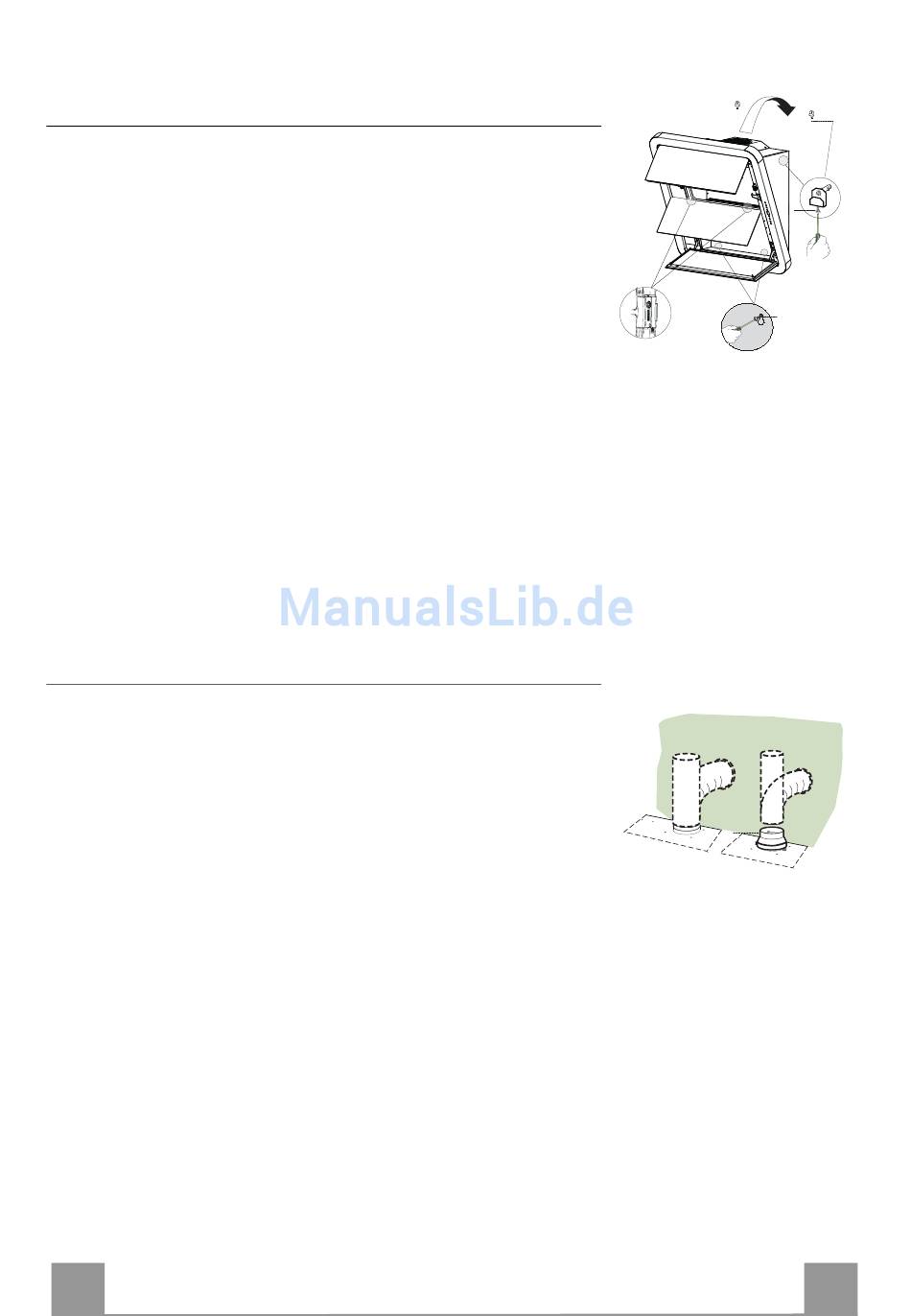

• Open the suction panels.
• Unfasten the Centre panel from the hood canopy by sliding the
fixing pin lever provided. (A)
• Remove the Metal grease filters using the handles provided.
• Adjust the two screws Vr, in the brackets 11a, so that they are
at the start of their travel (B).
• Hook the hood body to the two brackets 11a.
• From the inside of the hood body, turn screws Vr to level the
hood body itself.
• Fasten the safety screw 11.
• Replace and close the suction panels.
DUCTED VERSION AIR EXHAUST SYSTEM
When installing the ducted version, connect the hood to the
chimney using either a flexible or rigid pipe ø 150 or 120 mm,
the choice of which is left to the installer.
• To install a ø 120 mm air exhaust connection, insert the re-
ducer flange 9 on the hood body outlet.
• Fix the pipe in position using sufficient pipe clamps (not sup-
plied).
• Remove possible charcoal filters.
EN
Fitting the hood body
Connections
11a
Vr
( B )
( A )
11
ø 120
ø 150
9
