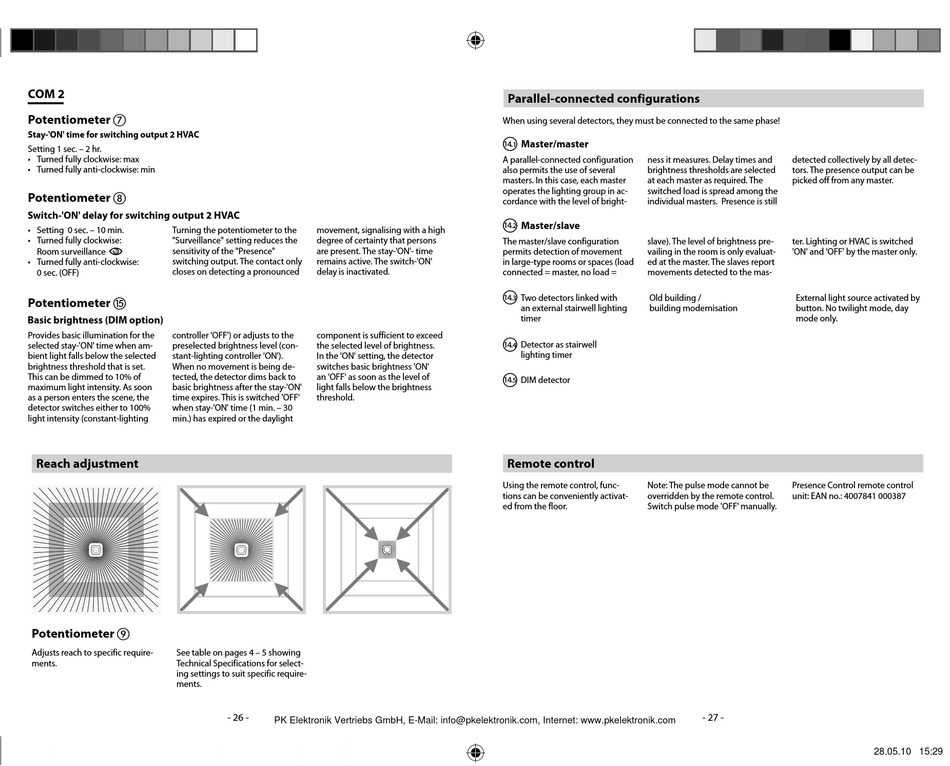

COM 2
Potentiometer
Stay-'ON' time for switching output 2 HVAC
Setting 1 sec. – 2 hr.
• Turned fully clockwise: max
• Turned fully anti-clockwise: min
Potentiometer
Switch-'ON' delay for switching output 2 HVAC
• Setting 0 sec. – 10 min. Turning the potentiometer to the
• Turned fully clockwise: "Surveillance" setting reduces the
Room surveillance sensitivity of the "Presence"
switching output. The contact only
• Turned fully anti-clockwise:
closes on detecting a pronounced
0 sec. (OFF)
Potentiometer
Basic brightness (DIM option)
Provides basic illumination for the controller 'OFF') or adjusts to the
selected stay-'ON' time when am- preselected brightness level (con-
bient light falls below the selected stant-lighting controller 'ON').
brightness threshold that is set. When no movement is being de-
This can be dimmed to 10% of tected, the detector dims back to
maximum light intensity. As soon basic brightness after the stay-'ON'
as a person enters the scene, the time expires. This is switched 'OFF'
detector switches either to 100% when stay-'ON' time (1 min. – 30
light intensity (constant-lighting min.) has expired or the daylight
Reach adjustment
Potentiometer
Adjusts reach to specific require- See table on pages 4 – 5 showing
ments. Technical Specifications for select-
ing settings to suit specific require-
ments.
movement, signalising with a high
degree of certainty that persons
are present. The stay-'ON'- time
remains active. The switch-'ON'
delay is inactivated.
component is sufficient to exceed
the selected level of brightness.
In the 'ON' setting, the detector
switches basic brightness 'ON'
an 'OFF' as soon as the level of
light falls below the brightness
threshold.
- 26 -
PK Elektronik Vertriebs GmbH, E-Mail: info@pkelektronik.com, Internet: www.pkelektronik.com
Parallel-connected configurations
When using several detectors, they must be connected to the same phase!
k
1 4. Master/master
1
A parallel-connected configuration ness it measures. Delay times and
also permits the use of several brightness thresholds are selected
masters. In this case, each master at each master as required. The
operates the lighting group in ac- switched load is spread among the
cordance with the level of bright- individual masters. Presence is still
k
Master/slave
1 4.
2
The master/slave configuration slave). The level of brightness pre-
permits detection of movement vailing in the room is only evaluat-
in large-type rooms or spaces (load ed at the master. The slaves report
connected = master, no load = movements detected to the mas-
k
Two detectors linked with Old building /
1 4.
3
an external stairwell lighting building modernisation
timer
k
Detector as stairwell
1 4.
4
lighting timer
k
1 4. DIM detector
5
Remote control
Using the remote control, func- Note: The pulse mode cannot be
tions can be conveniently activat- overridden by the remote control.
ed from the floor. Switch pulse mode 'OFF' manually.
detected collectively by all detec-
tors. The presence output can be
picked off from any master.
ter. Lighting or HVAC is switched
'ON' and 'OFF' by the master only.
External light source activated by
button. No twilight mode, day
mode only.
Presence Control remote control
unit: EAN no.: 4007841 000387
