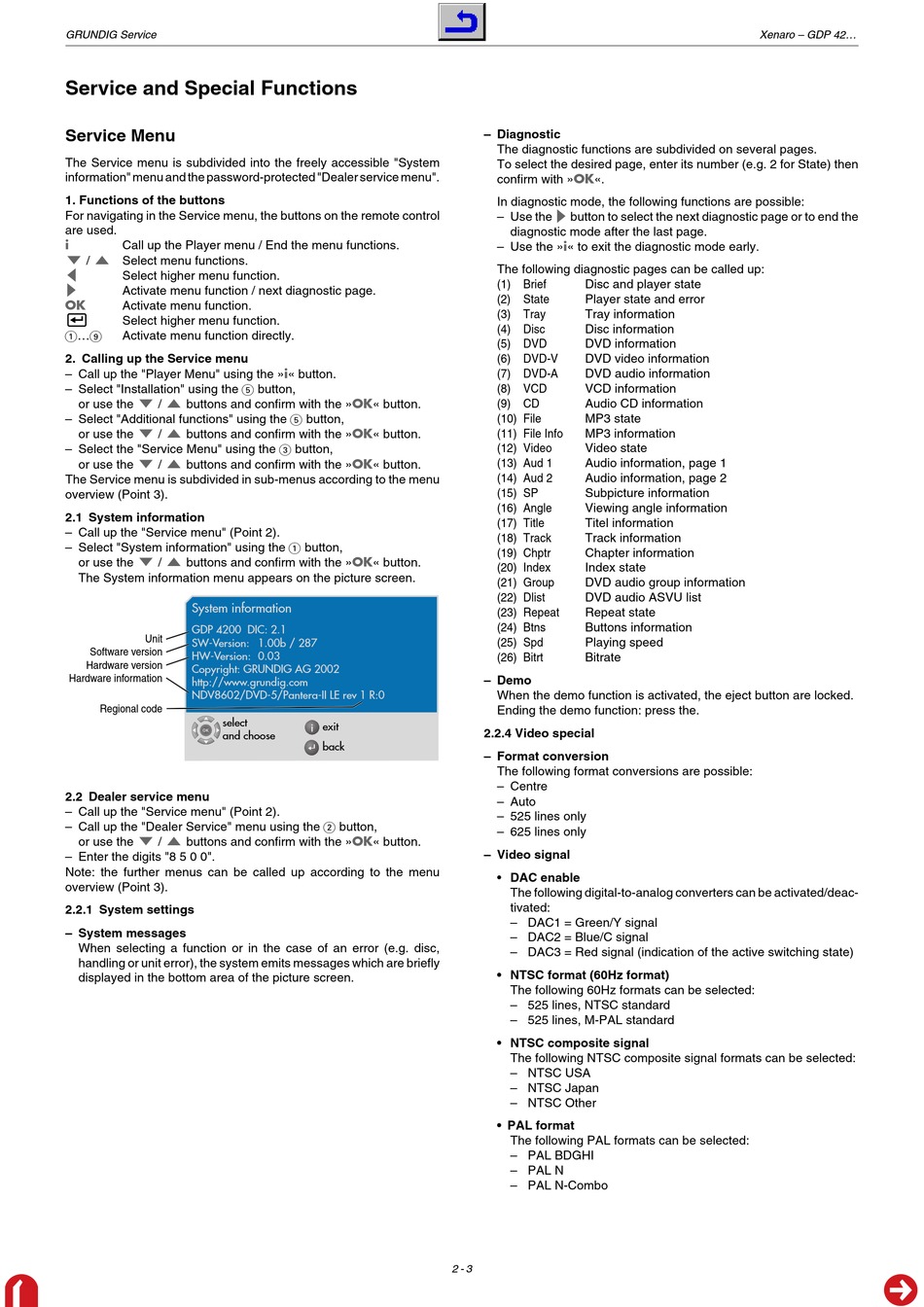

GRUNDIG Service
Service and Special Functions
Service Menu
The Service menu is subdivided into the freely accessible "System
information" menu and the password-protected "Dealer service menu".
1. Functions of the buttons
For navigating in the Service menu, the buttons on the remote control
are used.
i
Call up the Player menu / End the menu functions.
S
A
/
Select menu functions.
a
Select higher menu function.
s
Activate menu function / next diagnostic page.
OK
Activate menu function.
x
Select higher menu function.
1...9
Activate menu function directly.
2. Calling up the Service menu
– Call up the "Player Menu" using the »i« button.
– Select "Installation" using the 5 button,
S
A
or use the
/
buttons and confirm with the »OK« button.
– Select "Additional functions" using the 5 button,
S
A
or use the
/
buttons and confirm with the »OK« button.
– Select the "Service Menu" using the 3 button,
S
A
or use the
/
buttons and confirm with the »OK« button.
The Service menu is subdivided in sub-menus according to the menu
overview (Point 3).
2.1 System information
– Call up the "Service menu" (Point 2).
– Select "System information" using the 1 button,
S
A
or use the
/
buttons and confirm with the »OK« button.
The System information menu appears on the picture screen.
System information
GDP 4200 DIC: 2.1
Unit
SW-Version: 1.00b / 287
Software version
HW-Version: 0.03
Hardware version
Copyright: GRUNDIG AG 2002
Hardware information
http://www.grundig.com
NDV8602/DVD-5/Pantera-II LE rev 1 R:0
Regional code
select
and choose
2.2 Dealer service menu
– Call up the "Service menu" (Point 2).
– Call up the "Dealer Service" menu using the 2 button,
S
A
or use the
/
buttons and confirm with the »OK« button.
– Enter the digits "8 5 0 0".
Note: the further menus can be called up according to the menu
overview (Point 3).
2.2.1 System settings
– System messages
When selecting a function or in the case of an error (e.g. disc,
handling or unit error), the system emits messages which are briefly
displayed in the bottom area of the picture screen.
– Diagnostic
The diagnostic functions are subdivided on several pages.
To select the desired page, enter its number (e.g. 2 for State) then
confirm with »OK«.
In diagnostic mode, the following functions are possible:
– Use the
– Use the »i« to exit the diagnostic mode early.
The following diagnostic pages can be called up:
(1) Brief
(2) State
(3) Tray
(4) Disc
(5) DVD
(6) DVD-V
(7) DVD-A
(8) VCD
(9) CD
(10) File
(11) File Info
(12) Video
(13) Aud 1
(14) Aud 2
(15) SP
(16) Angle
(17) Title
(18) Track
(19) Chptr
(20) Index
(21) Group
(22) Dlist
(23) Repeat
(24) Btns
(25) Spd
(26) Bitrt
– Demo
When the demo function is activated, the eject button are locked.
Ending the demo function: press the.
exit
2.2.4 Video special
back
– Format conversion
The following format conversions are possible:
– Centre
– Auto
– 525 lines only
– 625 lines only
– Video signal
• DAC enable
• NTSC format (60Hz format)
• NTSC composite signal
• PAL format
2 - 3
s
button to select the next diagnostic page or to end the
diagnostic mode after the last page.
Disc and player state
Player state and error
Tray information
Disc information
DVD information
DVD video information
DVD audio information
VCD information
Audio CD information
MP3 state
MP3 information
Video state
Audio information, page 1
Audio information, page 2
Subpicture information
Viewing angle information
Titel information
Track information
Chapter information
Index state
DVD audio group information
DVD audio ASVU list
Repeat state
Buttons information
Playing speed
Bitrate
The following digital-to-analog converters can be activated/deac-
tivated:
– DAC1 = Green/Y signal
– DAC2 = Blue/C signal
– DAC3 = Red signal (indication of the active switching state)
The following 60Hz formats can be selected:
– 525 lines, NTSC standard
– 525 lines, M-PAL standard
The following NTSC composite signal formats can be selected:
– NTSC USA
– NTSC Japan
– NTSC Other
The following PAL formats can be selected:
– PAL BDGHI
– PAL N
– PAL N-Combo
Xenaro – GDP 42...
