2. Connect the negative terminal (-) of the speaker to the "negative" (-) of the
audio line, that leads from the amplifier terminal marked -, "0" or "COM" tap
of the amplifier (Fig. 2).
3. Connect the positive terminal (+) of the speaker to the "positive" (+)
conductor of the audio line.
4. When making the connections, keep the following indications in mind
(Fig. 3, constant voltage).
- The input voltage selected on the speaker must correspond with the voltage
selected on the amplifier.
- The sum of the operating power values of all the speakers connected to the
audio line must not exceed that of the amplifier.
- To ensure correct audio reproduction, the connections should be made "in
phase", where the (+/-) polarities of the amplifier output correspond with
the +/- polarities of the speaker input.
AMPLIFIER
Pa > Pd x n
Pa = Amplifier power
Pd = Speaker power
n = Number of speakers
Vd = Speaker input voltage
Va = Amplifier output voltage
Va
Vd=Va
+ –
Vd=Va

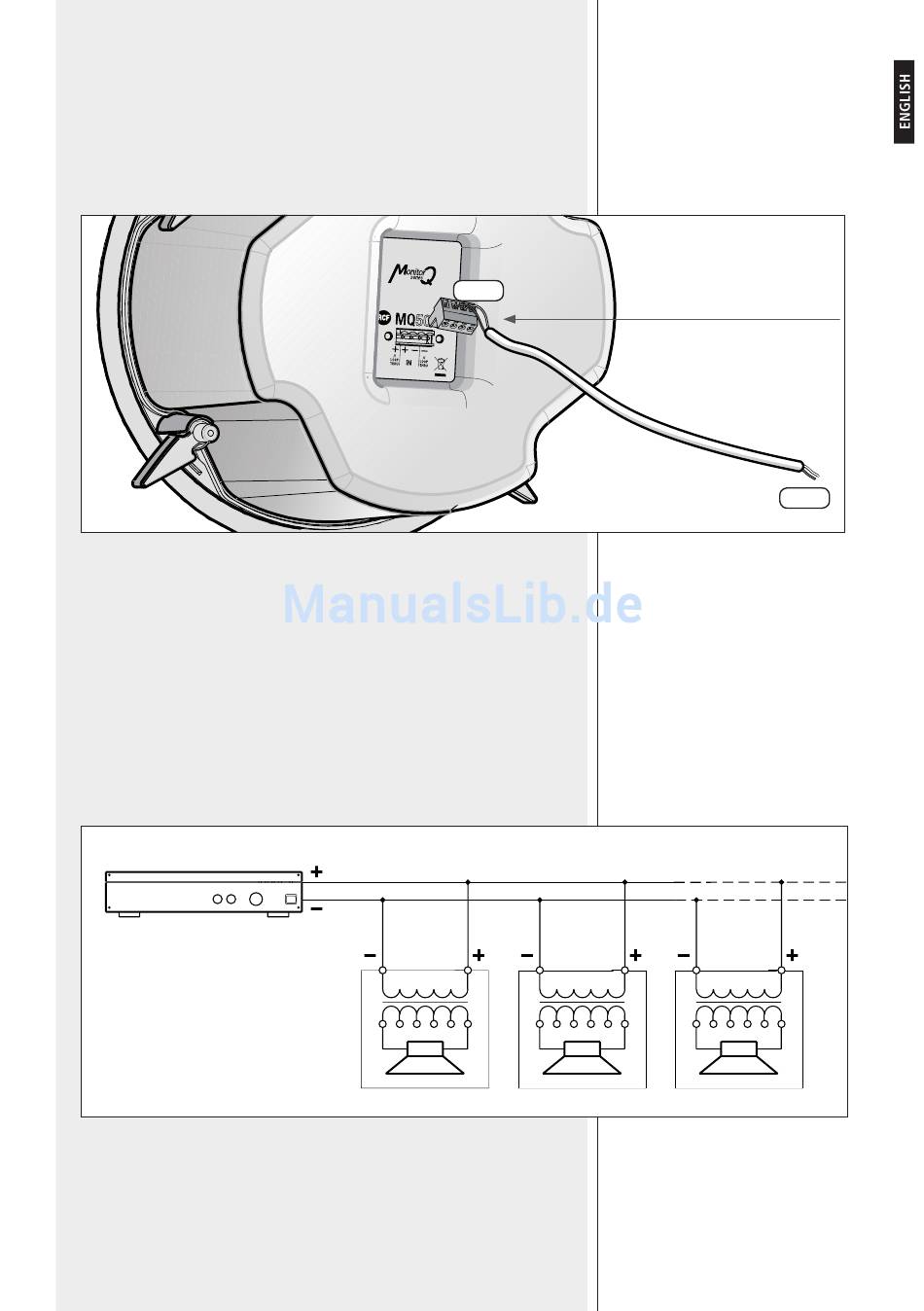

Fig. 2
Connect the connector
to the speaker
+ –
Fig. 3
Vd=Va
