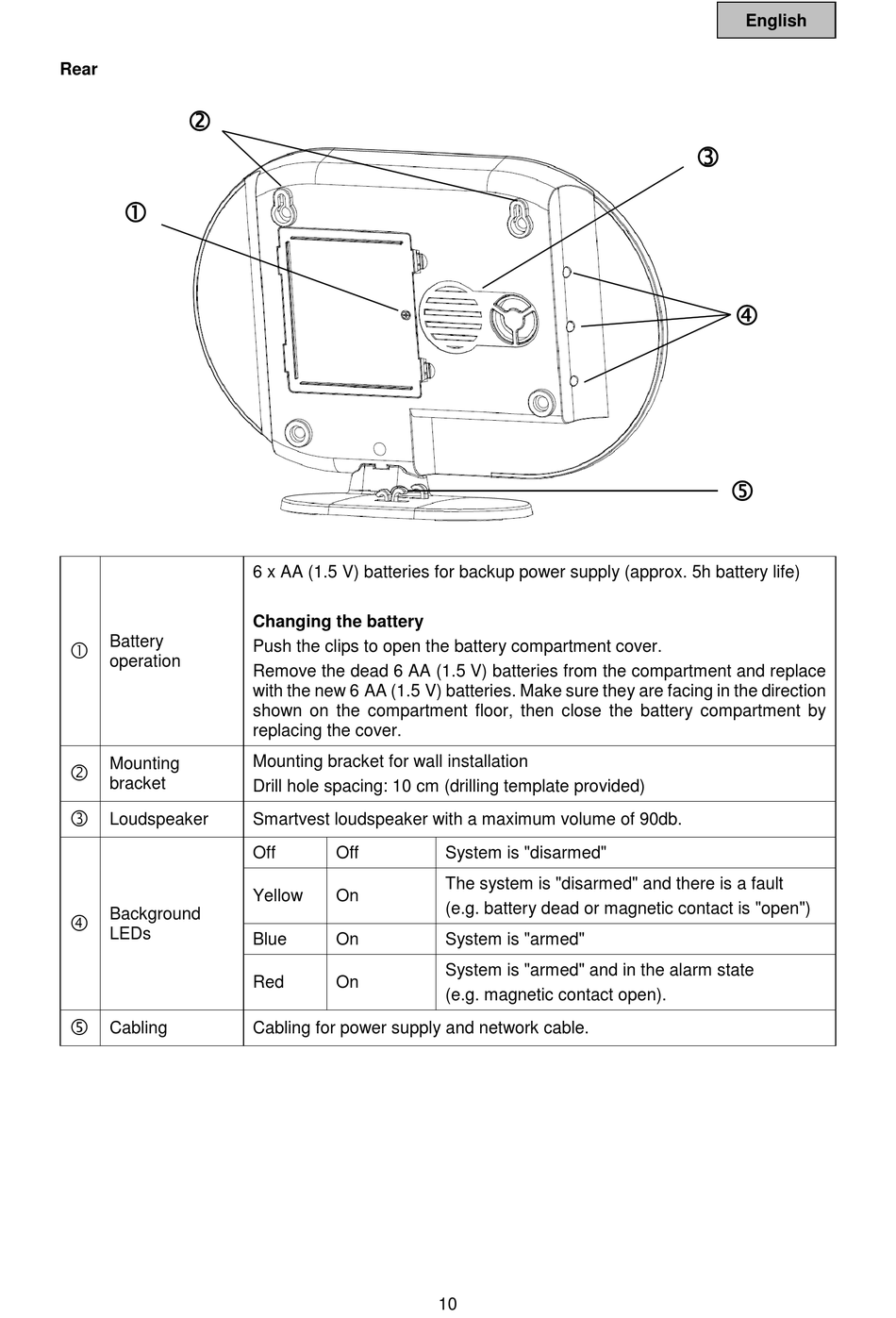

Rear


Battery

operation
Mounting

bracket

Loudspeaker
Background

LEDs

Cabling
6 x AA (1.5 V) batteries for backup power supply (approx. 5h battery life)
Changing the battery
Push the clips to open the battery compartment cover.
Remove the dead 6 AA (1.5 V) batteries from the compartment and replace
with the new 6 AA (1.5 V) batteries. Make sure they are facing in the direction
shown on the compartment floor, then close the battery compartment by
replacing the cover.
Mounting bracket for wall installation
Drill hole spacing: 10 cm (drilling template provided)
Smartvest loudspeaker with a maximum volume of 90db.
Off Off
Yellow On
Blue On
Red On
Cabling for power supply and network cable.
System is "disarmed"
The system is "disarmed" and there is a fault
(e.g. battery dead or magnetic contact is "open")
System is "armed"
System is "armed" and in the alarm state
(e.g. magnetic contact open).
