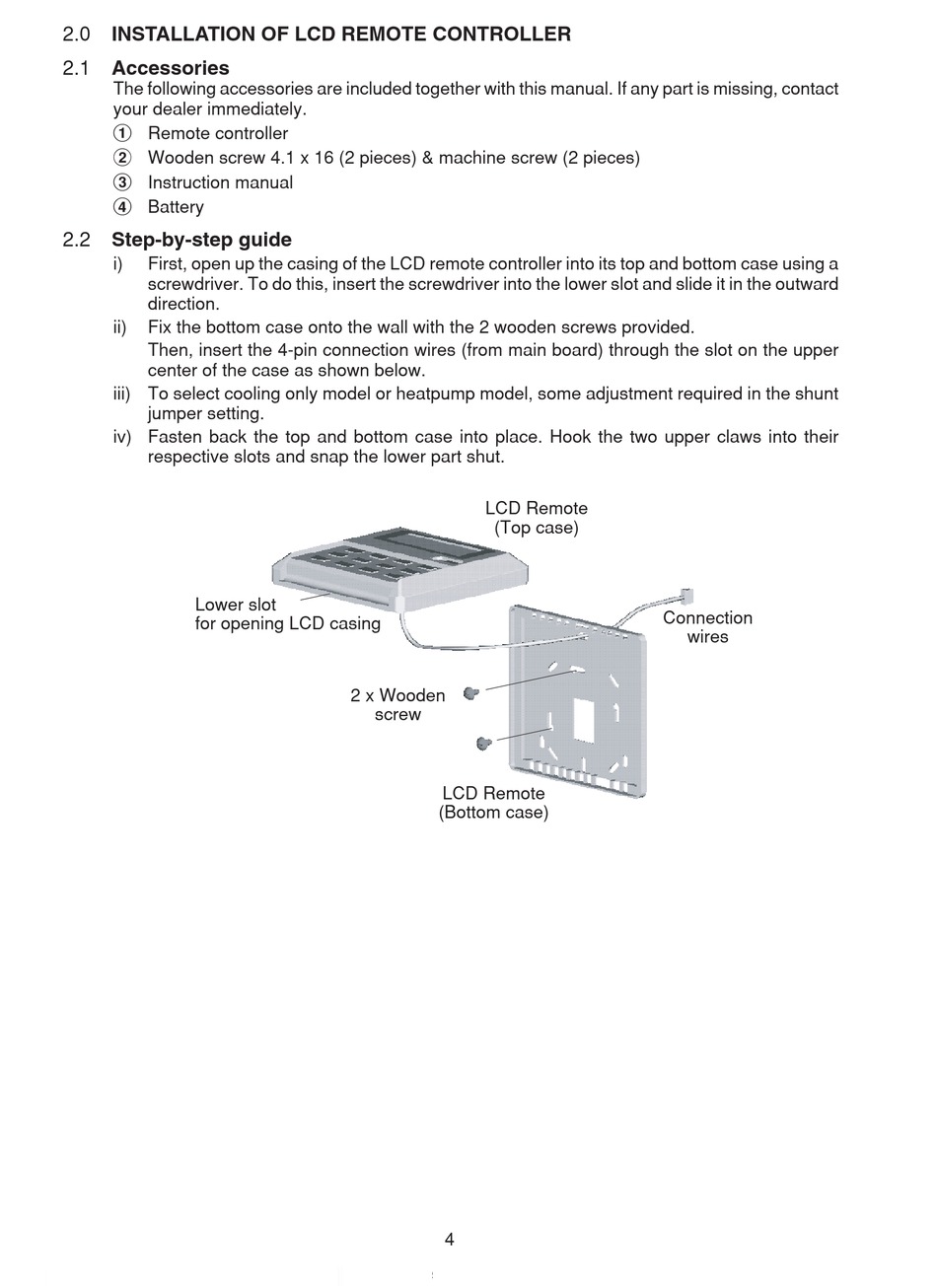

2.0 INSTALLATION OF LCD REMOTE CONTROLLER
2.1 Accessories
The following accessories are included together with this manual. If any part is missing, contact
your dealer immediately.
1
Remote controller
2
Wooden screw 4.1 x 16 (2 pieces) & machine screw (2 pieces)
3
Instruction manual
4
Battery
2.2 Step-by-step guide
i) First, open up the casing of the LCD remote controller into its top and bottom case using a
screwdriver. To do this, insert the screwdriver into the lower slot and slide it in the outward
direction.
ii) Fix the bottom case onto the wall with the 2 wooden screws provided.
Then, insert the 4-pin connection wires (from main board) through the slot on the upper
center of the case as shown below.
iii) To select cooling only model or heatpump model, some adjustment required in the shunt
jumper setting.
iv) Fasten back the top and bottom case into place. Hook the two upper claws into their
respective slots and snap the lower part shut.
Lower slot
for opening LCD casing
LCD Remote
(Top case)
2 x Wooden
screw
LCD Remote
(Bottom case)
4
Connection
wires
