Page 6
Connect input/output devices to the camera as follows:
1. Attach the cables for the device securely
to the supplied connector block.
2. Once the cables are connected, attach
the connector block to the terminal
connector on the camera.

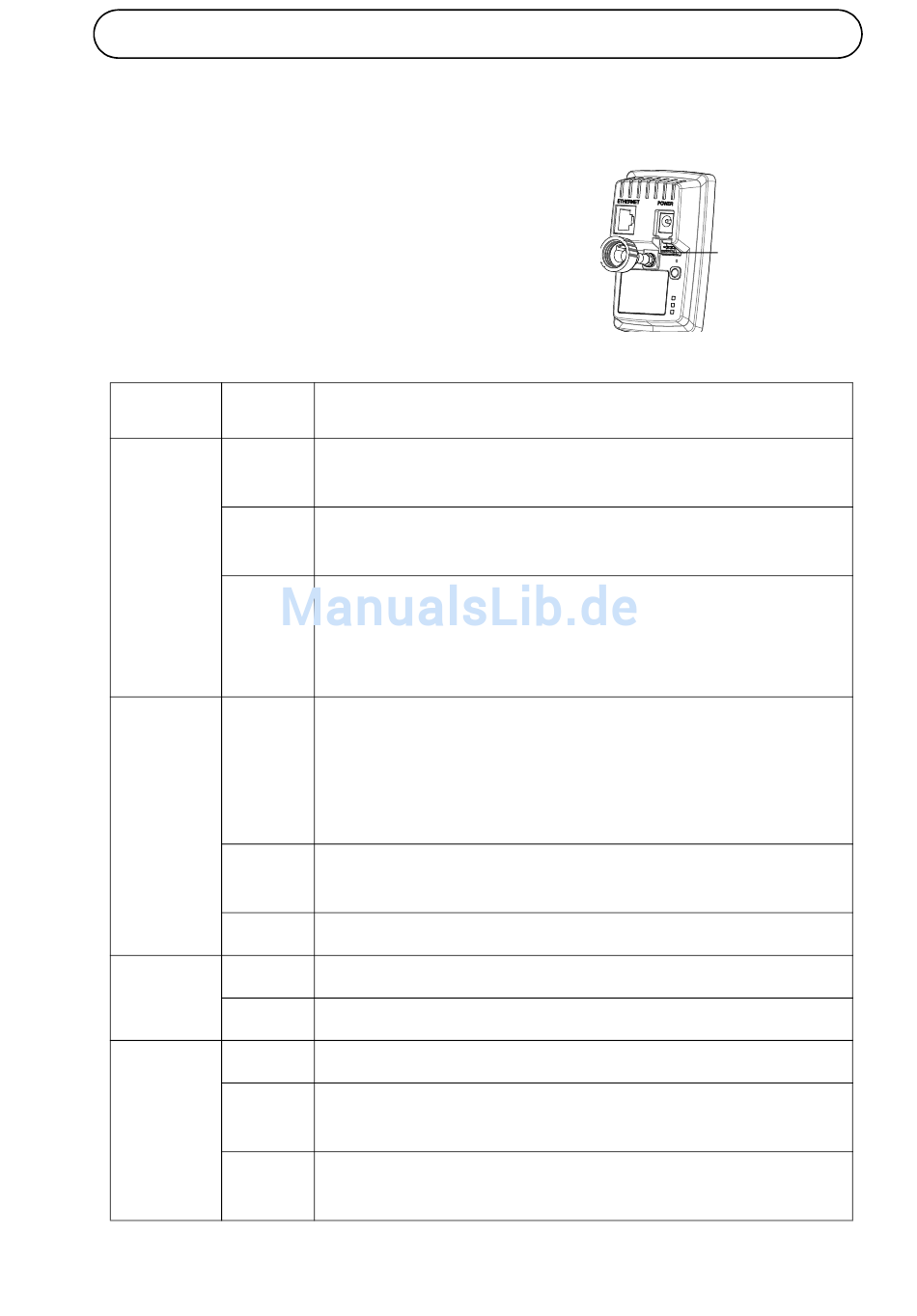

LED indicators

LED Color
Network Green
Amber
Unlit
Status Green
Amber
Red
Power Green
Amber
Wireless Unlit
Green
Red
Indication
Steady for connection to a 100 Mbit/s network. Flashes
for network activity.
Steady for connection to 10 Mbit/s network. Flashes for
network activity.
No network connection.
Note: Configure Network LED to be unlit during normal
operation, from Setup > System Options > LED settings.
See the online help files for more information.
Steady green for normal operation.
Note: Configure the Status LED to be unlit during normal
operation, or to flash only when the camera is accessed
from Setup > System Options > LED. See the online help
files for more information.
Steady during startup, reset to factory default or when
restoring settings.
Slow flash for failed upgrade.
Normal operation.
Flashes green/amber during firmware upgrade.
Wired mode.
Steady for connection to a wireless network. Flashes for
network activity.
Steady for no wireless network connection. Flashes when
scanning for wireless networks.
AXIS M10 Series
I/O connector
