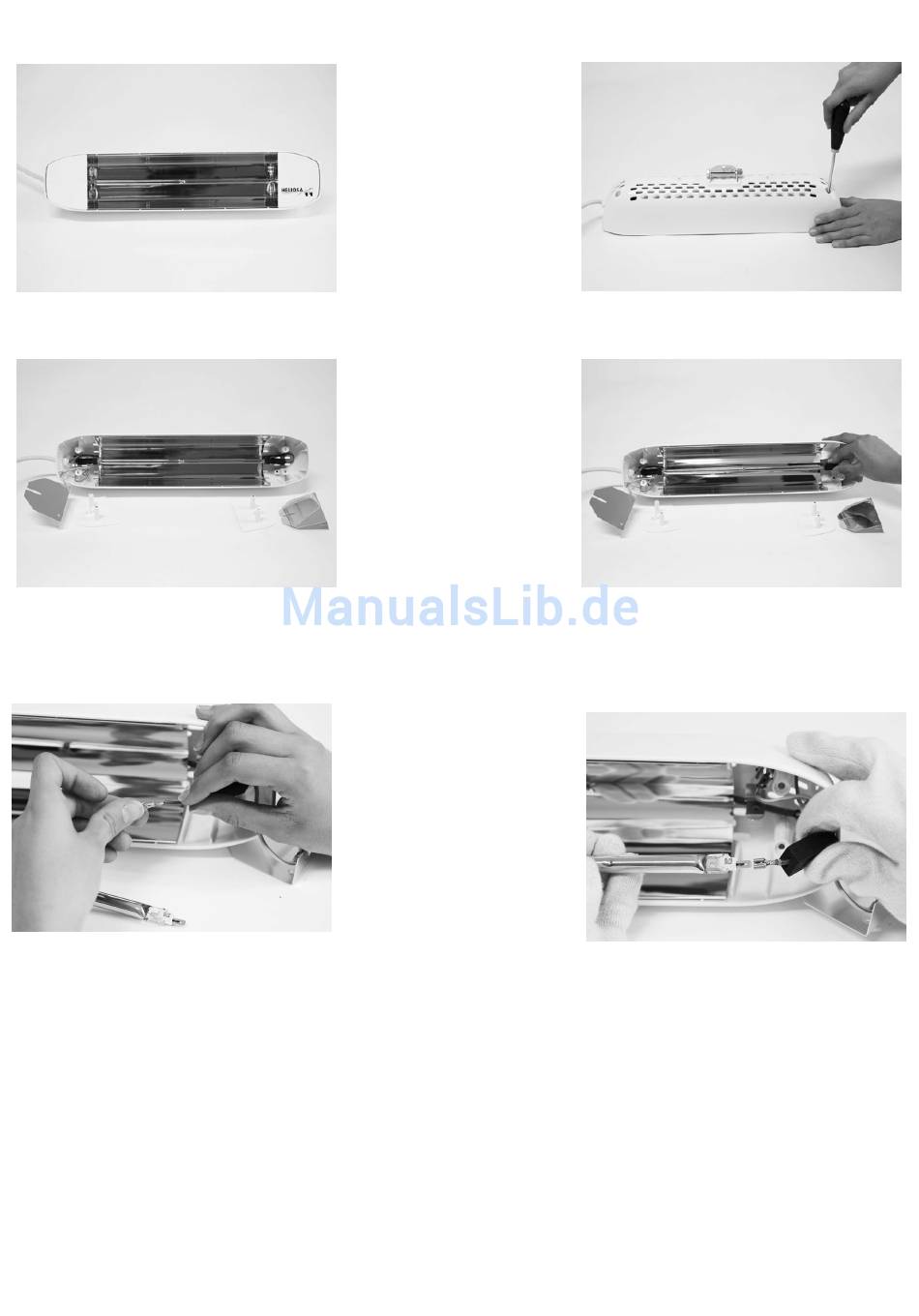

REPLACEMENT OF BULB (COD. 11BX5-11FMX5)
1. HELIOSA 11 HI DESIGN
3. ESTRACT THE BULB FROM THE SPRING CLIPS
5. IF WORN, APPLY THE SPARE HEAT-ELASTIC CAPS TO
REPLACE THOSE WHICH HAVE BEEN REMOVED. STRIP
THE CORDS (5-6 mm), APPLY THE NEW SPARE FASTONS
AND FASTEN THEM TO THE CORD.
2. UNSCREW THE 4 SCREWS ON THE BACK AND
REMOVE THE 2 SIDE COVERS AND THE 2 FRONT
COMPONENTS OF THE REFLECTOR.
4. REMOVE THE 2 BULB EXTREMITY HEAT-ELASTIC CAPS
AND DISCONNECT THE TWO FASTONS CONNECTING
CORDS TO THE BULB. IF THE CAPS USED DISPLAY SIGNS
OF WEAR AND TEAR, THESE MUST BE REMOVED BY
CUTTING THE CORDS NEXT TO THE 2 FASTONS.
6. CONNECT THE MALE FASTONS TO THE NEW BULB TO
THOSE OF THE TWO CORDS. COVER THEM WITH THE CAPS
AND REPOSITION THE BULB IN THE SEAT OF THE TWO
SPRING CLIP. DO NOT TOUCH THE BULB WITH YOUR BARE
HANDS. REASSEMBLE THE DEVICE BY PERFORMING THE
ABOVE TASKS IN REVERSE ORDER.
