1. Location

1.1 Position in relation to buildings
The excavated pit must be located within a minimum distance from a building. A structure
may only be built over the tank if the loads during construction do not exceed the traffic loads.
1.2 Traffic conditions
Load class A15 : pedestrians, cyclists. No special equipment required.
Load class B: passenger cars, minibus, max. total weight 3,5 tonnes, max. axle load - 2.2
tonnes. Special equipment required; see Figure 10a
Load class D: truck, max. total weight 40 tonnes - max. axle load 11,5 tonnes - installation in the
courtyard or driveway of a business or in a parking and unloading zone used by trucks. Special
equipment required; see Figure 10b.
1.3 Ground conditions
The tanks may only be submerged up to the top of the tank ("shoulder height"; see illustrations in
Section 4) in ground water or a high water table. The installation depth must be at least half as
deep as the immersion depth in the ground water/high water table (negative buoyancy).
In heavy ("wet") clay soil, the immersion depth may not exceed 250 mm.
1.4 Slopes
The soil in the area must be checked for stability (DIN 1054 Edition 1/2003, E DIN 4084 Edition
11/2002) and stabilized with a retaining system (i.e. a wall) if necessary. Additional information is
available from local public authorities and construction companies.
Premier Tech Aqua • Rewatec
Technical documentation
Underground container NEO
®
14/28

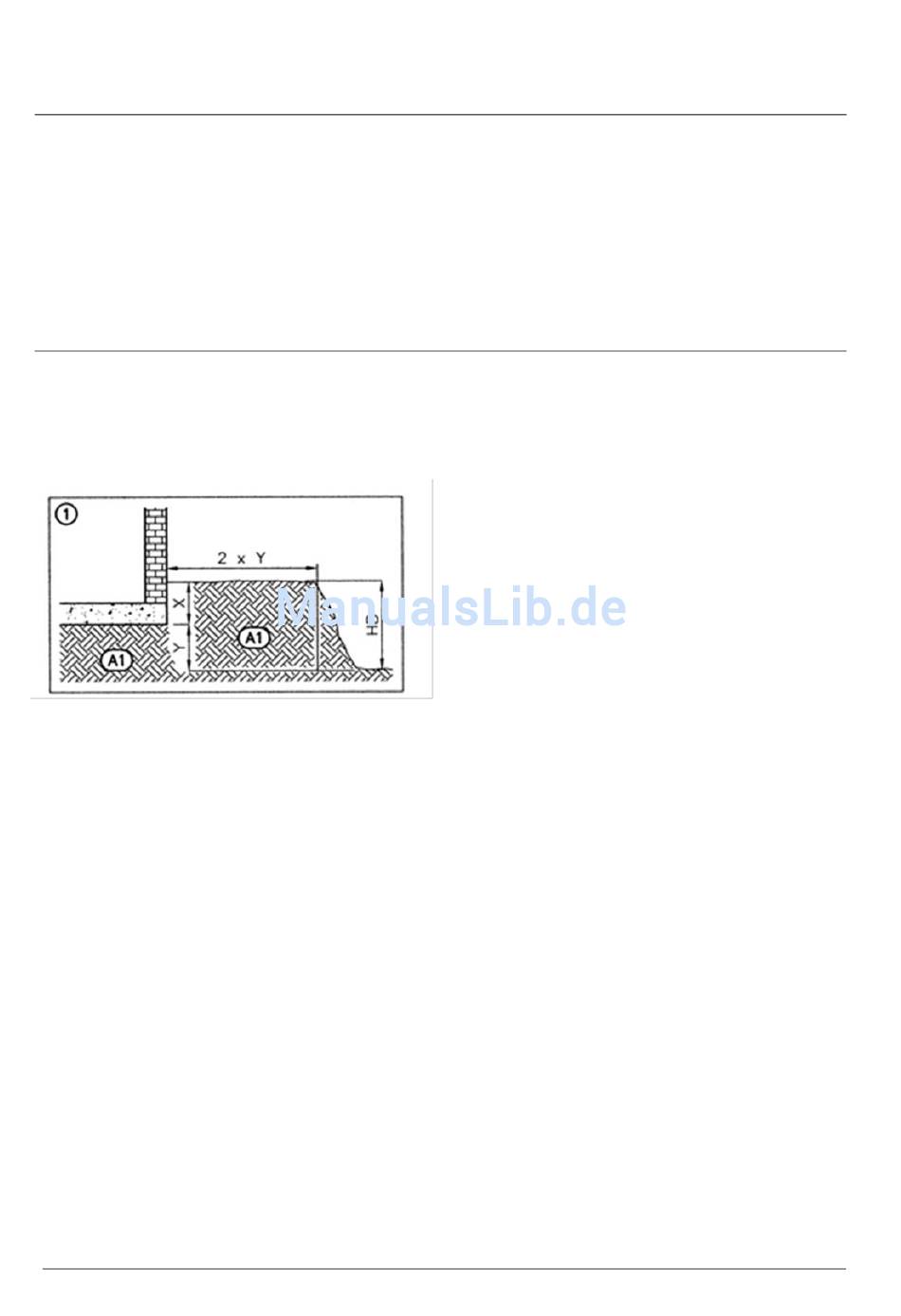

Y: Height difference between the lower edge of
the foundation and the bottom of the excavated
pit
HB: Depth of the excavated pit; see Figure 2a
and 2a
A1: In-situ soil; see also "Ground conditions".
NEO Flat tanks
DORW5001-21.09.2016
