Power Saving
Function
This monitor is capable of 3 states of reduced power
consumption.
By sensing the absence of one or both sync signals coming
from the host computer, it will reduce power consumption
as follows.
Power
State
Mode
consumption
Normal
≤ 140 W
1
operation
Standby
(1st step
≤ 100 W
2
of power
saving)
Suspend
(2nd step
≤ 15 W
3
of power
saving)
Active-off
(3rd step
≤ 5 W
4
of power
saving)
5 Power-off 0 W
Power Saving Operation
The H-sync is not present.
.
The unit goes into standby state.
The V-sync is not present.
.
The unit goes into suspend state.
Both the H-sync and V-sync are not present.
.
The unit goes into active-off state.
The monitor requires a videocard or screen saver software
which switches off one or both sync signals to activate the

power saving function.

Caution: The Power Saving function will automatically put
the monitor into the Active-off state if the power
switch is turned on without any video signal
input. Once the horizontal and vertical syncs are
sensed, the monitor will automatically return to
its Normal operation state.
12
Required POWER
u (power)
resumption SAVING
indicator
time indicator
— green on
off
approx.
orange on green on
3 sec.
approx.
orange on green on
3 sec.
approx.
orange on
10 sec.
—
off

Plug and Play

This monitor complies with the DDC
DDC2AB which are the Display Data Channel (DDC)
standards of VESA.
When a DDC1 host system is connected, the monitor
synchronizes with the V. CLK in accordance with the VESA
standards and outputs the EDID (Extended Display
Identification) to the data line.
When a DDC2B or DDC2AB host system is connected, the
monitor automatically switches to each communication.
DDC TM is a trademark of Video Electronics Standard
Association.

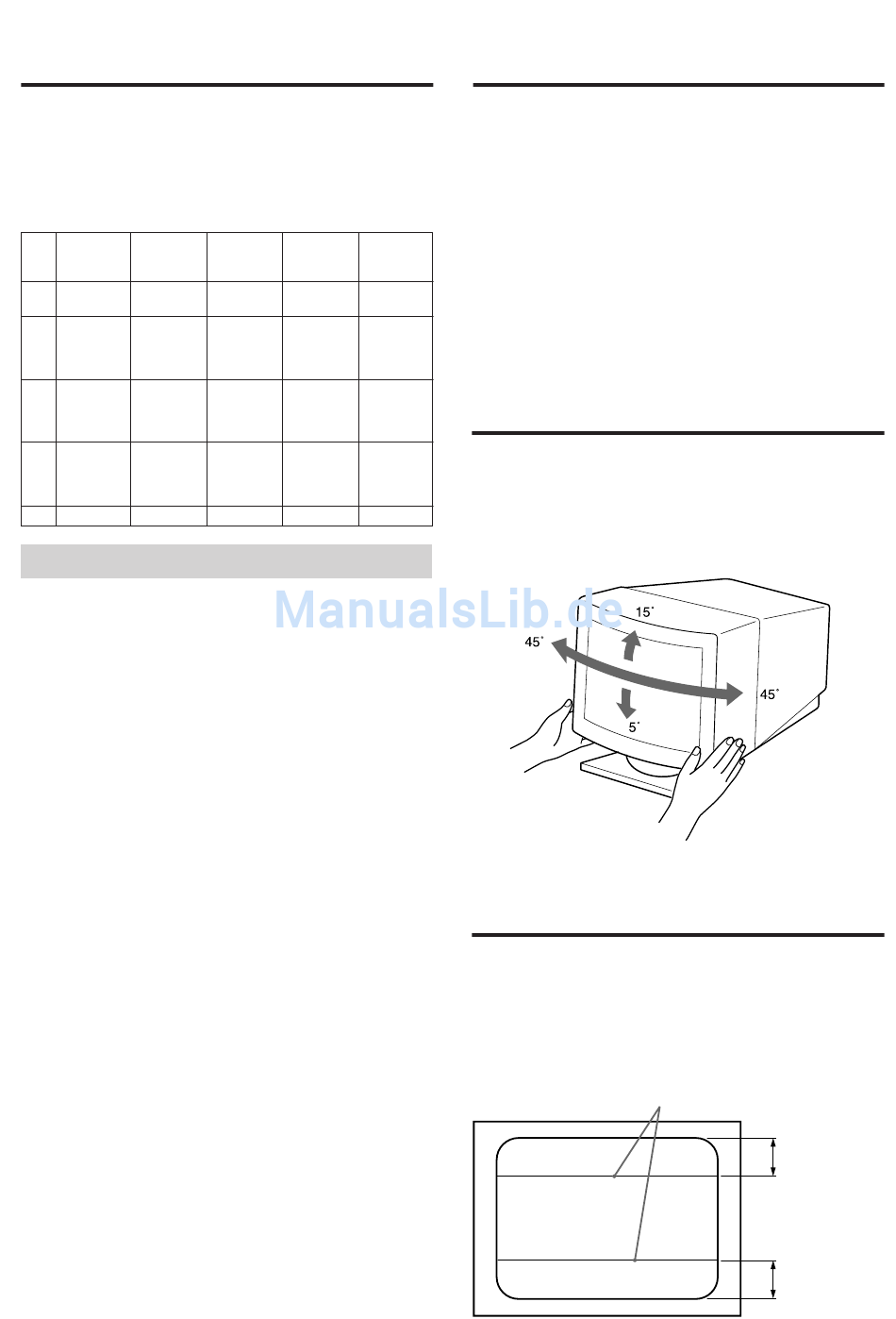

Use of the Tilt-Swivel

off
With the tilt-swivel, this unit can be adjusted to be viewed
at your desired angle within 90° horizontally and 20°
vertically.
off
To turn the unit vertically and horizontally, hold it at its
bottom with both hands as illustrated below.

Damper Wire

Using a white background, very thin horizontal stripes on
the screen are visible as shown below. These stripes are
damper wires. These wires are attached to the aperture
grille inside the Trinitron tube and are there to damp
vibrations of the aperture grille in order to prevent them
from influencing to the picture quality.
TM
1, DDC2B and
Damper wire
Approx. 6 cm
Approx. 6 cm
