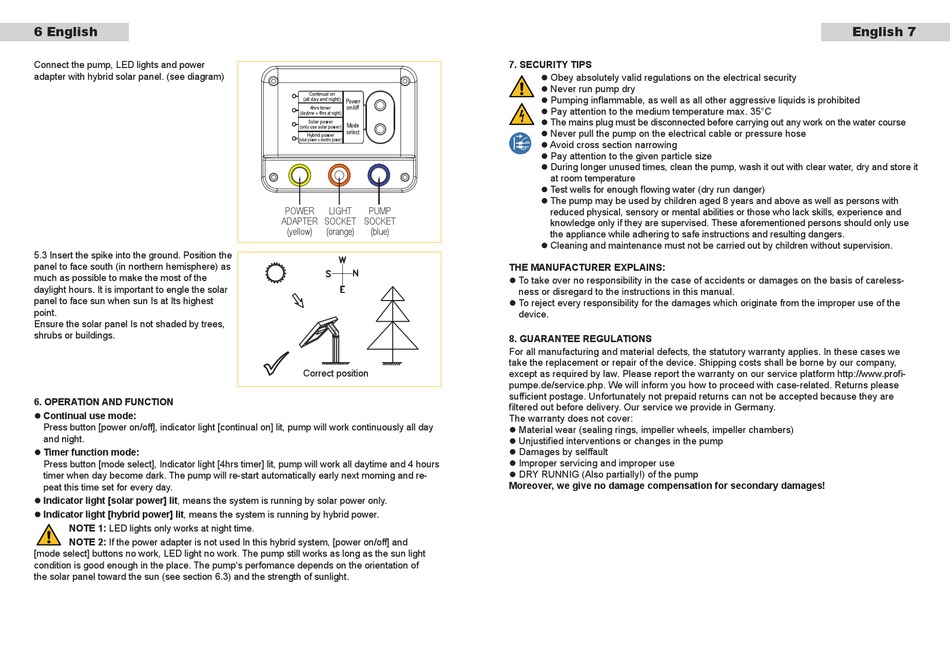

Guarantee Regulations - profi-pumpe GB02153-4 Bedienungsanleitung

6 English
Connect the pump, LED lights and power
adapter with hybrid solar panel. (see diagram)
5.3 Insert the spike into the ground. Position the
panel to face south (in northern hemisphere) as
much as possible to make the most of the
daylight hours. It is important to engle the solar
panel to face sun when sun Is at Its highest
point.
Ensure the solar panel Is not shaded by trees,
shrubs or buildings.
6. oPeratIon and FunCtIon
l Continual use mode:
Press button [power on/off], indicator light [continual on] lit, pump will work continuously all day
and night.
l timer function mode:
Press button [mode select], Indicator light [4hrs timer] lit, pump will work all daytime and 4 hours
timer when day become dark. The pump will re-start automatically early next moming and re-
peat this time set for every day.
l Indicator light [solar power] lit, means the system is running by solar power only.
l Indicator light [hybrid power] lit, means the system is running by hybrid power.
note 1: LED lights only works at night time.
note 2: If the power adapter is not used In this hybrid system, [power on/off] and
[mode select] buttons no work, LED light no work. The pump still works as long as the sun light
condition is good enough in the place. The pump's perfomance depends on the orientation of
the solar panel toward the sun (see section 6.3) and the strength of sunlight.
Continual on
(all day and night)
Power
on/off
4hrs timer
(daytime + 4hrs at night)
Solar power
Mode
(only use solar power)
select
Hybrid power
(solar power + electric power)
Power Light PuMP
adaPter Socket Socket
(yellow) (orange) (blue)
Correct position
7. SeCurIty tIPS
l Obey absolutely valid regulations on the electrical security
l Never run pump dry
l Pumping inflammable, as well as all other aggressive liquids is prohibited
l Pay attention to the medium temperature max. 35°C
l The mains plug must be disconnected before carrying out any work on the water course
l Never pull the pump on the electrical cable or pressure hose
l Avoid cross section narrowing
l Pay attention to the given particle size
l During longer unused times, clean the pump, wash it out with clear water, dry and store it
at room temperature
l Test wells for enough flowing water (dry run danger)
l The pump may be used by children aged 8 years and above as well as persons with
reduced physical, sensory or mental abilities or those who lack skills, experience and
knowledge only if they are supervised. These aforementioned persons should only use
the appliance while adhering to safe instructions and resulting dangers.
l Cleaning and maintenance must not be carried out by children without supervision.
the manuFaCturer exPlaInS:
l To take over no responsibility in the case of accidents or damages on the basis of careless-
ness or disregard to the instructions in this manual.
l To reject every responsibility for the damages which originate from the improper use of the
device.

8. guarantee regulatIonS

For all manufacturing and material defects, the statutory warranty applies. In these cases we
take the replacement or repair of the device. Shipping costs shall be borne by our company,
except as required by law. Please report the warranty on our service platform http://www.profi-
pumpe.de/service.php. We will inform you how to proceed with case-related. Returns please
sufficient postage. Unfortunately not prepaid returns can not be accepted because they are
filtered out before delivery. Our service we provide in Germany.
The warranty does not cover:
l Material wear (sealing rings, impeller wheels, impeller chambers)
l Unjustified interventions or changes in the pump
l Damages by selffault
l Improper servicing and improper use
l DRY RUNNIG (Also partially!) of the pump
moreover, we give no damage compensation for secondary damages!
English 7
