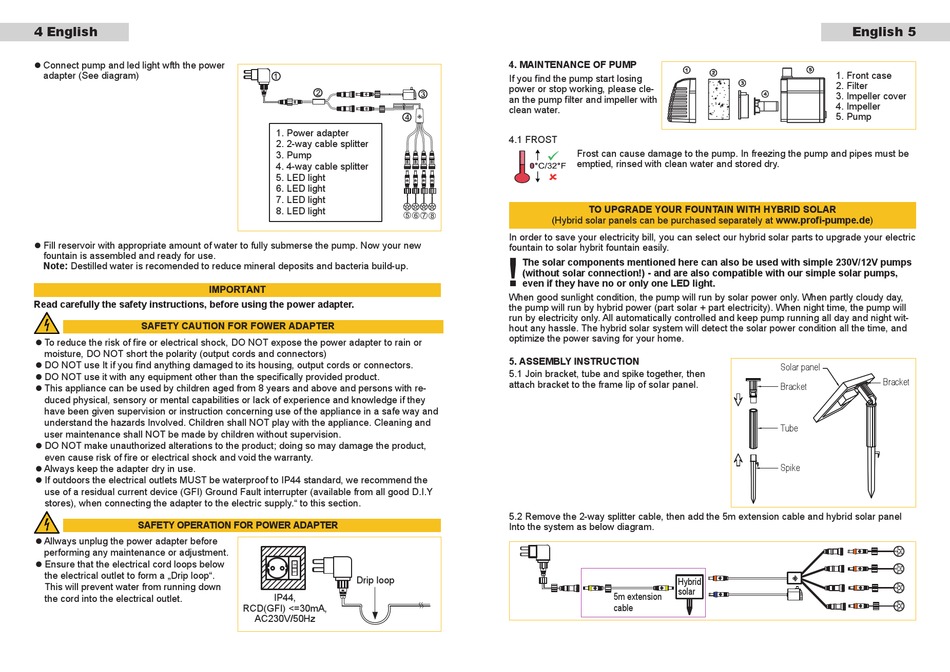

profi-pumpe GB02153-4 Bedienungsanleitung Seite 3

4 English
l Connect pump and led light wfth the power
adapter (See diagram)
l Fill reservoir with appropriate amount of water to fully submerse the pump. Now your new
fountain is assembled and ready for use.
note: Destilled water is recomended to reduce mineral deposits and bacteria build-up.
iMPORtANt
read carefully the safety instructions, before using the power adapter.
SaFety CautIon For FoWer adaPter
l To reduce the risk of fi re or electrical shock, DO NOT expose the power adapter to rain or
moisture, DO NOT short the polarity (output cords and connectors)
l DO NOT use It if you fi nd anything damaged to its housing, output cords or connectors.
l DO NOT use it with any equipment other than the specifi cally provided product.
l This appliance can be used by children aged from 8 years and above and persons with re-
duced physical, sensory or mental capabilities or lack of experience and knowledge if they
have been given supervision or instruction concerning use of the appliance in a safe way and
understand the hazards Involved. Children shall NOT play with the appliance. Cleaning and
user maintenance shall NOT be made by children without supervision.
l DO NOT make unauthorized alterations to the product; doing so may damage the product,
even cause risk of fi re or electrical shock and void the warranty.
l Always keep the adapter dry in use.
l If outdoors the electrical outlets MUST be waterproof to IP44 standard, we recommend the
use of a residual current device (GFI) Ground Fault interrupter (available from all good D.I.Y
stores), when connecting the adapter to the electric supply." to this section.
SaFety oPeratIon For PoWer adaPter
l Allways unplug the power adapter before
performing any maintenance or adjustment.
l Ensure that the electrical cord loops below
the electrical outlet to form a „Drip loop".
This will prevent water from running down
the cord into the electrical outlet.
1. Power adapter
2. 2-way cable splitter
3. Pump
4. 4-way cable splitter
5. LED light
6. LED light
7. LED light
8. LED light
Drip loop
IP44,
RCD(GFI) <=30mA,
AC230V/50Hz
4. maIntenanCe oF PumP
If you fi nd the pump start losing
power or stop working, please cle-
an the pump fi lter and impeller with
clean water.
4.1 FROST
Frost can cause damage to the pump. In freezing the pump and pipes must be
emptied, rinsed with clean water and stored dry.
to uPgrade your FountaIn WIth hybrId Solar
(Hybrid solar panels can be purchased separately at www.profi -pumpe.de)
In order to save your electricity bill, you can select our hybrid solar parts to upgrade your electric
fountain to solar hybrit fountain easily.
!
the solar components mentioned here can also be used with simple 230V/12V pumps
(without solar connection!) - and are also compatible with our simple solar pumps,
even if they have no or only one led light.
When good sunlight condition, the pump will run by solar power only. When partly cloudy day,
the pump will run by hybrid power (part solar + part electricity). When night time, the pump will
run by electricity only. All automatically controlled and keep pump running all day and night wit-
hout any hassle. The hybrid solar system will detect the solar power condition all the time, and
optimize the power saving for your home.
5. aSSembly InStruCtIon
5.1 Join bracket, tube and spike together, then
attach bracket to the frame lip of soIar panel.
5.2 Remove the 2-way splitter cable, then add the 5m extension cable and hybrid solar panel
Into the system as below diagram.
Hybrid
solar
5m extension
cable
English 5
1. Front case
2. Filter
3. Impeller cover
4. Impeller
5. Pump
Solar panel
Bracket
Bracket
tube
Spike
