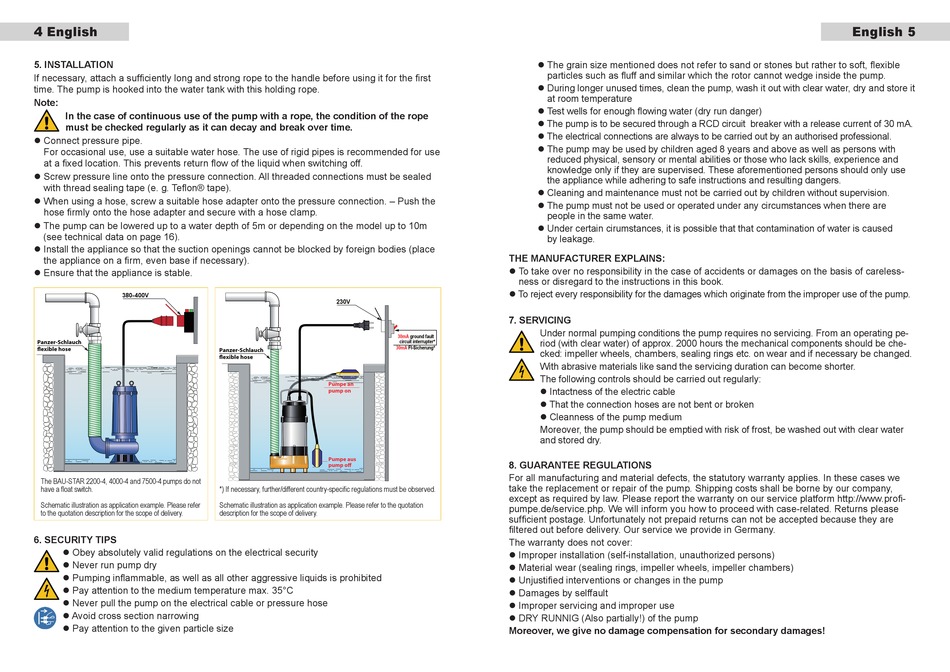

4 English

5. INSTALLATION

If necessary, attach a sufficiently long and strong rope to the handle before using it for the first
time. The pump is hooked into the water tank with this holding rope.
Note:
In the case of continuous use of the pump with a rope, the condition of the rope
must be checked regularly as it can decay and break over time.
l Connect pressure pipe.
For occasional use, use a suitable water hose. The use of rigid pipes is recommended for use
at a fixed location. This prevents return flow of the liquid when switching off.
l Screw pressure line onto the pressure connection. All threaded connections must be sealed
with thread sealing tape (e. g. Teflon® tape).
l When using a hose, screw a suitable hose adapter onto the pressure connection. – Push the
hose firmly onto the hose adapter and secure with a hose clamp.
l The pump can be lowered up to a water depth of 5m or depending on the model up to 10m
(see technical data on page 16).
l Install the appliance so that the suction openings cannot be blocked by foreign bodies (place
the appliance on a firm, even base if necessary).
l Ensure that the appliance is stable.
380-400V
Panzer-Schlauch
exible hose
The BAU-STAR 2200-4, 4000-4 and 7500-4 pumps do not
have a float switch.
Schematic illustration as application example. Please refer
to the quotation description for the scope of delivery.

6. SECURITy TIPS

l Obey absolutely valid regulations on the electrical security
l Never run pump dry
l Pumping inflammable, as well as all other aggressive liquids is prohibited
l Pay attention to the medium temperature max. 35°C
l Never pull the pump on the electrical cable or pressure hose
l Avoid cross section narrowing
l Pay attention to the given particle size
230V
30mA
30mA
Panzer-Schlauch
exible hose
Pumpe an
pump on
Pumpe aus
pump o
*) If necessary, further/different country-specific regulations must be observed.
Schematic illustration as application example. Please refer to the quotation
description for the scope of delivery.
l The grain size mentioned does not refer to sand or stones but rather to soft, flexible
particles such as fluff and similar which the rotor cannot wedge inside the pump.
l During longer unused times, clean the pump, wash it out with clear water, dry and store it
at room temperature
l Test wells for enough flowing water (dry run danger)
l The pump is to be secured through a RCD circuit breaker with a release current of 30 mA.
l The electrical connections are always to be carried out by an authorised professional.
l The pump may be used by children aged 8 years and above as well as persons with
reduced physical, sensory or mental abilities or those who lack skills, experience and
knowledge only if they are supervised. These aforementioned persons should only use
the appliance while adhering to safe instructions and resulting dangers.
l Cleaning and maintenance must not be carried out by children without supervision.
l The pump must not be used or operated under any circumstances when there are
people in the same water.
l Under certain cirumstances, it is possible that that contamination of water is caused
by leakage.
ThE MANUfACTURER ExPLAINS:
l To take over no responsibility in the case of accidents or damages on the basis of careless-
ness or disregard to the instructions in this book.
l To reject every responsibility for the damages which originate from the improper use of the pump.

7. SERVICING

Under normal pumping conditions the pump requires no servicing. From an operating pe-
ground fault
riod (with clear water) of approx. 2000 hours the mechanical components should be che-
circuit interrupter*
FI-Sicherung*
cked: impeller wheels, chambers, sealing rings etc. on wear and if necessary be changed.
With abrasive materials like sand the servicing duration can become shorter.
The following controls should be carried out regularly:
l Intactness of the electric cable
l That the connection hoses are not bent or broken
l Cleanness of the pump medium
Moreover, the pump should be emptied with risk of frost, be washed out with clear water
and stored dry.

8. GUARANTEE REGULATIONS

For all manufacturing and material defects, the statutory warranty applies. In these cases we
take the replacement or repair of the pump. Shipping costs shall be borne by our company,
except as required by law. Please report the warranty on our service platform http://www.profi-
pumpe.de/service.php. We will inform you how to proceed with case-related. Returns please
sufficient postage. Unfortunately not prepaid returns can not be accepted because they are
filtered out before delivery. Our service we provide in Germany.
The warranty does not cover:
l Improper installation (self-installation, unauthorized persons)
l Material wear (sealing rings, impeller wheels, impeller chambers)
l Unjustified interventions or changes in the pump
l Damages by selffault
l Improper servicing and improper use
l DRY RUNNIG (Also partially!) of the pump
Moreover, we give no damage compensation for secondary damages!
English 5
