Installation Instruction
Sensor - separate version

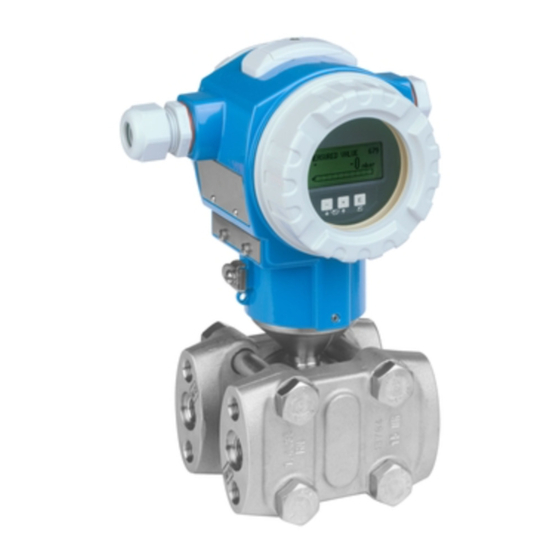

Deltabar S PMD75
EA01010P/00/A2/02.14
71244578
Instruction is valid for the following spare parts:
Order number
Order-code
52020722
PMD75X-
We recommend that the Installation Instruction be kept with the packaging at all times.
Designated use
The spare part set and Installation Instruction are used to replace a faulty unit with a functioning unit of the same type.
Use genuine parts from Endress+Hauser only.
Only original spare part, intended by Endress+Hauser for the measuring device, shall be used.
The verification has to be done via Online Support, this procedure is explained below.
For some devices there is an overview of the correct spare part set inside the connection compartment cover.
If the spare part is listed there, the verification is not required.
www.endress.com/support
1.
Device specific information
2.
3.
Ser. No.:12345
Authorized personnel to carry out repairs
Authorization to carry out a repair depends on the approval of the measuring device. The table shows the respective group of persons for each.
The person who carries out the repair is responsible for safety during the work, the quality of work completed and safety of the device
after repair.
Approval of the measuring device
Without approval
With approval (for Ex. IECEx, ATEX, FM, CSA, TIIS, NEPSI)
1 = Trained customer technician, 2 = Service technician authorized by Endress+Hauser, 3 = Endress+Hauser (send measuring device back to manufacturer)
Original Spare part set
Sensor Deltabar S PMD75
4.
=
?
5.
www.endress.com/support
Choose device specific information.
Enter the serial number (Ser. No.), search for product data and click on
"spare parts".
List of all spare parts suitable for the instrument.
Check the order number of the spare part.
Does the order number of spare part correspond to the order number in
the spare part list?
YES, the spare part can be used.
NO, the spare part may not be used.
Group of persons authorized to carry out repairs
71244578
1, 2, 3
1, 2, 3
