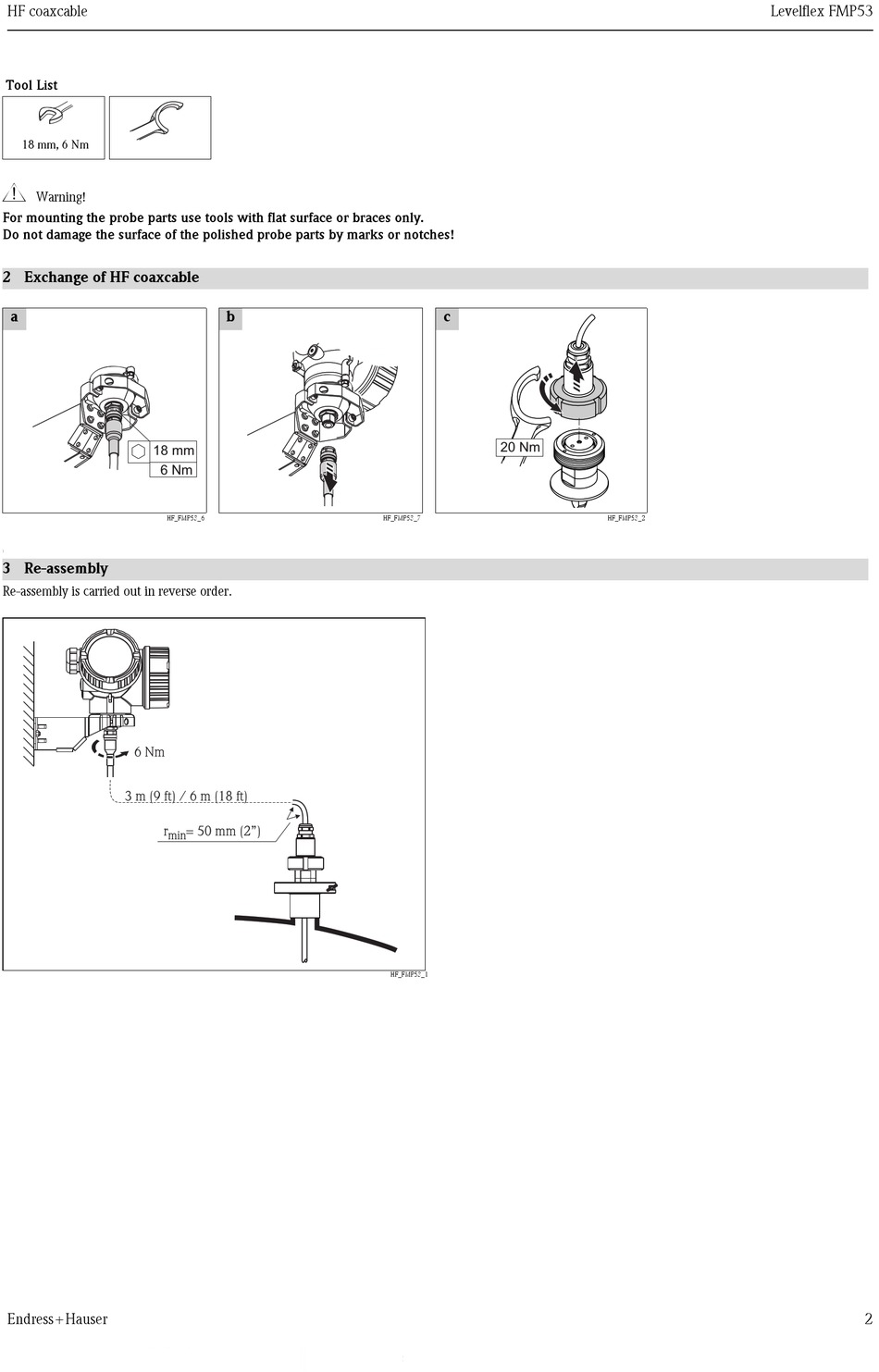

Endress+Hauser Levelflex FMP53 Einbauanleitung Seite 2

HF coaxcable
Tool List
18 mm, 6 Nm
#
Warning!
For mounting the probe parts use tools with flat surface or braces only.
Do not damage the surface of the polished probe parts by marks or notches!
2 Exchange of HF coaxcable
a
18 mm
6 Nm
HF_FMP53_6
)
3 Re-assembly
Re-assembly is carried out in reverse order.
6 Nm
3 m (9 ft) / 6 m (18 ft)
r
min
Endress + Hauser
b
= 50 mm (2")
c
20 Nm
HF_FMP53_7
HF_FMP53_1
Levelflex FMP53
HF_FMP53_2
2
