Betriebsanleitung
Deutsch
IP-DECT Mehrzellen-Server
Instructions
English
IP DECT Multicell Server

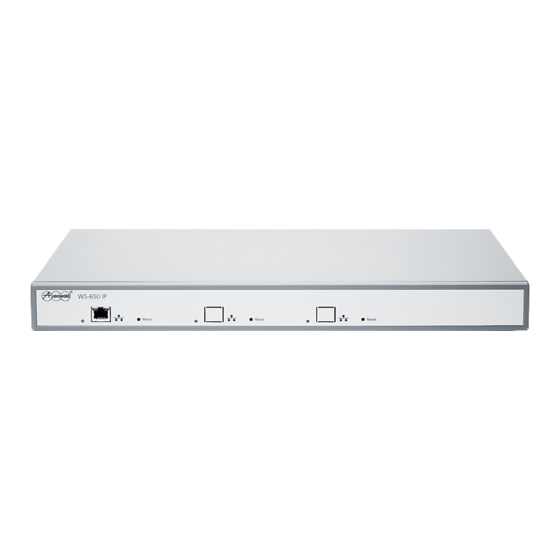

COMfortel€ WS-650 IP
Kontaktdaten (de) / Contact Data (en)
Hersteller/Manufacturer: Auerswald GmbH & Co. KG,
Hordorfer Str. 36, D-38162 Cremlingen
www.auerswald.de
Anleitungen (de) / Manuals (en)
Die Anleitung „Operation Guide" finden Sie im Internet. Nach einem Firmware-Update
benötigen Sie ggf. eine aktualisierte Anleitung. Diese finden Sie im Internet. (de)
You can find the "Operation Guide" manual on the Internet. After a firmware update you
usually require a new version of the manual. You will find up-to-date manuals on the
Internet. (en)
Konformitätserklärung (de) / Declaration of Conformity (en)
Dieses
Gerät
entspricht
den
grundlegenden
Gesundheits-,
Sicherheits-
und
Umweltanforderungen
aller
relevanten
europäischen
Richtlinien.
Die
Konformitätserklärung kann im Internet eingesehen werden. (de)
This device complies with the essential health, safety and environmental requirements of
all relevant European Directives. The declaration of conformity can be viewed on the
Internet. (en)
Copyright
ˆ Auerswald GmbH & Co. KG, D-38162 Cremlingen, 2017
Trademarks
All trademarks mentioned are the property of the corresponding manufacturer.

Werbung

Inhaltsverzeichnis
loading

Inhaltszusammenfassung für Auerswald COMfortel WS-650 IP

  • Seite 1 This device complies with the essential health, safety and environmental requirements of all relevant European Directives. The declaration of conformity can be viewed on the Internet. (en) Copyright ˆ Auerswald GmbH & Co. KG, D-38162 Cremlingen, 2017 Trademarks All trademarks mentioned are the property of the corresponding manufacturer.
  • Seite 2: Inhaltsverzeichnis

    SIP-Einstellungen............... 13 DECT-Handset einrichten ..........14 DECT-Handset am IP-DECT Server anmelden....... 15 Anhang ................... 16 Update ..................16 IP-DECT Server reinigen ............16 Lizenzen/Licenses ..............28 End user license agreement (EULA) ........28 COMfortel WS-650 IP - Betriebsanleitung V04 08/2017...
  • Seite 3 Configuring a DECT Handset..........24 Registering a DECT Handset to the IP DECT Server....25 Appendix ................27 Update ..................27 Cleaning the IP DECT Server..........27 Lizenzen/Licenses ..............28 End user license agreement (EULA) ........28 COMfortel WS-650 IP - Instructions V04 08/2017...
  • Seite 4: Wichtige Informationen

    Schlag führen oder das Gerät beschädigen oder zerstören. Verzichten Sie während eines Gewitters auf das Trennen und Anschließen von Leitungen. Lassen Sie von einer Elektrofachkraft alle Kabel innerhalb des Gebäudes verlegen. COMfortel WS-650 IP - Betriebsanleitung V04 08/2017...
  • Seite 5: Bestimmungsgemäße Verwendung

    Sie Ihren Fachhändler. Lesen Sie die zum Gerät gehörenden Anleitungen und bewahren Sie diese zum späteren Gebrauch auf. Bei dem COMfortel WS-650 IP handelt es sich um einen IP- DECT Mehrzellenerver zum Aufbau eines IP-DECT Wireless- Systems innerhalb von geschlossenen Gebäuden.
  • Seite 6: Technische Daten

    Bis zu 256 COMfortel WS-Base Bis zu 3 COMfortel WS-Repeater pro COM- fortel WS-Base 30 bis 4096 COMfortel DECT-Handsets (schrittweise skalierbar auf 30, 150, 1500 und 4096 Handsets) Gehäuse Geschlossener 19-Zoll-Einschub, 1 HE COMfortel WS-650 IP - Betriebsanleitung V04 08/2017...
  • Seite 7: Lieferumfang

    Unfreie Sendungen können wir leider nicht annehmen. Garantiebedingungen 1. Die Auerswald GmbH & Co. KG, Vor den Grashöfen 1, D-38162 Cremlingen, gewährt als Her- steller auf dieses Produkt 24 Monate Herstellergarantie ab Kaufdatum. 2. Dies bedeutet für Sie als Verbraucher: Wir garantieren, dass unsere Geräte bei der Übergabe fehlerfrei sind und sorgen 24 Monate ab diesem Datum für eine kostenlose Reparatur oder liefern...
  • Seite 8 4. Sie können diese Garantie nur in Anspruch nehmen, wenn Sie das fehlerhafte Gerät mit einem eindeutigen Kaufbeleg (Rechnung oder Kassenbeleg) auf Ihre Kosten an die Auerswald GmbH & Co. KG bzw. außerhalb Deutschlands an unseren Generalimporteur oder Distributor vor Ort ein- senden.
  • Seite 9: Vorbereitung

    Vorbereitung Vorbereitung Dieser Abschnitt beschreibt die vor der Inbetriebnahme des Geräts notwendigen Vorbereitungen. IP-DECT Server im Rack montieren Der COMfortel WS-650 IP ist für die Montage in einem 19-Zoll- Rack vorgesehen. Voraussetzungen – Werkzeug und Material: Schraubendreher í Die im Lieferumfang enthaltenen Befestigungswinkel und í...
  • Seite 10 Vorbereitung Befestigen Sie die Befestigungswinkel mithilfe von 4 Schrau- ben am Gehäuse. Schieben Sie das Gehäuse in das Rack ein. Befestigen Sie das Gehäuse mithilfe von 4 Schrauben an den Befestigungswinkeln im Rack. COMfortel WS-650 IP - Betriebsanleitung V04 08/2017...
  • Seite 11: Inbetriebnahme

    Die LED auf der Vorderseite des Gehäuses blinkt rot und leuchtet anschließend grün, sobald der IP-DECT Server konfiguriert ist. Konfigurationsmanager öffnen Voraussetzungen – Bestehende Netzwerkverbindung zwischen dem PC und dem IP-DECT Server. – Kenntnis der IP-Adresse des IP-DECT Servers COMfortel WS-650 IP - Betriebsanleitung V04 08/2017...
  • Seite 12: Ip-Dect Server Einrichten

    DHCP assigned: Der IP-DECT Server bezieht seine IP- í Adresse automatisch von einem DHCP-Server. Nur bei Use Static IP Adress: Geben Sie im Eingabefeld IP addr die IP-Adresse des IP- í DECT Servers ein. COMfortel WS-650 IP - Betriebsanleitung V04 08/2017...
  • Seite 13: Sicherheitseinstellungen

    Wichtig: Bei Betrieb an Auerswald-TK-Anlagen empfehlen wir, die Codec-Priorität folgendermaßen einzustellen: 1: PCMA/8000 (G.711 A-law) 2-6: None Bei Betrieb an TK-Anlagen anderer Hersteller stellen Sie die Codec-Priorität entsprechend der verfügbaren Codecs ein. Klicken Sie auf Save > OK. COMfortel WS-650 IP - Betriebsanleitung V04 08/2017...
  • Seite 14: Dect-Handset Einrichten

    Richten Sie mind. eine COMfortel WS-Base Mehrzellen- Basis ein (siehe Anleitung der COMfortel WS-Base). Hinweis: Zum Betrieb eines IP-DECT Mehrzellen-Systems mit einem COMfortel WS-650 IP benötigen Sie mind. eine COMfortel WS-Base Mehrzellen-Basis. Melden Sie die DECT-Handsets am IP-DECT Server an.
  • Seite 15: Dect-Handset Am Ip-Dect Server Anmelden

    Zugangscode ein (z. B. 1234). Blättern Sie zu Benutzer-ID und geben Sie die Benutzer-ID (Username/Extension) ein, z. B. 100. Drücken Sie den Softkey OK. Hinweis: Weitere Informationen zum DECT-Handset siehe Anleitung des DECT-Handsets. COMfortel WS-650 IP - Betriebsanleitung V04 08/2017...
  • Seite 16: Anhang

    Gerät beschädigen oder zerstören. Reinigen Sie das Gehäuse des Geräts nur mit einem leicht feuchten Tuch oder einem Antistatiktuch. Achtung: Die Oberfläche kann durch Reinigungsmittel beschädigt werden. Verwenden Sie keine scharfen oder lösemittelhaltigen Reini- gungsmittel. COMfortel WS-650 IP - Betriebsanleitung V04 08/2017...
  • Seite 17: Important Information

    Do not connect or disconnect power cables during an electri- cal storm. Hire a qualified electrician to lay the cables within the building. Protect the devices by installing overvoltage protection. COMfortel WS-650 IP - Instructions V04 08/2017...
  • Seite 18: Proper Use

    COMpact 5200/5200R/5500R í COMmander 6000/R/RX í The COMfortel WS-650 IP is designed to be used in closed, dry rooms. To configure the wireless system via the Configuration Manager you must use a PC which is running in the same network (sub- net).
  • Seite 19: Technical Data

    Closed 19-inch slide-in unit, 1 height unit Module slots 2 module slots for media resources Colours Grey Dimensions 440 mm x 199 mm x 44 mm (W x H x D) Weight Approx. 2350 g Safety COMfortel WS-650 IP - Instructions V04 08/2017...
  • Seite 20: Scope Of Delivery

    (handover). 4. You can only claim against this warranty if you return the faulty device to Auerswald GmbH & Co. KG or our local general importer or distributor, outside Germany, at your own cost, with a valid proof of purchase (invoice or till receipt).
  • Seite 21: Preparation

    Use 4 screws to attach the support brackets to the casing. Push the casing into the rack. Use 4 screws to secure the casing via the support brackets in the rack. COMfortel WS-650 IP - Instructions V04 08/2017...
  • Seite 22: Commissioning

    Knowledge of the IP DECT server's IP address Note: If a DHCP server is set up in the local network, the IP DECT server will get its IP address from this DHCP server. You can COMfortel WS-650 IP - Instructions V04 08/2017...
  • Seite 23: Configuring The Ip Dect Server

    í Enter the Gateway in the Gateway entry field. í Under NTP, enter the NTP server's IP address in the Server entry field. Select the time zone from the Time zone list field. COMfortel WS-650 IP - Instructions V04 08/2017...
  • Seite 24: Security Settings

    Enter the PBX's IP address in the Default domain entry field. Select the priority of codecs in the Codec priority list fields. Note: During operation on Auerswald PBXs, we recommend the following codec priority configuration: 1: PCMA/8000 (G.711 A-law) 2-6: None During operation on PBXs from other manufacturers, configure the codec priority according to the available codecs.
  • Seite 25: Registering A Dect Handset To The Ip Dect Server

    Register the DECT handsets to the IP DECT server. Registering a DECT Handset to the IP DECT Server Requirements – Enabled Subscription allowed check box in the IP DECT server‘s configuration manager under Configuration > Wireless Server. COMfortel WS-650 IP - Instructions V04 08/2017...
  • Seite 26 Enter the access code under AC code (e. g. 1234). Scroll to User ID and enter the User ID (username/exten- sion), e. g. 100. Press the OK soft key. Note: See the instructions for the DECT handset for further infor- mation. COMfortel WS-650 IP - Instructions V04 08/2017...
  • Seite 27: Appendix

    Only clean the casing of the device with a slightly damp cloth or an anti-static cloth. Caution: Cleaning agents may damage the surface. Do not use caustic or solvent-containing cleaning agents. COMfortel WS-650 IP - Instructions V04 08/2017...
  • Seite 28: Lizenzen/Licenses
