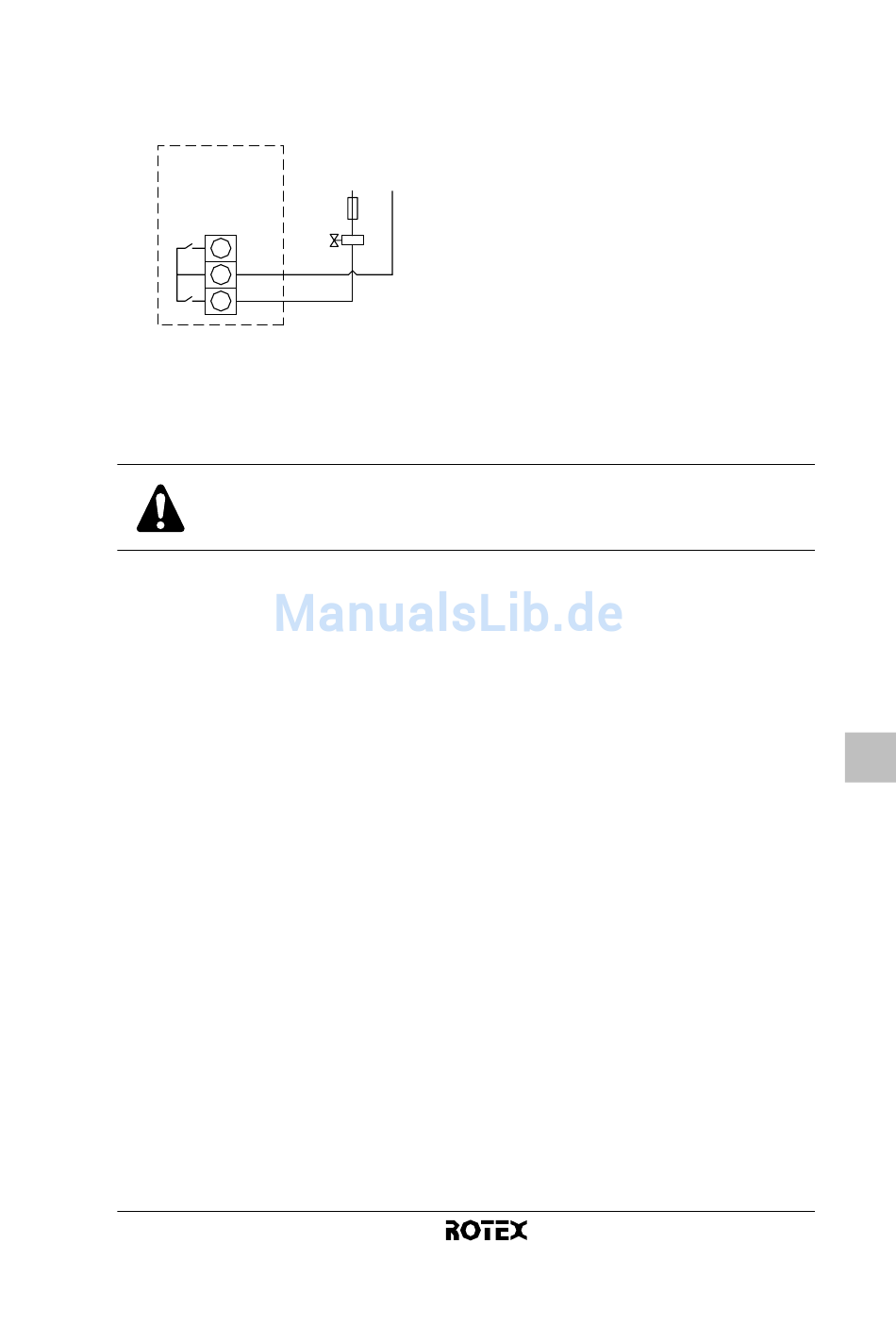

7b When connected to the motorized valve, wire the motorized
valve and the thermostat as shown below (for heating-only
applications).
RKRTW
X1M
C
com
H
The output relays (H and C are voltage-free contacts) can
handle a maximum load of 5 A - 230 VAC.
8 Fasten the thermostat with the supplied screws.
Be careful not to pinch the wiring when fastening.
9 Put the transparent cable protection back into place and fix
the cable protection with the screw.
10 Close the thermostat cover.
11 Remove the protective film from the LCD.
