Endress+Hauser Dosimass 8BE Einbauanleitung Seite 2

Electronic Modul and Component Parts
1 Safety Instructions
• Comply with national regulations governing mounting, electrical installation,
commissioning, maintenance and repair procedures. (Available sources,
e.g. series of standards IEC 60364 and IEC 60079-14/-17/-19).
• Requirements with regard to specialized technical staff for the mounting,
electrical installation, commissioning, maintenance and repair of the
measuring devices:
– trained in instrument safety
– familiar with the individual protection concepts of the devices
– for Ex-certified measuring devices: also trained in explosion protection
• The spare parts set and Installation Instructions are used to replace a faulty unit
with a functioning unit of the same type.
Only use genuine parts from Endress+Hauser.
• Using the material number and identification information, check whether the
spare part matches the identification label on the measuring device.
• If you have any questions, contact your E+H service organization.
• Modifications to the measuring device are not permitted.
• Follow all measuring device documentation.
• In the case of Ex-certified measuring devices: Comply with the installation
instructions and operating conditions in the supplementary
Ex-documentation.
• In the case of measuring devices in pressure systems requiring official approval:
Comply with the installation instructions and operating conditions in the
special documentation for the pressure equipment directive.
• Before removing the device, stop the process and purge the pipe of dangerous
gases and liquids.
• Hot surfaces! Risk of injury!
• Before commencing work, allow the system and measuring device to cool
down to a touchable temperature.
• In the case of measuring devices in custody transfer, the custody transfer status
no longer applies once the lead seal has been removed.
• In the case of measuring devices in safety-related applications in accordance
with EN 61508 or EN 61511, reconfigure and test following any repair.
Document the repair procedure in accordance with the applicable standard(s).
• In the case of Ex-certified measuring devices: Only open in a de-energized
state (once a delay of 10 minutes has elapsed after switching off the power
supply) or in environments which do not have a potentially explosive
atmosphere.
• After removing the electronics cover, there is a risk of electric shock as shock
protection is removed!
• Switch off the measuring device before removing internal covers.
• Service connector:
– do not connect in potentially explosive atmospheres.
– only connect to Endress+Hauser service devices.
• Only open housing for a brief period. Avoid the penetration of foreign bodies,
moisture or contaminants.
• To regain the (explosion) protection of the measuring device:
– seal the openings with genuine covers
– seal cable entries with approved components suitable for the (explosion)
protection.
• Replace defective seals / gaskets by genuine parts from Endress+Hauser only.
• Threads (e.g. of the cover for the electronics and connection compartments)
must be lubricated. Use an acid-free, non-hardening grease if an abrasion
resistant dry lubricant is non-existent.
• If threads are damaged or defective, the measuring device must be repaired.
• If spacing is reduced or the dielectric strength of the measuring device cannot
be guaranteed during repair work, perform a test on completion of the work
(e.g. high-voltage test in accordance with the manufacturer's instructions).
• Risk of damaging electronic components!
• Ensure you have a working environment protected from electrostatic
discharge.
• Danger: Risk of electric shock! Only open the measuring device in
a de-energized state.
• Observe the instructions for transporting and returning the device outlined in
the Operating Instructions.
Endress+Hauser

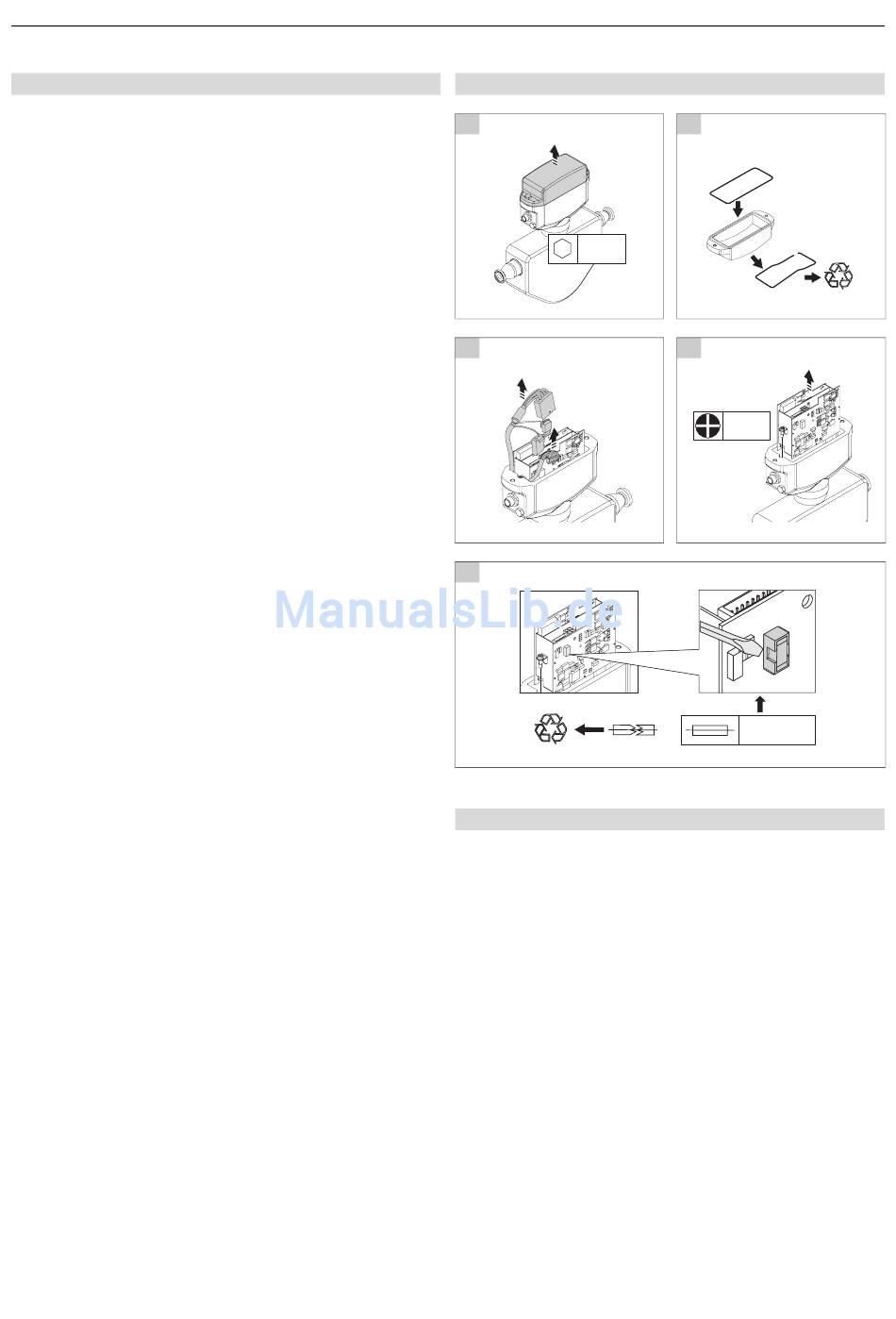

2 Exchange gasket, electronic, fuse
a
10 mm
c
e
3 Re-assembly
Re-assembly is carried out in reverse order, unless otherwise instructed.
Dosimass 8BE
b
A0011711
d
Ph1
A0011710
T 2A00/125
A0011709
A0011712
A0011713
2
