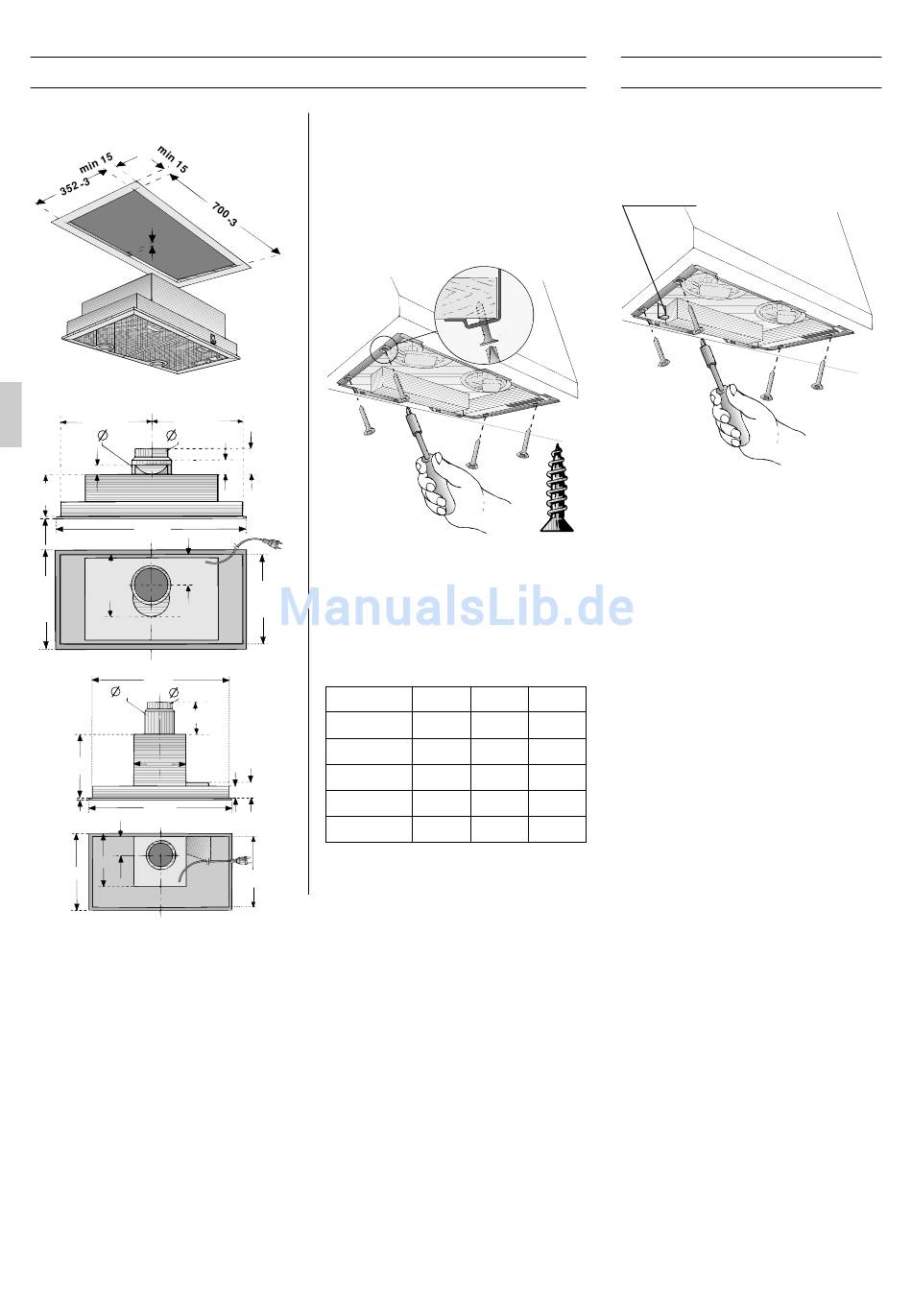

Installation
Extractor hood with slide control, 73 cm
wide, 1 and 2-motor
16
348 348
150 120
35
160
9
730
100
225
380
696
150 120
160
230
310
9
730
95
250
380
18
1. Remove the filter grille (see operating
instructions).
2. Connect the power.
3. Press the extractor hood up into the
installation opening until the installation
aid locks into position at the front and
rear.
4. Screw in the extractor hood.
55 95
5. Insert and secure the filter grille (see
operating instructions).
346
Weight in kg:
Model
1-motor
Rocker switch
1-motor
Slide control
1-motor
Slide control
80
60
2-motor
Slide control
2-motor
Slide control
Design changes with respect to technical development
shall remain withheld
346
Exhaust Recircu
Width
lated air
air
53 cm 5,0 6,3
53 cm 9,5 10,7
73 cm 10,3 11,6
53 cm 8,3 9,5
73 cm 8,7 9,9
Removal
1. Loosen the screws.
2. Hold the underside of the extractor
hood, Hold the underside of the extrac-
tor hood.
Installation spring
3. Lower the extractor hood and remove.
