1
2
3
9
10
14

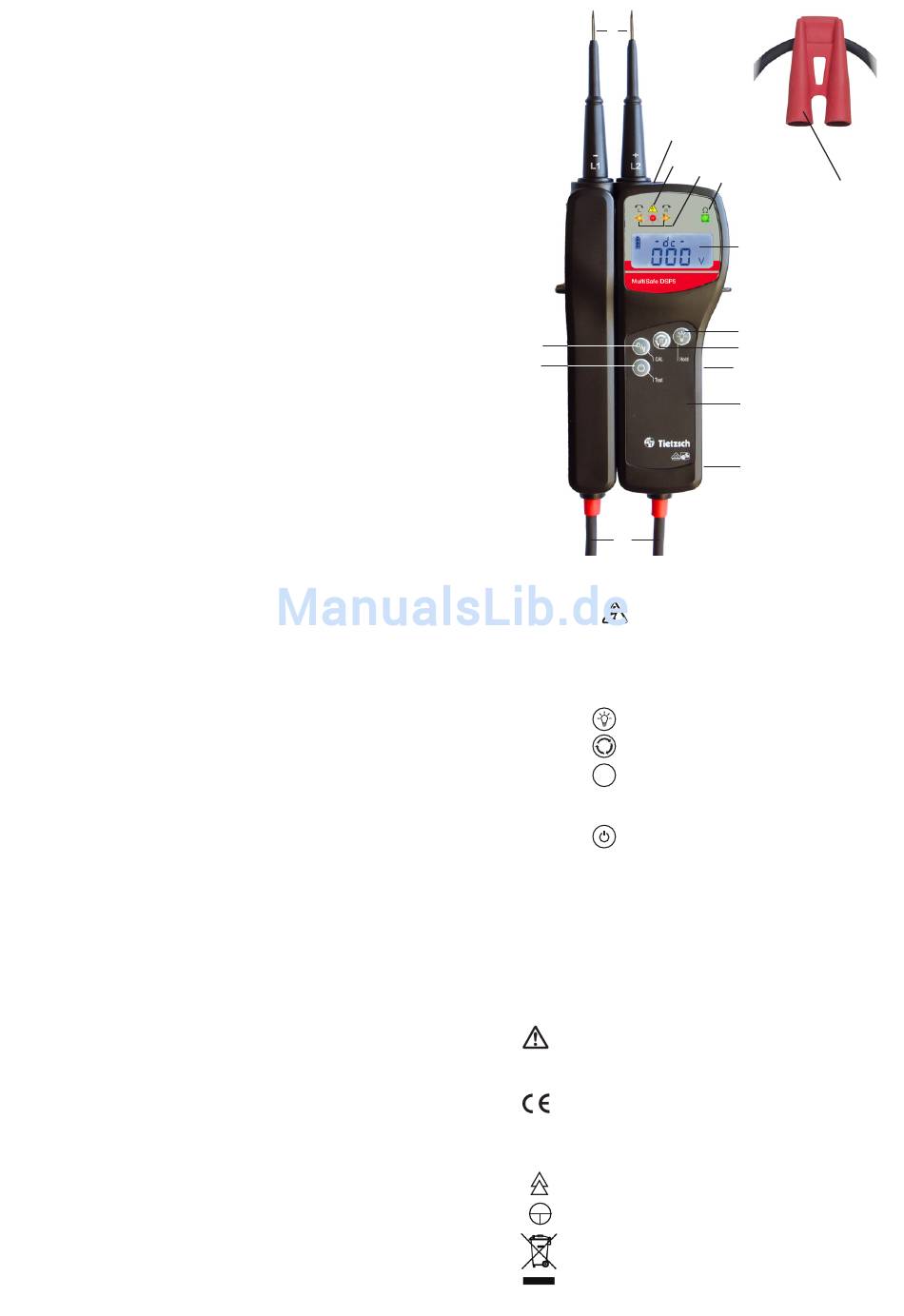

1 Test electrodes
2 Flashlight
3 Red LED
for hazardous voltage
≥ 50 V AC / 120 V DC + Phase test
4 Orange LEDs for rotating field left/right
5 Green LED „Ω" for continuity 0 ... 999 kΩ
6 Display (LCD)
7 Button
: for flashlight and function HOLD
8 Button
: rotating field for IT-powergrids
IT
9 Button
: change-over switch for
Ω /
V
resistance and voltage measurements and
zero balancing of the kΩ range
10 Button
: switch on/off and function test
11 Two red push-buttons for load
(DSP 5B without buttons)
12 Handgear
13 Beltclip
14 Connecting line
15 Protection cap for test electrodes
Symbols on the instrument
Attention! Observe user instructions!
Indicates EC conformity
TR
On-time at highest nominal voltage
on
RT
Recovery time after tests with highest nominal voltage
off
Device for live working
Push-button (switched)
This devices may not be disposed with the domestic
waste (WEEE 2012/19/EU).
Please contact service@tietzsch.de in regard to the return
of old devices.
18
4 5
15
6
7
8
11
at the rear
12
13
at the rear
