_ USING THE RAIN COVER

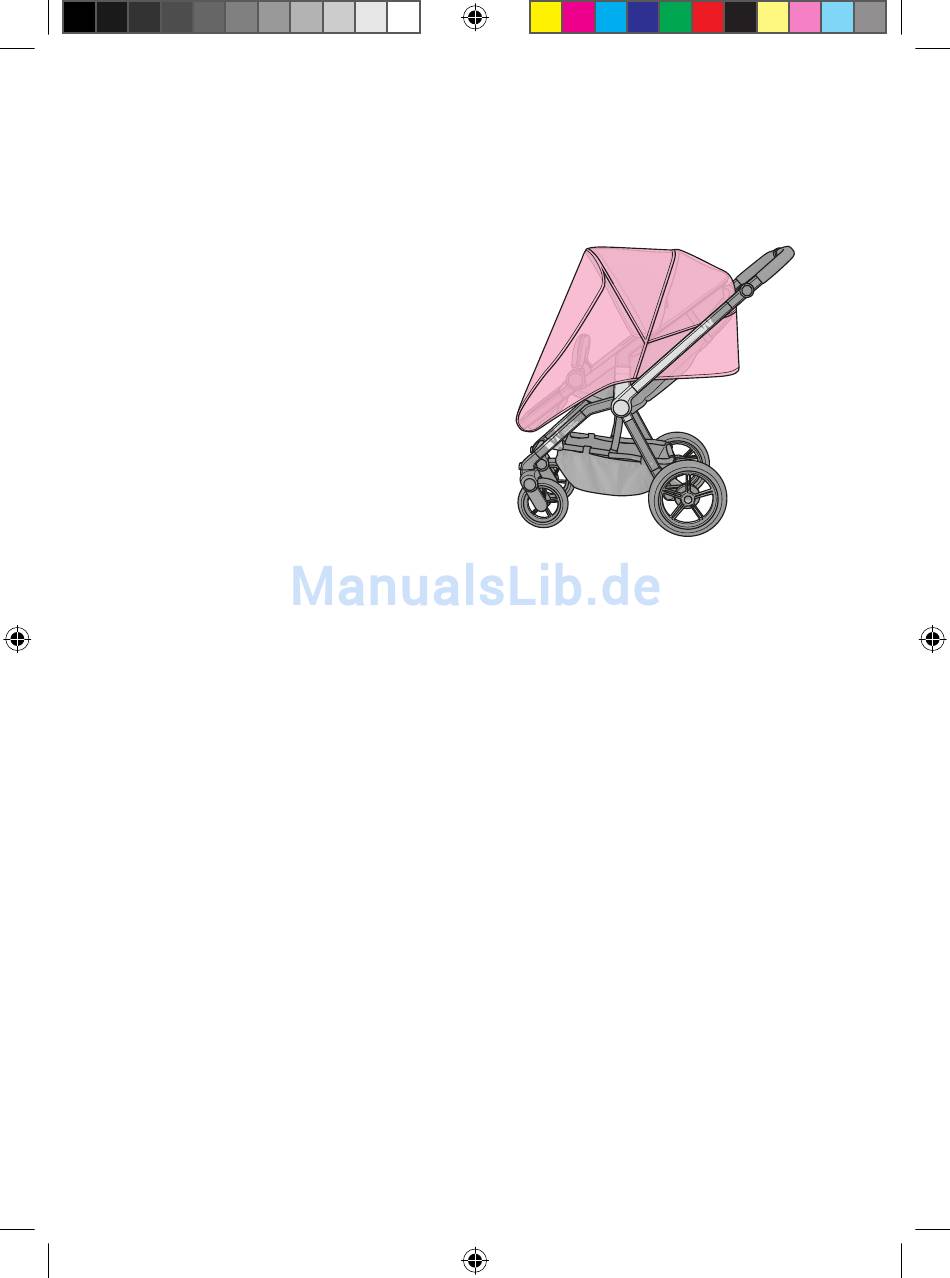

To use the rain cover, pull the cover
down from top to bottom over the
seat frame.
Please ensure the rain cover is
completely dry before replacing the
cover in the storage bag!
_ FITTING, REMOVING AND CLEANING THE
STROLLER COVER
Note: the footrest (09) must be moved into its upright position before
removing or attaching the cover!
The individual parts of the CONCORD WANDERER's cover are connected
together and secured to the tube frame using press studs and Velcro
fasteners. To remove the cover, first undo all of these fasteners and thread
the cover out of the Keder rail, starting with the cover near the footrest.
Before washing the cover, thread the saftey harness straps out of the plastic
eyelets and remove the harness buckle. Remove the back plate from the
closable bag on the rear of the cover.
38
