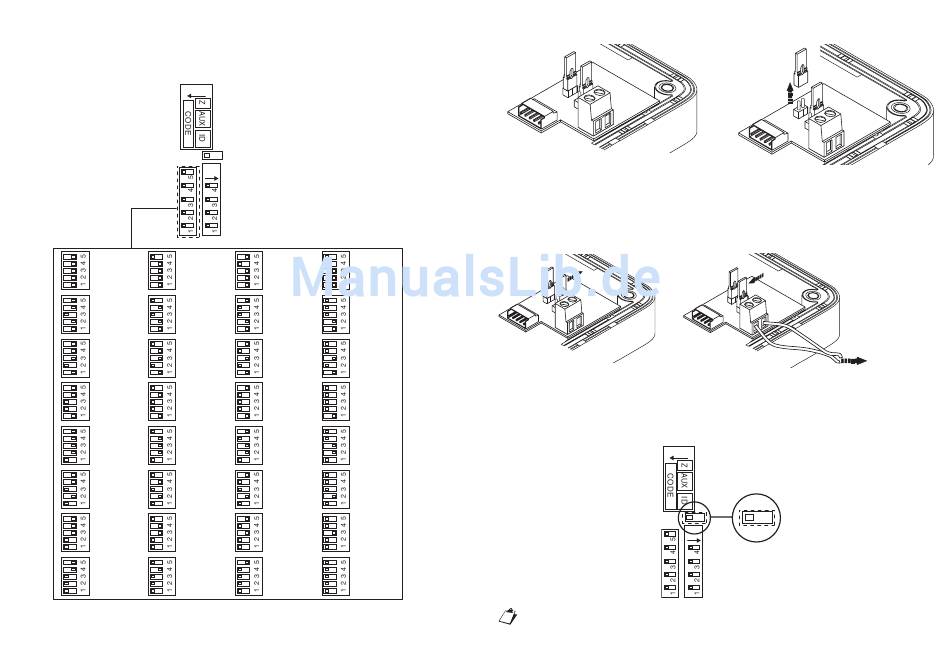

CODE: fi rst button user code.
The door unit can call user columns with sequential codes. The fi rst call button calls the user whose
code is identifi ed by the CODE dip switch. The second button calls the user whose code is CODE+1
and so on. You will only need to defi ne the last user in column if the free door opener function
is used (dip-switch AUX) (see "Optional programming for additional functions"). The columns
of users which can be called from secondary calling stations must be discriminated.
CODE= 0 CODE= 1
CODE= 4 CODE= 5
CODE= 8 CODE= 9
CODE= 12 CODE= 13
CODE= 16 CODE= 17
CODE= 20 CODE= 21
CODE= 24 CODE= 25
CODE= 28 CODE= 29
12
ON
CODE= 2 CODE= 3
CODE= 6 CODE= 7
CODE= 10 CODE= 11
CODE= 14 CODE= 15
CODE= 18 CODE= 19
CODE= 22 CODE= 23
CODE= 26 CODE= 27
CODE= 30 CODE= 31
BUTTONS: Button model on panel.
Jumper inserted to make small button panels
Ref. 1128/1 (default).
NAME TAG LIGHT LEDS POWER
To power the name tag light LEDs with supplementary power in addition to system power, use a
Ref.9000/230 transformer for each panel and position the second jumper according.
Jumper in position 1:
no external power (default).
LINE TERMINAL SETTINGS
A line terminal switch (Z) is fi tted in door units. Activate the terminal in all devices wired at the end of a line
which does not restart with another section from the device terminals (end of line).
Door units cannot be connected in in-out mode. The line terminal must therefore always be in the "ON"
position (default position).
DS1082-017B DS1082-017B
Jumper not inserted to make large button panels
Ref. 1128/2.
Jumper in position 2:
external power.
ON
Ref. 9000/230
