Amprobe ACDC-100 TRMS Bedienungshandbuch Seite 4

3

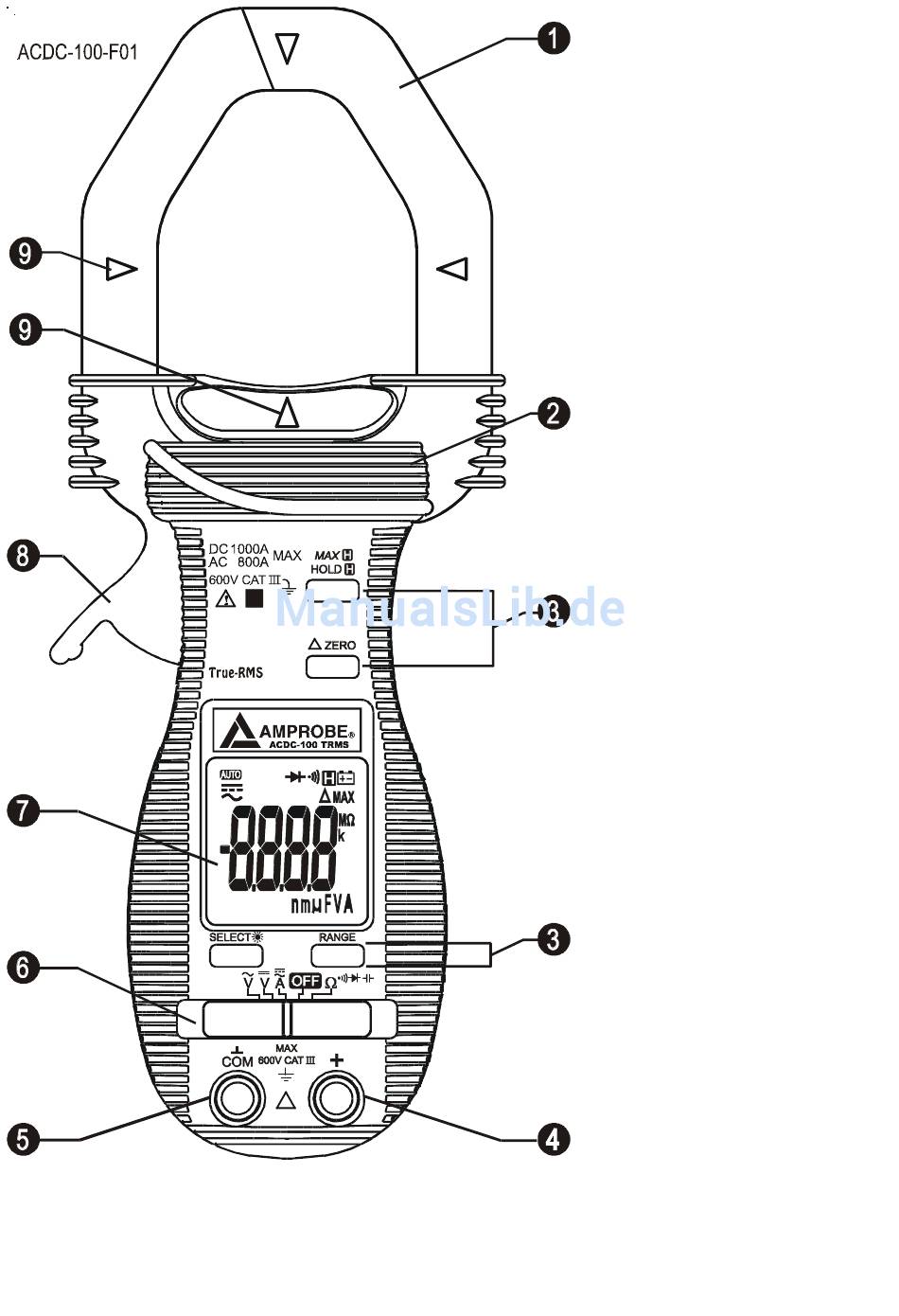

➊
hall-effect Clamp Jaw
for AC & DC current
electric field pick up
➋
hand/finger Barrier
to indicate the limits
of safe access of
the meter during
measurement
➌
push-buttons for
special functions &
features
➍
input Jack for all
functions exCepT non-
invasive ACA & DCA
current functions
➎
Common (ground
reference) input
Jack for all functions
exCepT non-invasive
ACA & DCA current
functions
➏
Slide-switch Selector
to turn the power
on/off and Select a
function
➐
3-3/4 digits 4000
counts lCD display
➑
Jaw trigger for
opening the clamp jaw
➒
Jaw center indicators,
at where best ACA
& DCA accuracy is
specified
