• Place the charging unit on a level surface.
• Fasten it to the mounting site with 3 screws - tightening torque 1.5 Nm.

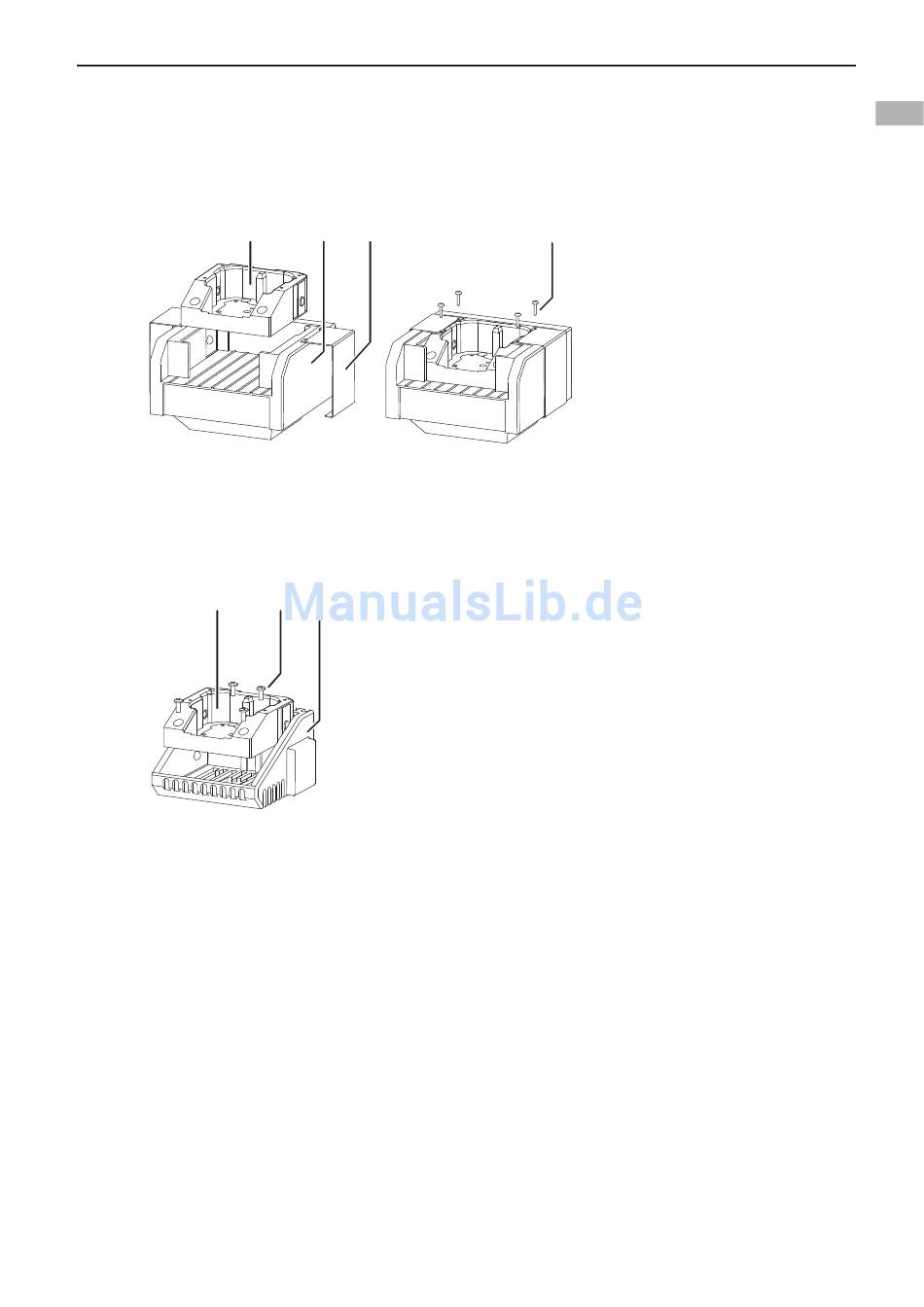

7.2.2 Assembly of the adapter in third-party charging units

LS230
1
• Insert the adapter into the charging unit.
• Slide the holders onto the charging unit.
• Fasten the adapter by tightening the screws - tightening torque 0.5 Nm.
LS12/24
1
• Insert the adapter into the charging unit.
• Fasten the adapter by tightening the screws - tightening torque 0.5 Nm.
FM074342
2014-07-21·BA00·III·en·03
2 3
2 3
1 Adapter
2 Screws for adapter (Torx 10)
(included in the delivery)
3 Adapter for third-party charging units LS12/24
14944E00
Mounting and installation
4
1 Adapter
2 Adapter for third-party
charging units LS230
3 Holder
4 Screws for holder
(Torx 10)
14943E00
Portable Lamp
HSE 7 LED / LS 7 LED
