Mounting / Dismounting, Operating Position - Eisemann HSE 7 LED Betriebsanleitung

Mounting and installation
EN
7.2

Mounting / dismounting, operating position

EN
EN
EN
EN
EN
7.2.1 Charging Unit Assembly
EN
EN
EN
EN
EN
Wall mounting
EN
EN
EN
EN
EN
EN
EN
EN
EN
EN
EN
EN
EN
EN
Table mounting
10
Portable Lamp
HSE 7 LED / LS 7 LED
Danger when used in hazardous areas!
The explosion protection is impaired!
• Use the charging unit in safe areas only.
The assembly site must be level and support the weight.
The screws for mounting the wall bracket are not included in the delivery.
55
WARNING

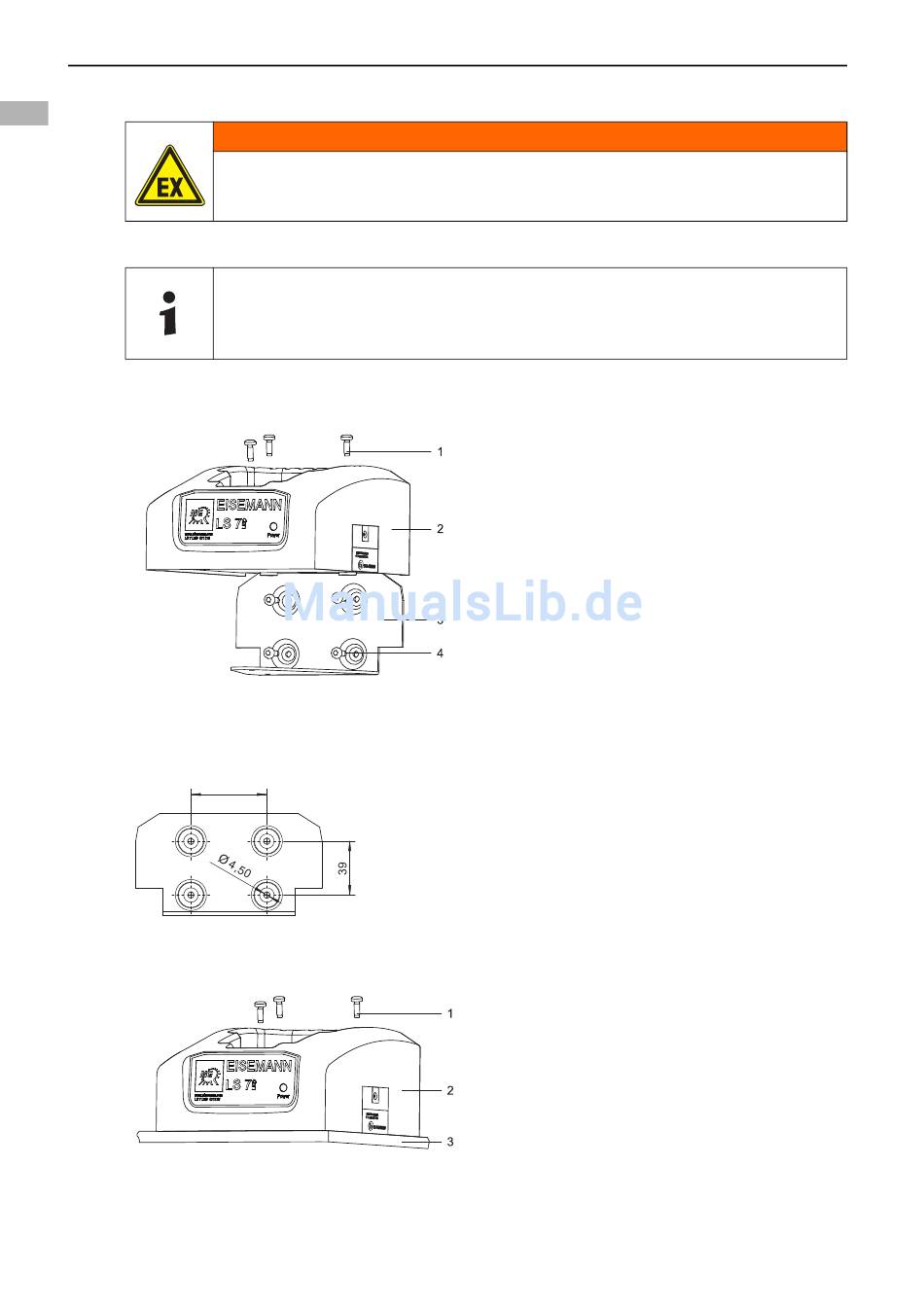

1 Screws for charging unit (Torx 20)
(included in the delivery of the wall
bracket)
2 Charging unit
3 Wall bracket
4 Screws for fastening the wall bracket
(not included in the delivery)
15004E00
• Align the wall bracket horizontally.
• Fasten it to the mounting site with 4
screws
• Slide the charging unit onto the wall
bracket from above.
• Fasten charging unit with the delivered
screws - tightening torque 1.5 Nm.
14771E00
1 Screws for fastening the charg
unit
(not included in the delivery)
2 Charging unit
3 Level surface
15003E00
FM074342
2014-07-21·BA00·III·en·03
