p340
Controller
USB

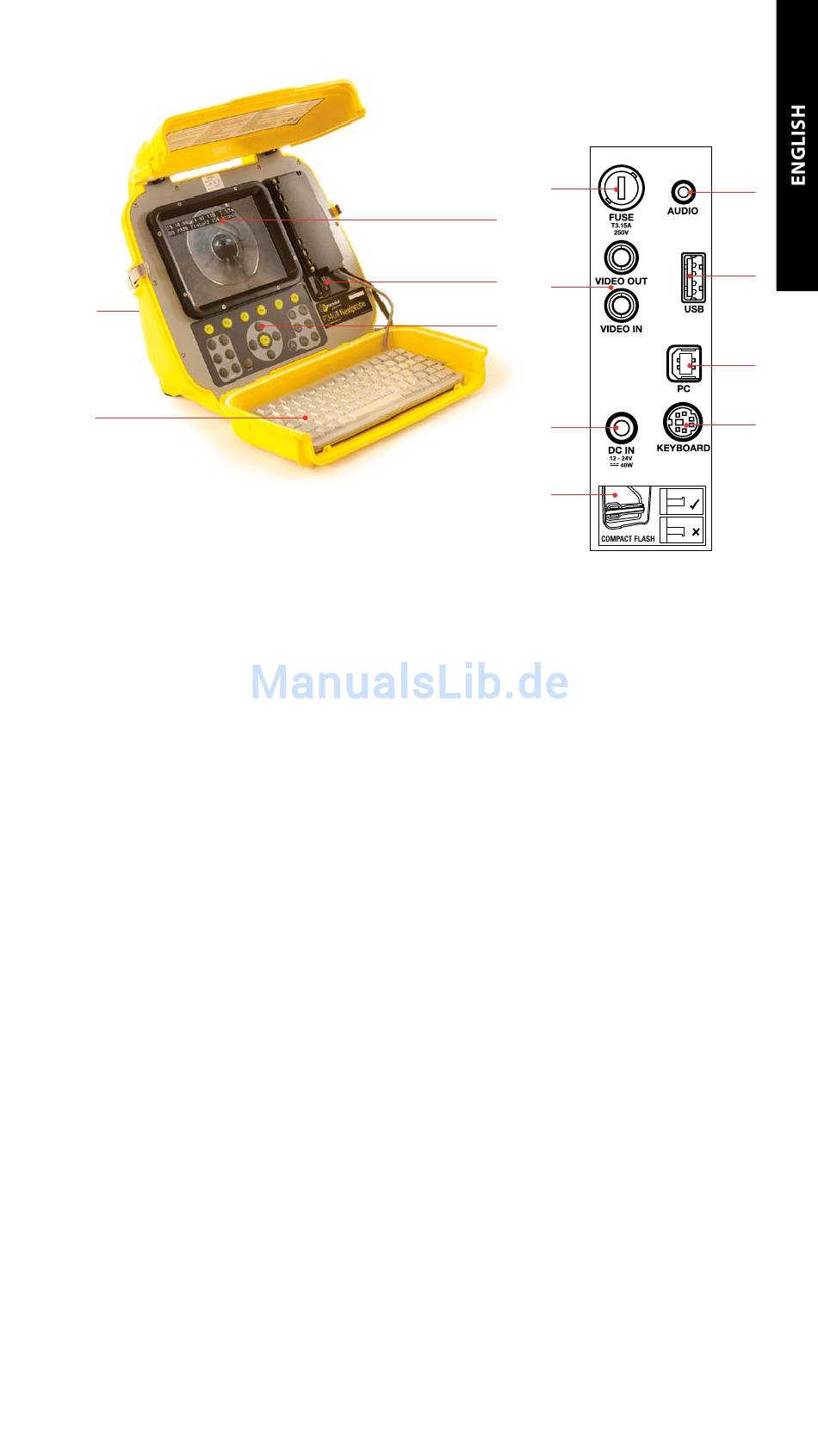

1 On/Off Switch.
2 Keypad and function keys: Allows the operator to select functions
and edit text entries.
3 Keyboard: Provides enhanced text entry capabilities and short-cuts
to access system functions.
4 Display: LCD screen shows image and various on-screen information
such as deployed rod length, operator generated titles, time and date.
5 Link Cable Socket (at rear of unit): Connector for the link cable.
6 Fuse Holder: 5mm x 20mm T3.15A 250V cartridge fuse.
7 RCA Video Jacks: Allows an external composite video source to be
displayed by the P340
P340
video can also be displayed or recorded on an external
USB
device.
8 Power Socket: DC power input from vehicle supply, battery box or
mains adapter.
9 Compact Flash slot: Compact Flash for video recording and later
playback on the controller or PC. Also used for software upgrades
and storing diagnostic log files.
10 Keyboard Socket: Keyboard connector.
11 Audio Socket: Connection for headset using standard 3.5mm
connector.
12 PC socket: Type B USB connection allows file transfers.
13 USB socket: Type A USB connection for USB flash drives. Memory Sticks
can be used video recording and later playback on the controller or PC.
Also used for software upgrades and storing diagnostic log files.
controller or recorded onto Compact Flash.
